2.0 Hardware Description
The Pico Series P900 Modem modules are available as a low cost OEM module. This OEM
version supplies all the required raw signals to allow the unit to be tightly integrated into
applications to efficiently maximize space and power requirements. The Microhard
development board can provide a convenient evaluation platform to test and design with the
module. (Contact Microhard Systems for details)
Any P900 Series module may be configured as a Primary Coordinator, Secondary
Coordinator, Standby Coordinator or Remote in a Mesh Topology, or a Master, Repeater or
Remote in a PP or PMP Topology. This versatility is very convenient from a ’sparing’
perspective, as well for convenience in becoming familiar and proficient with using the
module: if you are familiar with one unit, you will be familiar with all units.

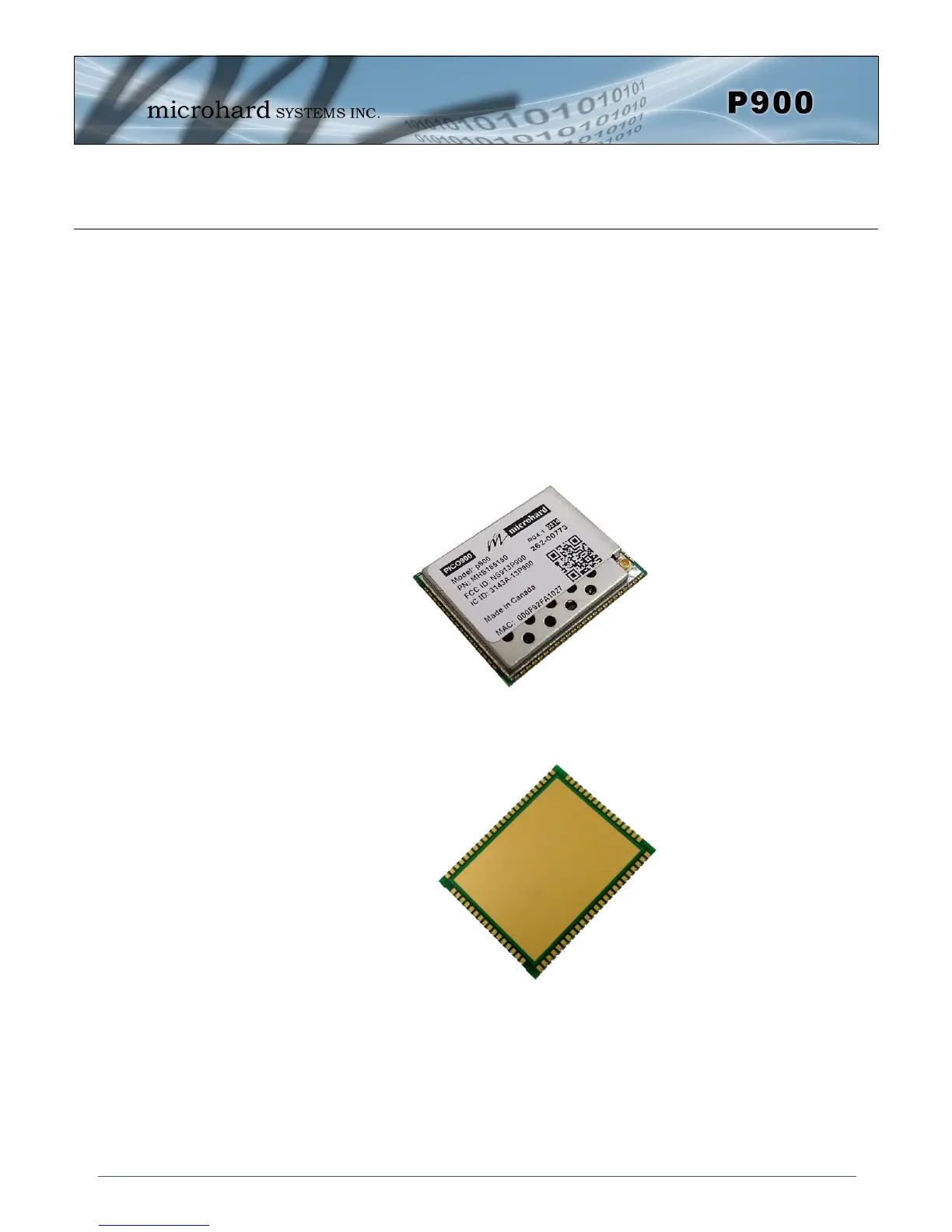

Image 2-1: Pico P900 Top View
Image 2-2: Pico P900 Bottom View
