2.0 Hardware Description
2.6 P900 Enclosed
The Pico Enclosed provides a standalone P900 with standard interfaces for Data, Power and
Antennas. The P900 Enclosed is ideal for base stations or applications where complicated
integration of the OEM module is not required, but a modem with a small footprint is still
required. The P900 Enclosed can also be used to quickly evaluate the features and
performance of the P900 modems.
The P900 Enclosed provides quick access to several of the interfaces of the P900, such as:
 Input Power (9-30VDC)
 Power LED (Blue)
 RS232/RS485 Data Interface
 RSSI LED Indicators (Green)
 TX/RX LED Indicators (Red/Green)
 CONFIG Button
 Antenna
 USB Port (Diagnostic Port)
 I/O pins (Future Development)

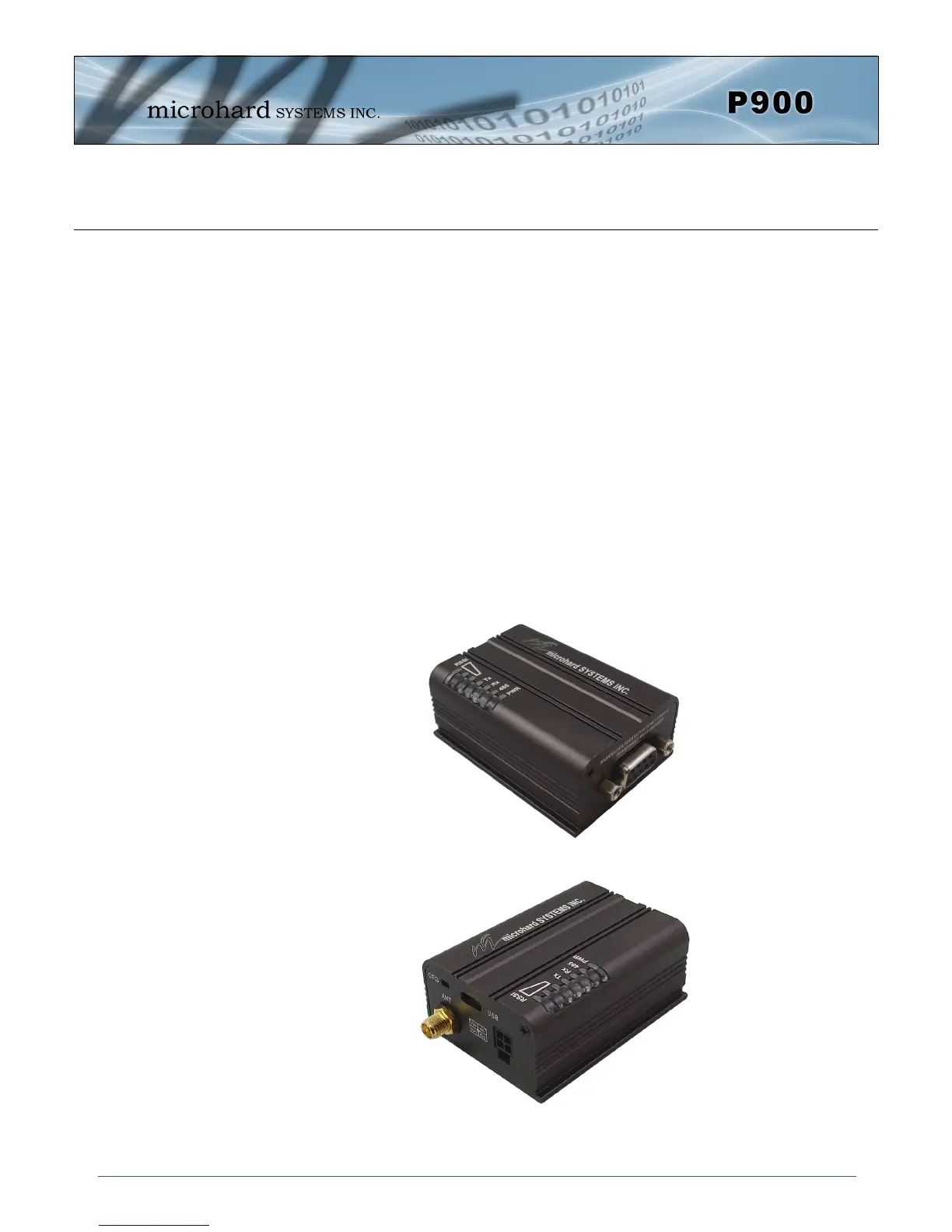

Image 2-4: P900 Enclosed
