2.0 Hardware Description
2.6.2 P900 Enclosed Mounting Bracket (Order Option)

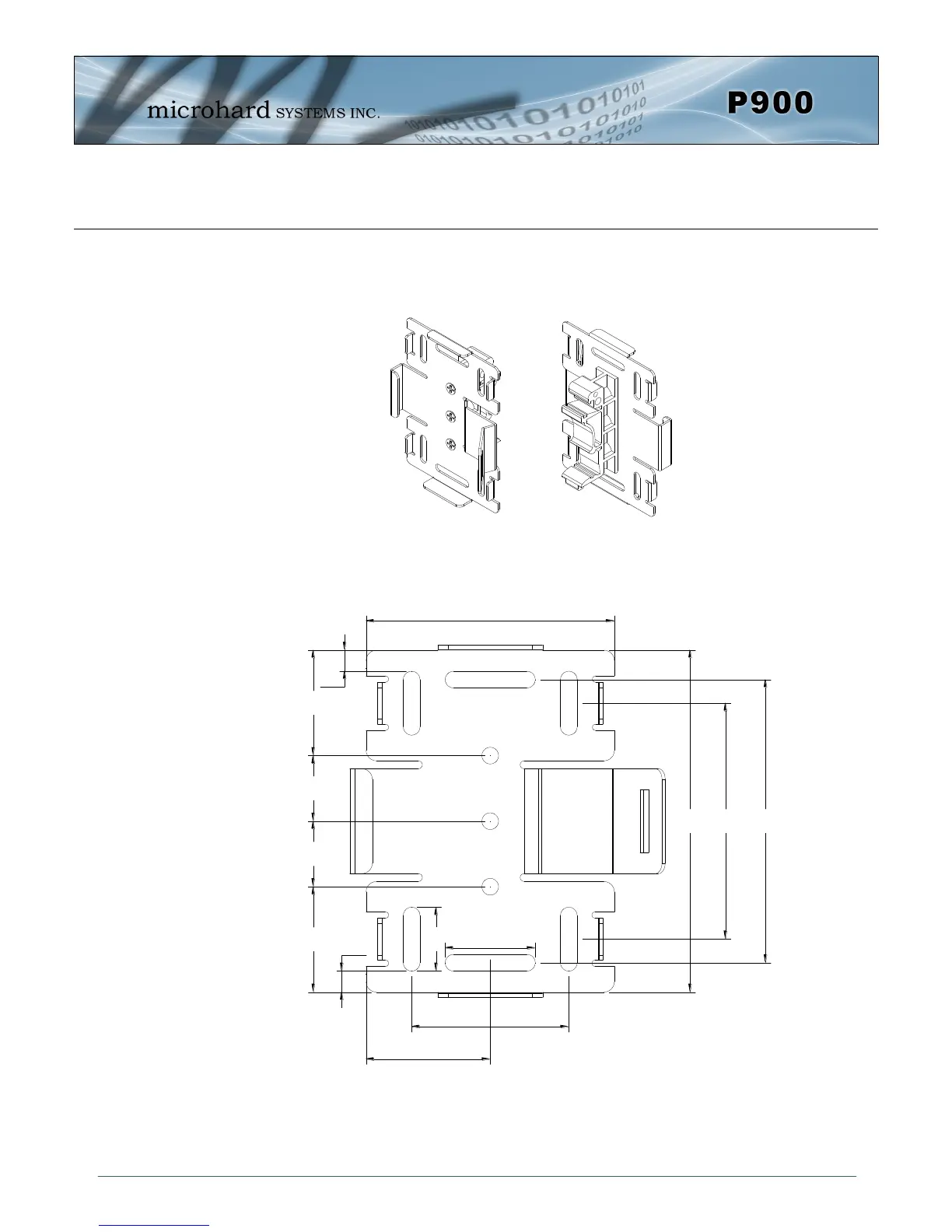

Drawing 2-10: P900 –ENC Mounting Bracket Front/Rear (Shown optional TS35 DIN Rail Mount)
Notes: The dimension unit is mm.
12.5
12.5
20.1
23.7
4.0
4.0
12.2
17.2
65.2
47.4
45.0
30.0
54.0
20.1
Drawing 2-11: P900 –ENC Mounting Bracket Top View
