Microhard Systems P900 - Recommended Solder Mask (Pad Landing)

© Microhard Systems Inc. Confidential 14
1.27
0.81
1.83
2.0 Hardware Description
2.1.1 Recommended Solder Mask (Pad Landing)

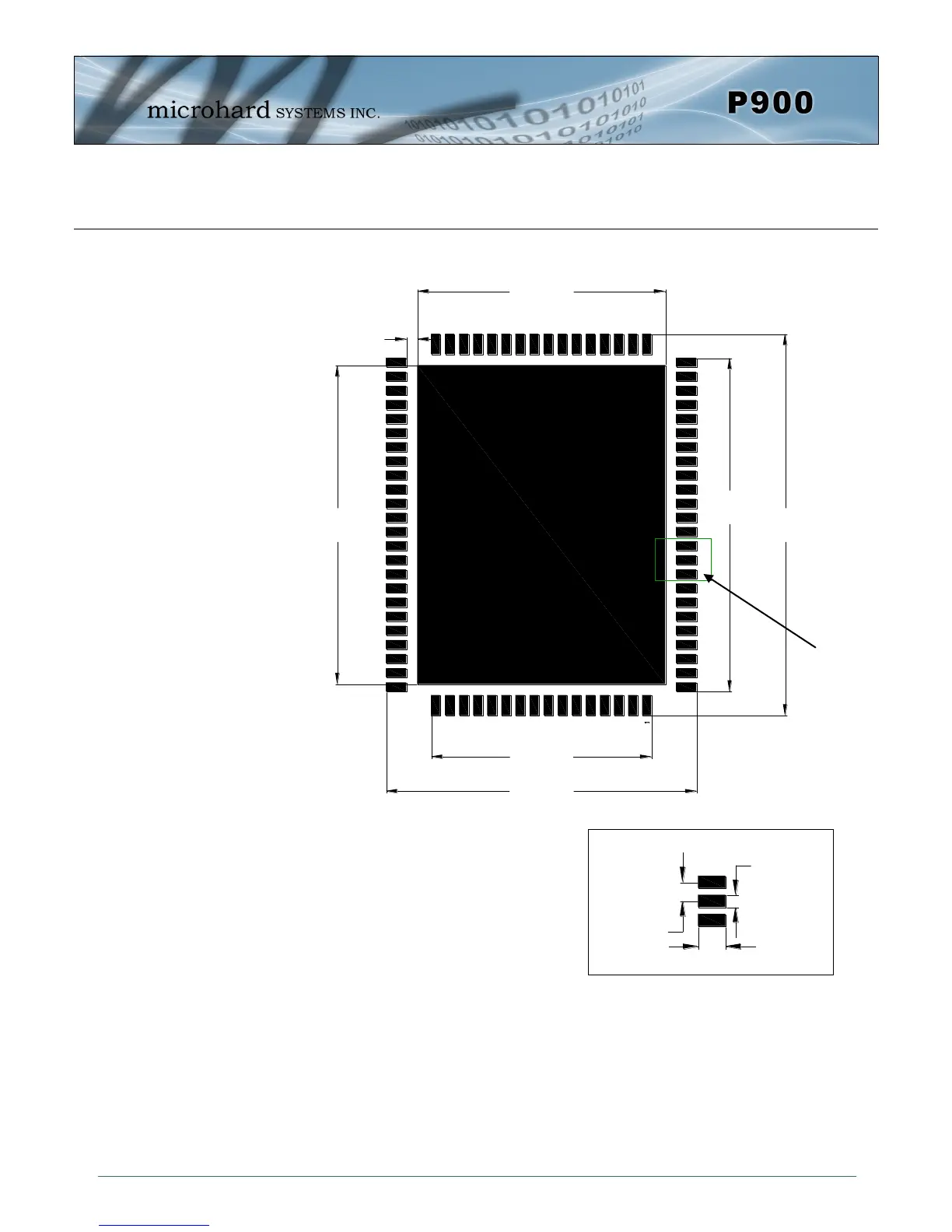

Drawing 2-2: P900 Recommended Solder Mask
Units: millimeters
Detail
(B)
22.35
30.02
0.99
19.86
28.70
27.99
34.34
Detail
(B)
