5.0 Point to Multipoint Configuration
A Slave (Remote) is a endpoint or node within a network to which a local serial device is attached.
Communicates with Master either directly or through one or more Repeaters.
Units can be configured to perform the various roles discussed by setting register S101 as follows:
ATS101 = 0 - Master
ATS101 = 1 - Repeater
ATS101 = 2 - Slave (Remote)
The next section discussed using Factory Default commands to configure the various types of units that
are available in a Point to Multipoint network, simplifying the configuration process.

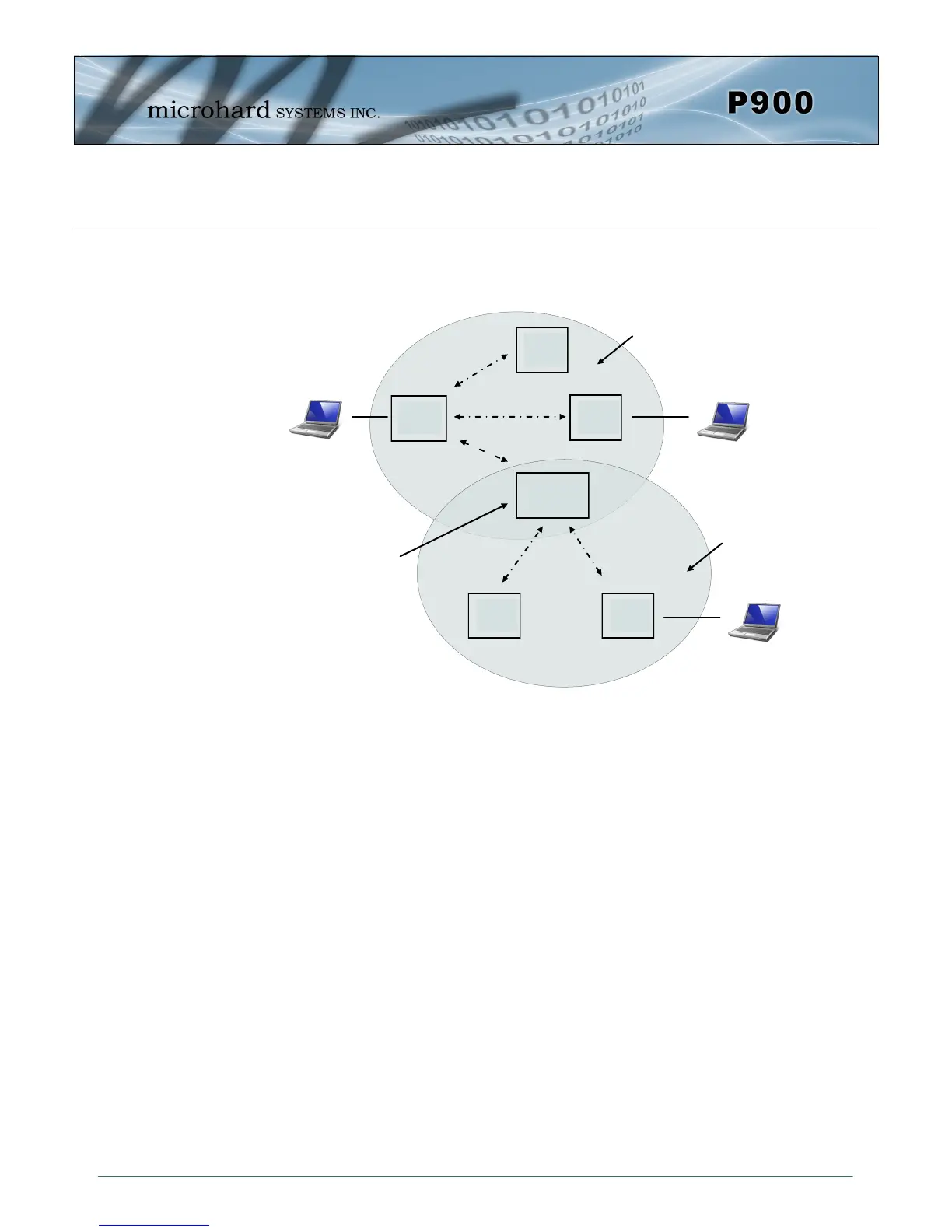

Drawing 5-4: Point to Multipoint Slave
Slave
Repeater
Master
Slave
Repeater
Slave
Slave Slave
Slave
