Midas M32 User Manual

30 M32 - Digital Console User Manual 31

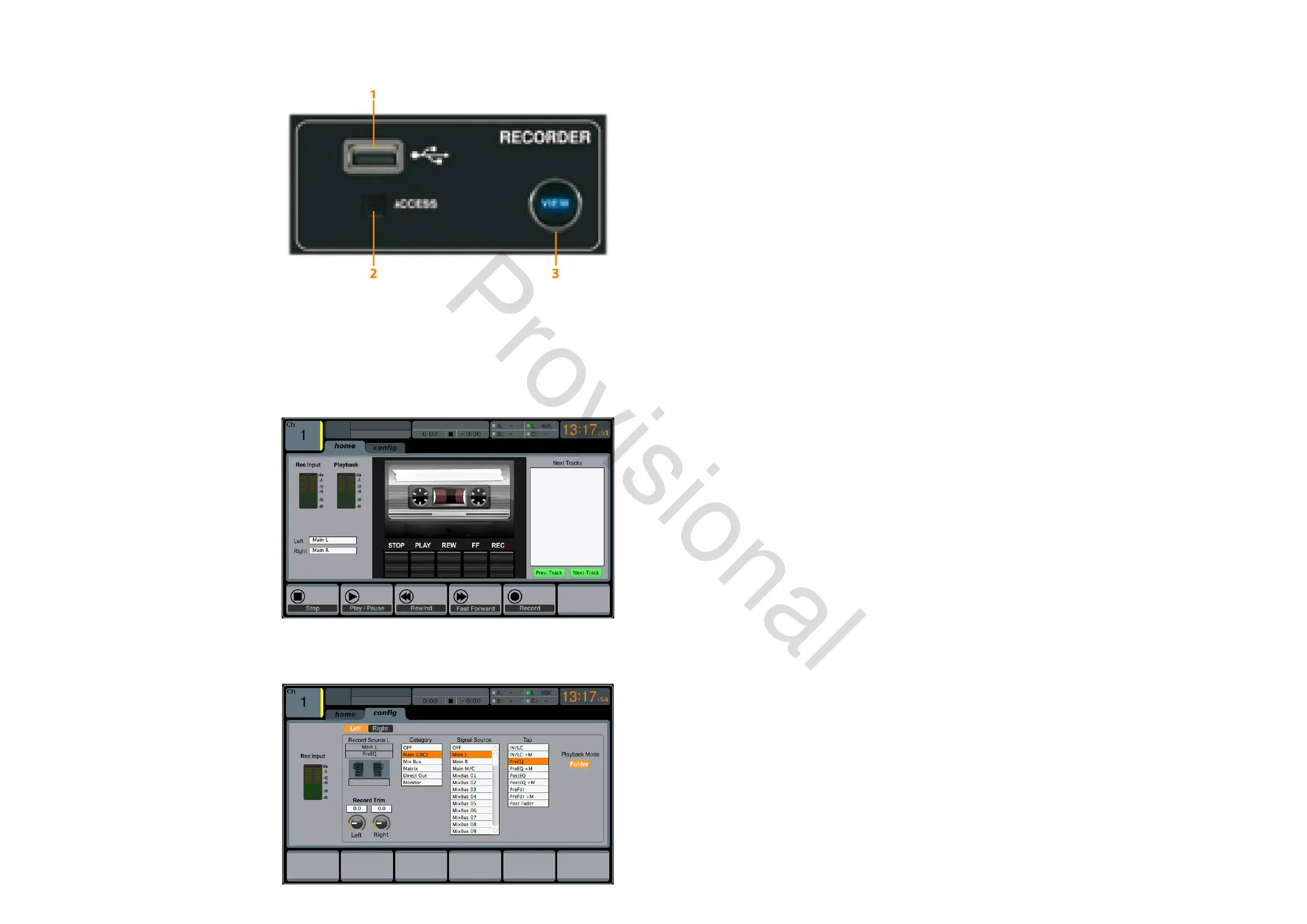

RECORDER
USB Port
Connect a USB stick to install rmware updates and
to record performances.
ACCESS
The ACCESS LED illuminates to indicate that a USB
stick is in place and is being written to or read from.
VIEW
Press the VIEW button to open the USB Recorder
pages on the Main Display.
Operation
The M32 oers functionality for playing back un-
compressed stereo WAV les, and for recording any
available signal in the console directly onto USB
stick or compatible USB hard drive.
To record to a USB stick, perform the following
steps:
1. Plug a FAT-formatted (FAT12, FAT16,
FAT32) USB stick into the USB port as
illustrated above.
2. Press the VIEW button in the RECORDER
panel. This will then display a graphic
representation of an analogue tape deck
on the Main Display home tab.
3. On the cong tab you can select the
source of the recording , the default being
the main L & R outputs.
4. Press the fth rotary control, labelled
Record.
5. To adjust the volume during playback,
press the AUX IN/USB button next to
the input channel faders, and adjust the
volume using AUX faders 7 & 8.
1. USB Port
2. Access LED
3. View Button
Provisional
www.theaudiospecialists.eu

Midas M32 Specifications

General

Channels	40
Outputs	16 x XLR
Faders	25
Sample Rate	48 khz
Type	Digital
Talkback	1 x XLR
A/D Resolution	24-bit
Dynamic Processing	Yes
Control Surface	Yes
Effects	8 stereo effects processors
EQ	4-band
Display	7" TFT
Connectivity	Ethernet, USB
Inputs - Other	6 x Aux
Outputs - Main	2 x XLR
Outputs - Other	6 Aux, 2 FX
Data I/O	Ethernet, AES50
USB	1 x Type B
Computer Connectivity	USB, Ethernet
I/O Expansion Slots	1 x Expansion Slot
MIDI I/O	In/Out
Word Clock	In/Out
Depth	490 mm
Weight	15 kg
USB Audio Interface	32-in/32-out
Network Audio	AES50
Dimensions	760 x 168 x 490 mm
Inputs	32 x XLR/TRS combo
