46 M32 - Digital Console User Manual 47

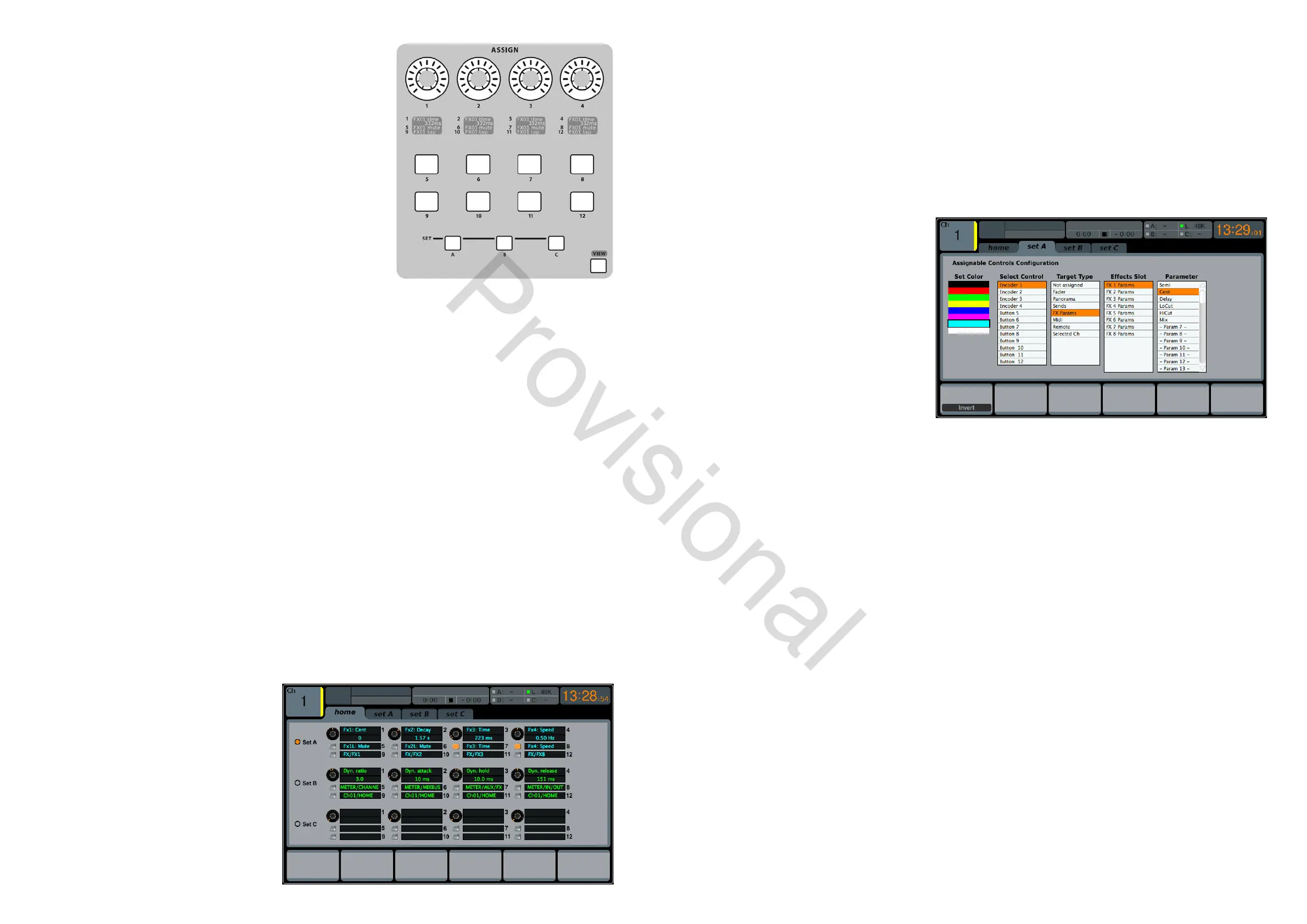

Assign
Rotary Controls 1-4
Assign the four rotary controls to various parameters for instant access to
commonly used functions. Details can be found on the Main Display by
pressing the VIEW button (see below).
Assign LCD Displays
These displays provide quick reference to the assignments of the active
layer of custom controls.
Group Select Buttons 5-12
Assign the eight buttons to various parameters for instant access to com-
monly used functions. Details can be found on the Main Display by pressing the VIEW button (see below).
SET Buttons A, B, C
Press one of these buttons to activate one of the three layers of custom-assignable controls.
VIEW
This gives you more detailed access to the ASSIGN functions via the Main Display.
The ASSIGN screen allows setup for the four user-assignable rotary controls and the eight user-assignable buttons. Using
this screen the console operator can assign three sets of 12 custom controls to be available for adjustment at all times.
The ASSIGN screen contains the following separate tabs:
home: This screen provides a general overview of the 12 assigned controls for all three control sets at the same
time.
set A: This screen allows assignment of dierent console parameters to the 12 custom controls for Set A.
set B: Works as described above, but for custom controls Set B
set C: Works as described above, but for custom controls Set C
HOME
The ASSIGN screen’s home tab provides a visual overview of the 12 assigned controls for all three sets at the same time.
The home tab oers visual feedback of the
controls that have been assigned to all three
sets of custom controls, without having to bank
between the three sets one-by-one, or relying on
abbreviated syntax shown in the custom control’s
dedicated LCD displays.
To adjust the various settings on the home tab,
perform the following steps:
1. Turn any of the rotary controls 1-5 to move
screen focus to dierent custom-assignable
rotary controls and buttons in the A, B and C sets. The controls currently selected with each of the four rotary controls
are highlighted with an orange outline.
2. Tap any of the rotary controls 1-5 to switch to the edit screen for the specic custom control that was highlighted on
the home tab screen.
SET A, B & C
The set A, B & C tabs allow mapping of specic console parameters to the eight assignable buttons and four assignable
rotary controls. Using these screens the user can map the exact parameters that are most useful to them to the desired
controls, in the desired order.
To adjust the various settings on the set A, B & C
tabs, perform the following steps:
1. Adjust the rst rotary control to select the col-
our used for the LCD screens within that set.
2. Adjust the second rotary control to select to
which of the 12 assignable controls in the
appropriate set you wish to map a parameter.
3. Adjust the third rotary control to scroll
through a list of parameter categories to
which the selected assignable control can be
mapped. Choices for the buttons include:
• Not Assigned
• Jump to Page
• Mute Channel
• Inserts
• Eect Button
• MIDI
• Remote.
Choices for the rotary controls include:
• Not Assigned
• Panorama
• Sends
• Dynamics
• FX Parameters
• MIDI
• Remote.
4. Tap the third rotary control to assign the selected parameter.
5. Adjust the fourth rotary control to scroll through a list of parameters that can be mapped to the currently-selected
assignable control.
6. Tap the fourth rotary control to assign the selected parameter.
7. Adjust the fth rotary control to select from additional parameters that can be mapped to the assignable controls.
