Midas M32 User Manual

112 M32 - Digital Console User Manual 113

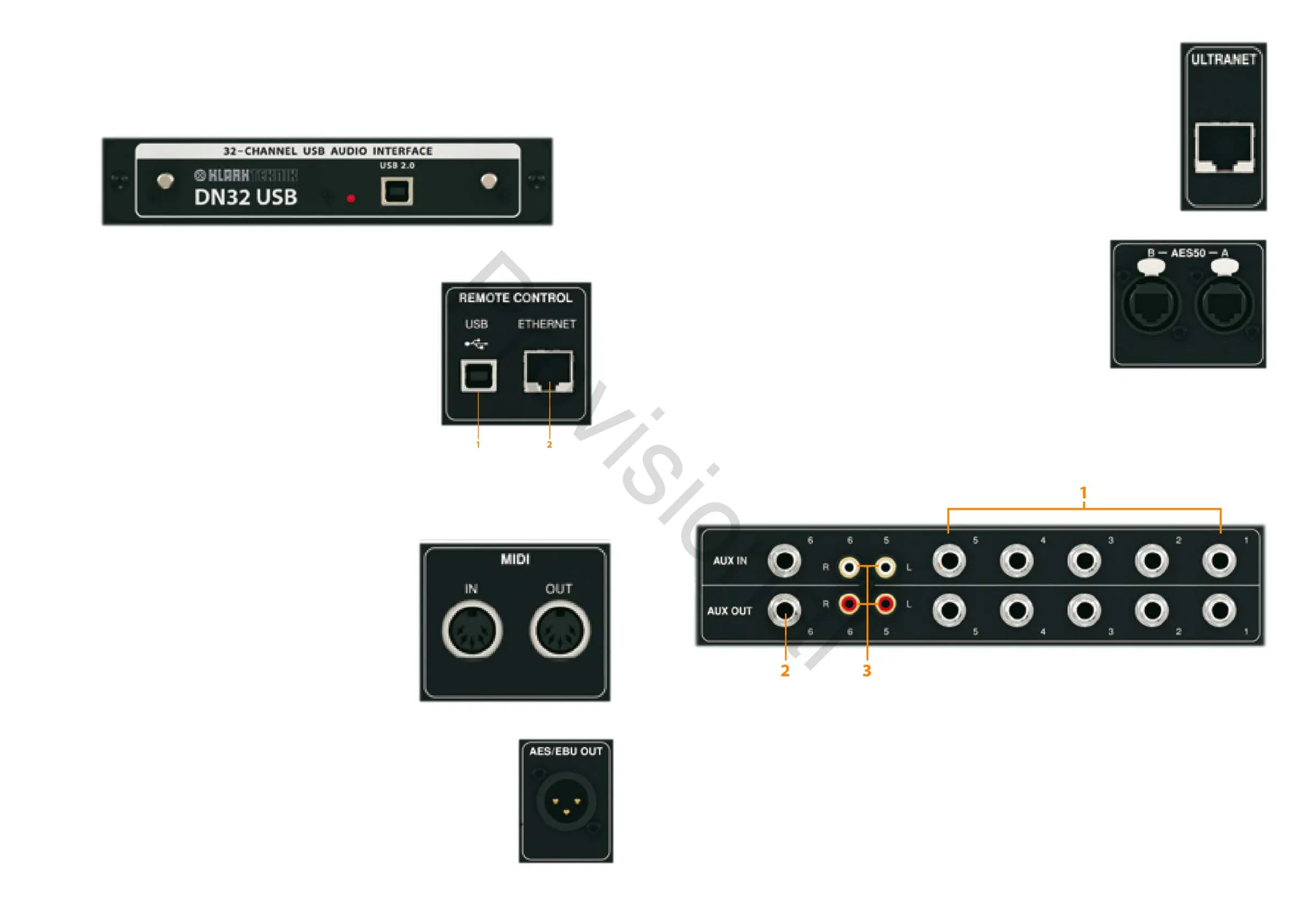

KLARK TEKNIK DN32-USB
DN32 USB
Transmit up to 32 channels of audio to and from a computer using the DN32 USB audio interface.
REMOTE CONTROL
USB
Connect to a PC for remote control operation via USB.
ETHERNET
Connect to a PC for remote control operation via Ethernet.
1. USB Port
2. Ethernet Port
MIDI
MIDI IN / OUT
Send and receive MIDI information via standard 5-pin DIN cables.
AES / EBU OUT
Send digital audio via 3-pin AES/EBU XLR cable.
ULTRANET
Connect to a personal monitoring system (e.g. the Behringer P16) via Ethernet cable.
AES50
Transmit up to 96 channels in and out via Ethernet cables.
AUX IN / OUT
Connect to and from external equipment via ¼” or RCA cables.
1. AUX In / Out 1-5
2. Phono In / Out 5-6
3. AUX In / Out 6
Provisional
www.theaudiospecialists.eu

Midas M32 Specifications

General

Channels	40
Outputs	16 x XLR
Faders	25
Sample Rate	48 khz
Type	Digital
Talkback	1 x XLR
A/D Resolution	24-bit
Dynamic Processing	Yes
Control Surface	Yes
Effects	8 stereo effects processors
EQ	4-band
Display	7" TFT
Connectivity	Ethernet, USB
Inputs - Other	6 x Aux
Outputs - Main	2 x XLR
Outputs - Other	6 Aux, 2 FX
Data I/O	Ethernet, AES50
USB	1 x Type B
Computer Connectivity	USB, Ethernet
I/O Expansion Slots	1 x Expansion Slot
MIDI I/O	In/Out
Word Clock	In/Out
Depth	490 mm
Weight	15 kg
USB Audio Interface	32-in/32-out
Network Audio	AES50
Dimensions	760 x 168 x 490 mm
Inputs	32 x XLR/TRS combo
