Midas M32 User Manual

22 M32 - Digital Console User Manual 23
Cong/Preamp
GAIN Rotary Control
On a microphone preamplier, input gain varies the amount of amplication applied to the microphone. Adjust the
preamp gain for the selected channel with the GAIN rotary control.
LED Display
The LED display in the Cong/Preamp section illustrates the signal input level for the selected channel. This is shown as
a value between 0 dB and -30 dB. When there is a signal present, but below -30 dB, the SIG LED is lit. When the signal
exceeds 0 dB the CLIP LED illuminates.
Please note that, when pressing the VIEW button, the signal input level displayed on the Main Display shows a value of
between 0 dB and -60 dB.
FREQUENCY Rotary Control
The FREQUENCY rotary control selects the frequency at which the low cut lter begins to lter unwanted frequencies for
the selected channel. The lter is engaged by pressing the LOW CUT button (see below).
Please note that the low cut lter is only available for the 32 primary input channels.
48V
Phantom power is a method for transmitting DC electric power through microphone cables to operate microphones that
contain active electronic circuitry. It is most commonly used with condenser microphones, though many active direct box-
es also use it. The technique is also used in other applications where power supply and signal communication take place
over the same wires. Press the 48V button to apply phantom power on the selected channel’s physical input.
Ø
An audio signal’s ‘phase’ refers to its position in a point of time along the waveform cycle, with each cycle being 360°. Press

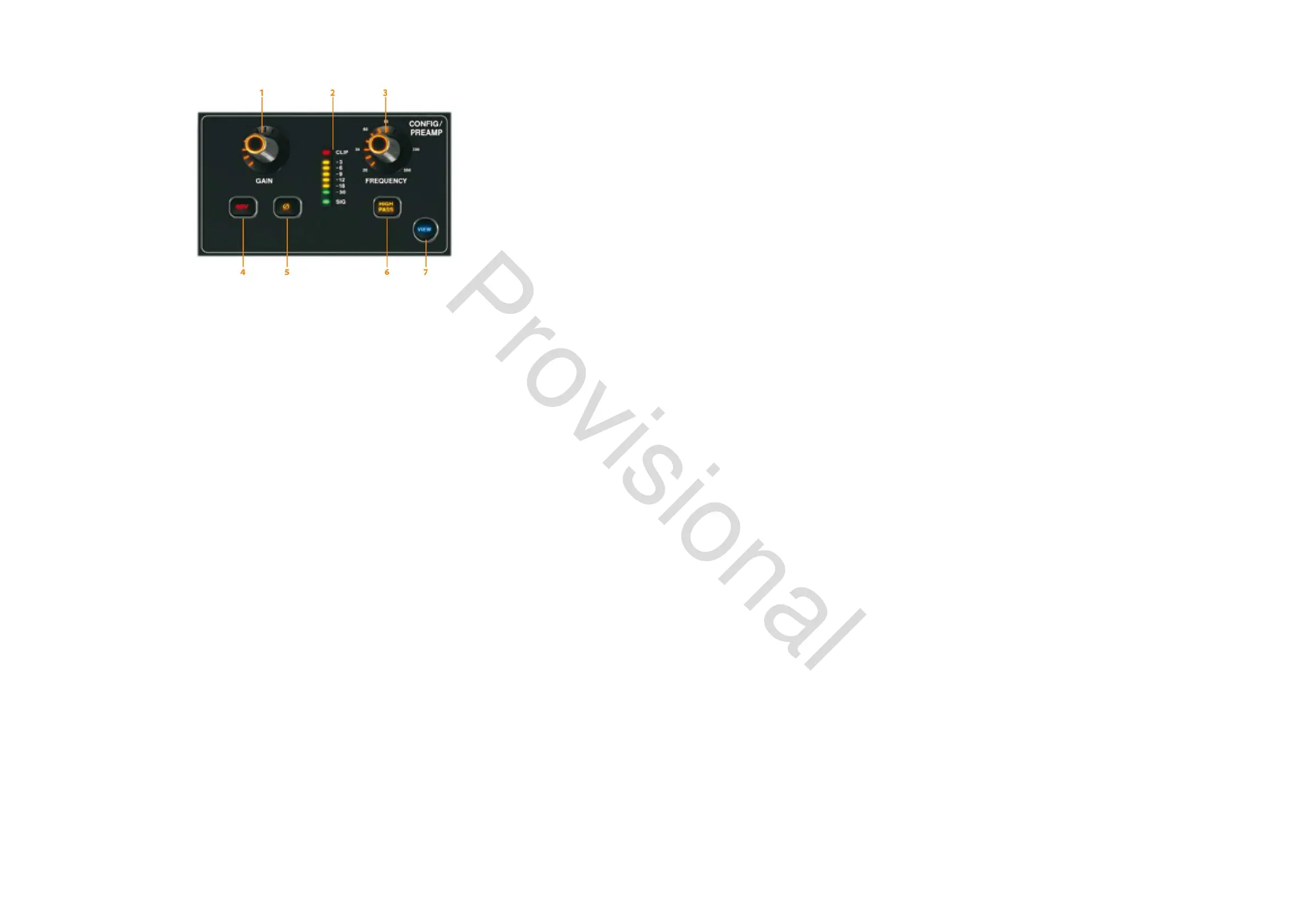

1. Gain Rotary Control
2. LED Display
3. Frequency Rotary Control
4. 48 V - Phantom Power
5. Ø - Phase Shift
6. Low Cut Filter
7. View Button
the Ø button to reverse the selected channel’s phase by 180°. This can be useful when using the reverse phase function to
cancel noise across more than one channel.
LOW CUT
Press the LOW CUT button to engage the low cut lter for the selected channel.
Please note that the low cut lter is only available for the 32 primary input channels.
VIEW
Press the VIEW button to access more detailed parameters on the Main Display. See the section Main Display - cong for
more details.
Provisional
www.theaudiospecialists.eu

Midas M32 Specifications

General

Channels	40
Outputs	16 x XLR
Faders	25
Sample Rate	48 khz
Type	Digital
Talkback	1 x XLR
A/D Resolution	24-bit
Dynamic Processing	Yes
Control Surface	Yes
Effects	8 stereo effects processors
EQ	4-band
Display	7" TFT
Connectivity	Ethernet, USB
Inputs - Other	6 x Aux
Outputs - Main	2 x XLR
Outputs - Other	6 Aux, 2 FX
Data I/O	Ethernet, AES50
USB	1 x Type B
Computer Connectivity	USB, Ethernet
I/O Expansion Slots	1 x Expansion Slot
MIDI I/O	In/Out
Word Clock	In/Out
Depth	490 mm
Weight	15 kg
USB Audio Interface	32-in/32-out
Network Audio	AES50
Dimensions	760 x 168 x 490 mm
Inputs	32 x XLR/TRS combo
