Midmark VetPro - Page 103

VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
100

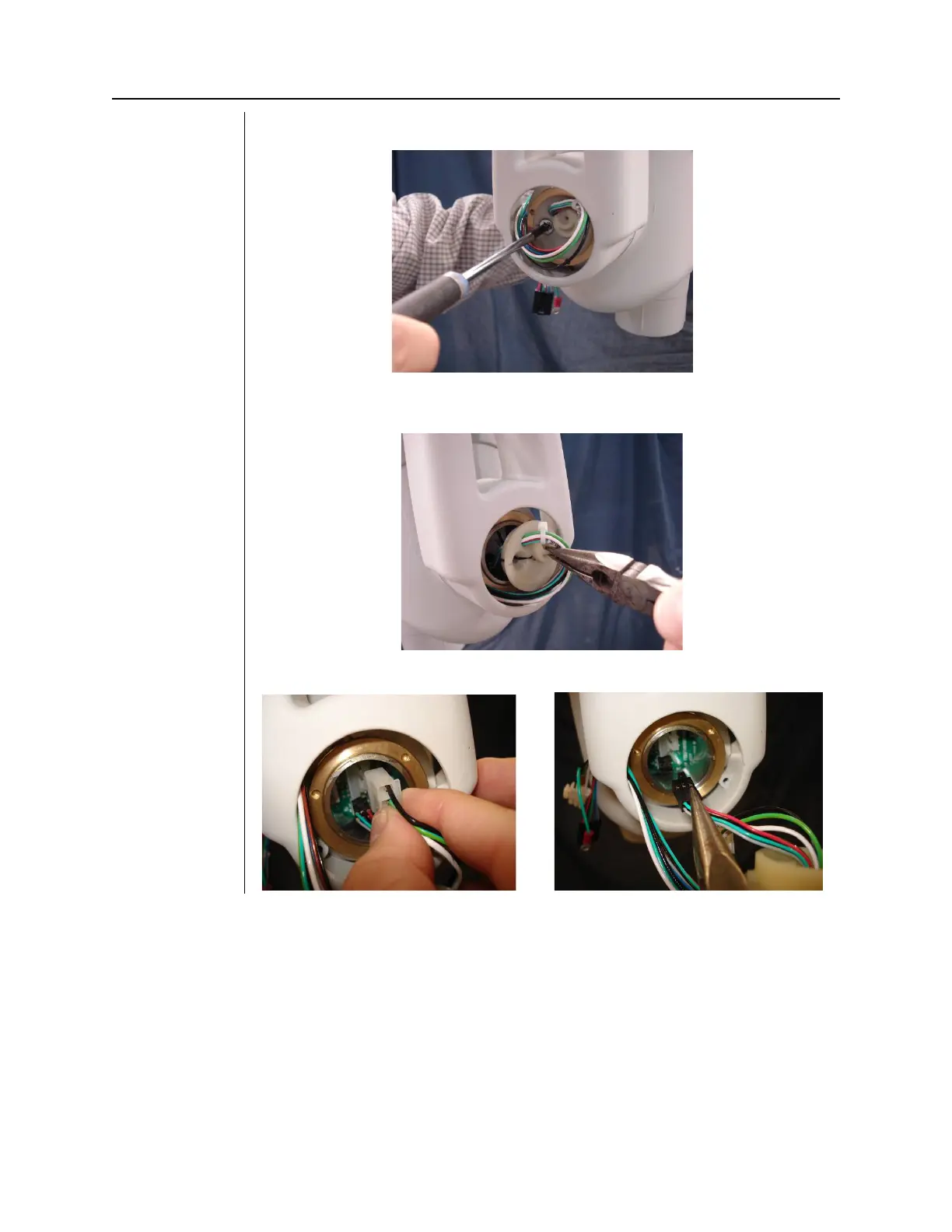

Figure 81
9. Remove the larger Phillips head screw.
Figure 82
10. Remove the larger retaining ring by pulling it out with a pair of needle
nose pliers.
Figure 83
11. Unplug the black and white connectors located inside the tubehead.
