VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
110
Articulating
Arm
Follow this procedure ONLY if the yoke assembly does not stop on its own and
makes contact with the horizontal arm. Refer to Figure 106 while following the
procedure below.
1. Loosen the two set screws highlighted in the figure but do not remove them
completely.
2. Loosen the two straight-slotted screws highlighted in the figure (it shows only
one of the two screws – the other is located on the opposite side of the arm),
but do not remove them completely.
3. Move the articulating arm into the position where you want it to stop before it
makes contact with the horizontal arm.
4. Tighten the two straight-slotted screws.
5. Tighten the two set screws.

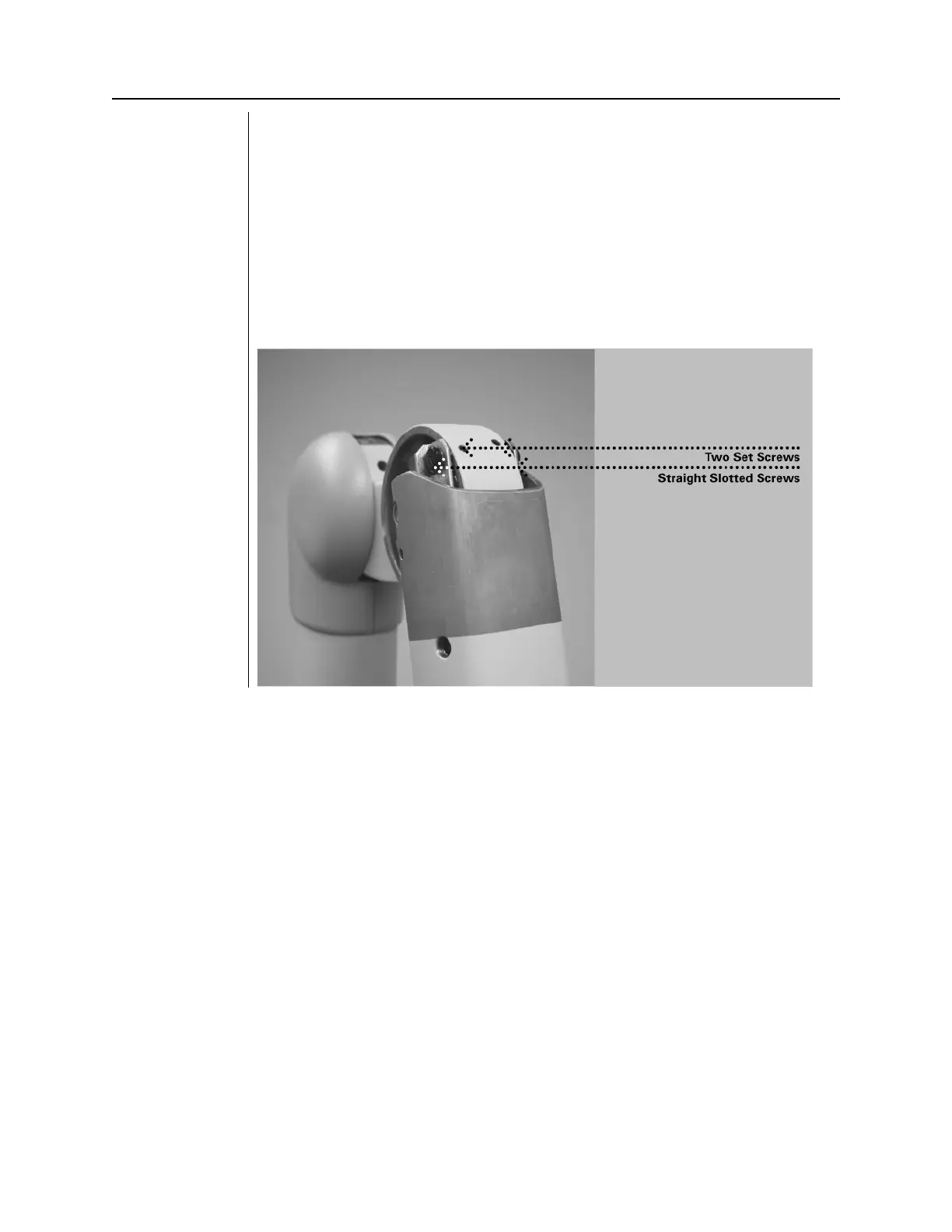

Figure 106
Adjusting the
Articulating Arm
