VetPro DC Installation/Service Manual, 00-02-1606, Revision R01
46

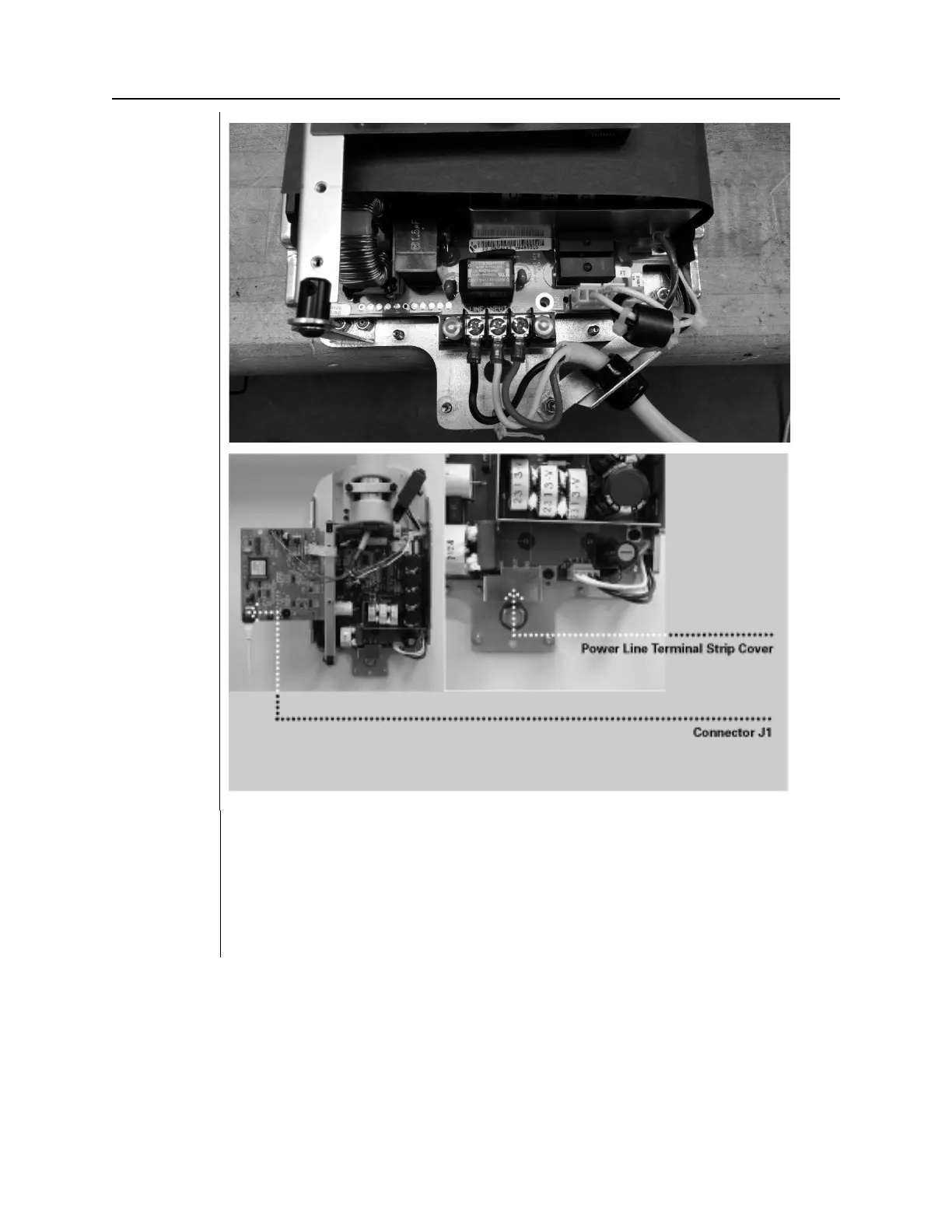

Figure 33
Power Cord
Anchoring
Figure 34
Power Line
Terminal Strip
Cover
the
Operator
Panel with
the 25 ft.
Cable
During initial powerup and verification, the Operator Panel is required. Connect the
Operator Panel with the 7.6 m (25 ft.) interconnect cable. Later you will connect the
Operator Panel in its final position for use.
1. Identify the Operator Panel and the 7.6 m (25 ft.) interconnect cable.
2. Plug the cable into the left socket at the base of the Operator Panel.
3. Plug the other end of the cable into connector J1 on the Power Supply Control
Board 30-08160, as shown in Figure 33.
