Miller Auto Continuum 500 - Page 88

OM-277115 Page 82
. Hardware is common and
not available unless listed.
278347-E
9
12
3
11
5
8
2
1
10
6
7
4

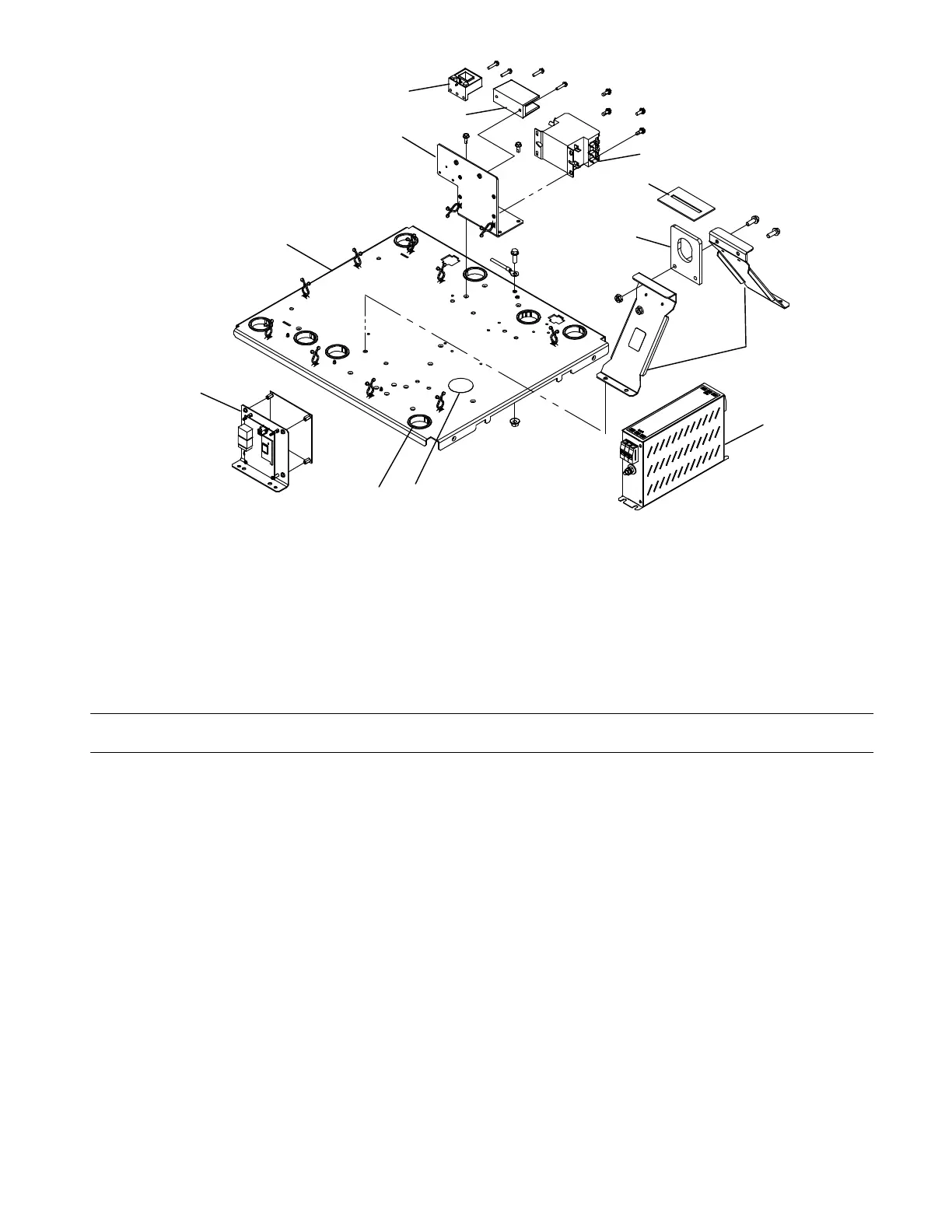

Figure 12-6. Penthouse Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 12-6. Penthouse Assembly (Figure 12-1, Item 10)
Quantity
1 170647 Bushing, Snap-in Nyl 1.312 Id X 1.500 Mtg Hole 8.. .............. .. ....................
2 W1 180270 Contactor, Def Prp 40a 3p 24vac Coil W/Boxlug 1.. ..... ..... .. ....................
3 +265238 Panel, Upper Windtunnel 1.. ............. .. .........................................
155436 Label, Ground/Protective Earth 1................... .... ..................................
4 +265261 Lift Eye, Formed 2.. ............. .. ................................................
273338 Label, Warning Hot Surfaces (Wordless) 1................... .... ..........................
272843 Label, Warning Input Connections/Electric Shock (Wordless) 1................... .... ........
5 266232 Lift Eye 1.. .............. .. ........................................................
6 256975 Seal, Lift Eye 1.. .............. .. ...................................................
7 PC19 273411 Assy, Communication Package Auto 1.. .... .... .. ...............................
8 276629 Bracket, Mtg Contactor 1.. .............. .. ...........................................
9 271847 Block, Term 115 Amp 1 Pole Screw Term 2−14 Wire 1.. .............. .. .................
10 272886 Filter,Input 3 Phase 34 Amp 1.. .............. .. ......................................
11 HD2 182918 Transducer, Current 400A 1.. .... .... .. ........................................
12 006086 Blank, Snap-In Nylon 1.500 Mtg Hole Black 1.. .............. .. .........................
278026 Core, Ferrite 25.90mm Od X 12.80mm Id 1.................... ... ..........................
269968 Core, Ferrite 31.60mm Od X 19.55mm Id 3.................... ... ..........................
276360 Core, Ferrite 9.50mm Od X 4.75mm Id 1.................... ... .............................
276453 Circuit Card Assy, Devicenet Interface Continuum 1.................... ... ...................
♦OPTIONAL
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
