Miller Auto Continuum 500 - Page 89

OM-277115 Page 83
. Hardware is common and
not available unless listed.
2
1
5
3
4
8
6
7
9
11
10
277694-E

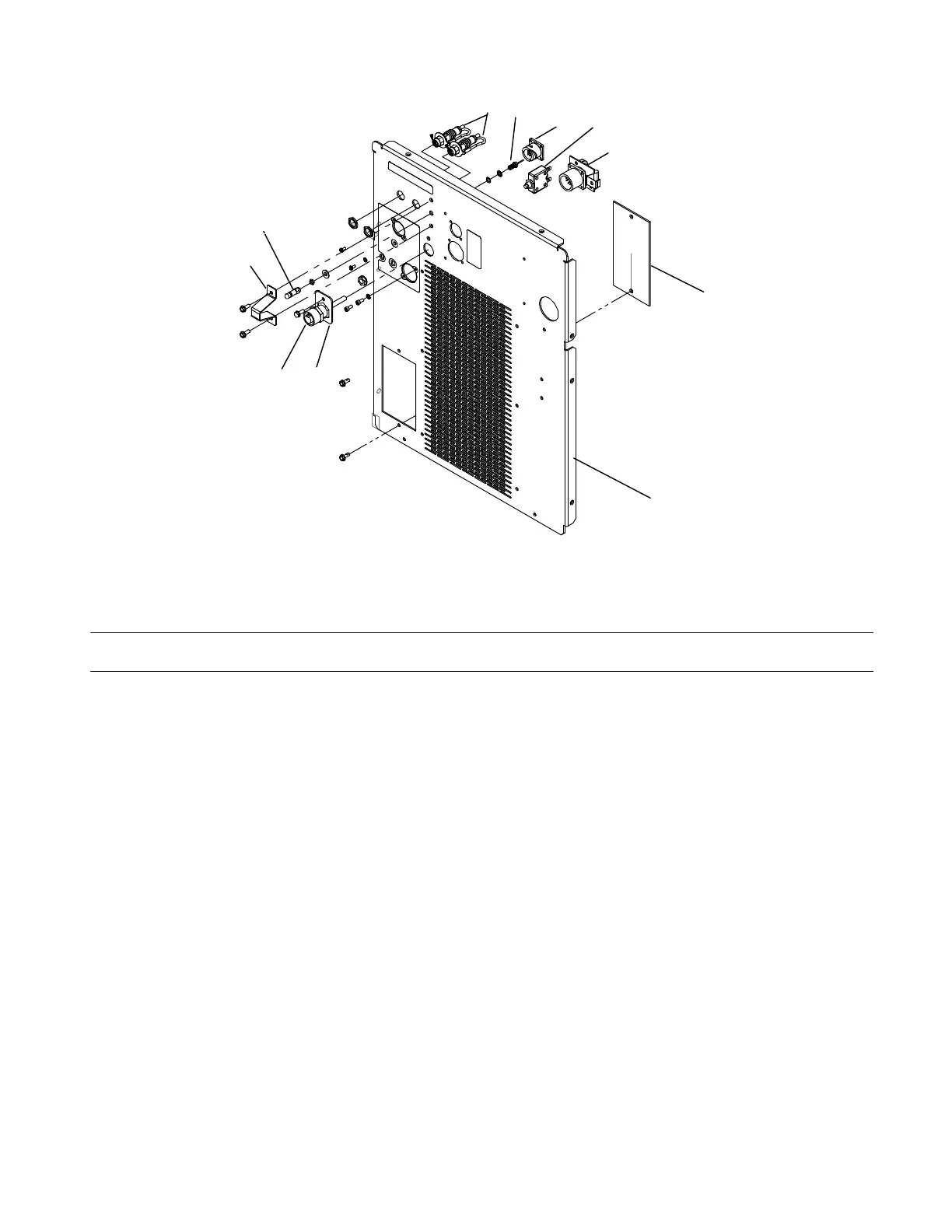

Figure 12-7. Rear Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 12-7. Rear Panel Assembly (Figure 12-1, Item 4)
Quantity
1 +283079 Panel, Rear Auto 1.. ............. .. ................................................
274436 Label, E−Stop−Peripherals Auto−Continuum 1................... .... ......................
269416 Label, Ethernet/Wireless 1................... .... ........................................
Label, Nameplate Rear (Order By Model And Serial Number) 1............................... ........
2 257290 Panel, Rear Blank 1.. .............. .. ...............................................
3 PC16 261838 Circuit Card Assy, Power Source 10 Pin Filter 1.. .... .... .. .......................
4 CB1 083432 Supplementary Pro, Man Reset 1p 10a 250vac Frict 1.. .... .... .. .................
5 276430 Plugs, W/Leads 1.. .............. .. ................................................
6 271543 Cable Assy, Rf Antenna 1.. .............. .. ..........................................
7 280153 Cable Assy, Rj45 Male/M12 Female .4m Lg 2.. .............. .. ........................
8 286254 Bracket, Guard Antenna 1.. .............. .. ..........................................
9 260822 Antenna, Rf Monopole 2.4ghz Screw Mount 1.. .............. .. .........................
10 224012 Plate, Rotation Lock 1.. .............. .. .............................................
11 198956 Receptacle, Devicenet 1.. .............. .. ...........................................
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
