E300 Parts
OM-244 814 Page 83
. Hardware is common and
not available unless listed.
248 796-A

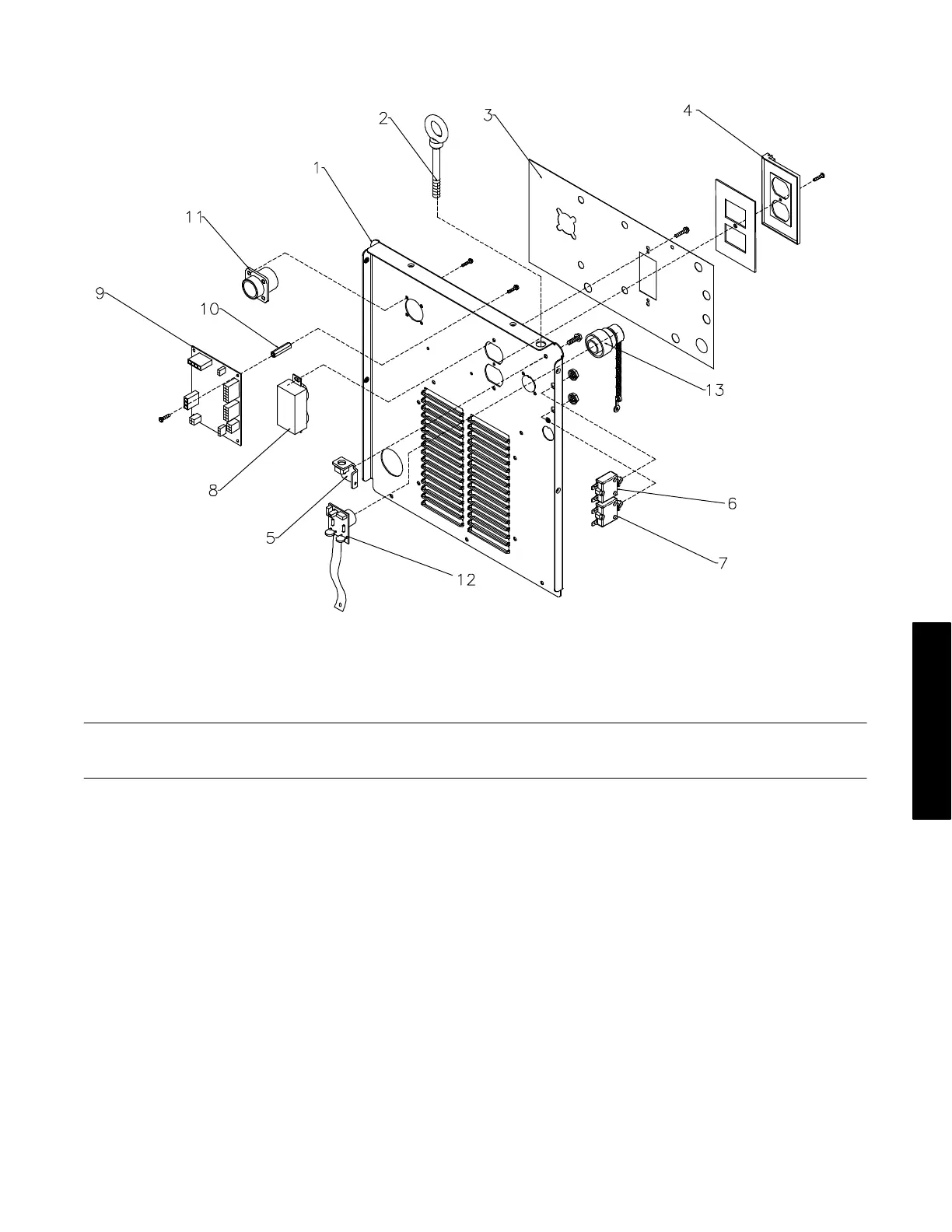

Figure 15-5. Axcess E 300 Rear Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 15-5. Axcess E 300 Rear Panel Assembly
(Fig 15-1 Item 6)
Quantity
1 210478 Panel, Rear 1... ................ ... ..................................................
2 245352 Eye Bolt 1... ................ ... .....................................................
3 210503 Nameplate, Rear 1... ................ ... ..............................................
4 217297 Cover, Receptacle Weatherproof Duplex Rcpt 1... ................ ... .....................
5 210483 Bracket, lift eye 1... ................ ... ...............................................
6 CB1 083432 Supplementary Protector, Man Reset 1P 10A 250VAC Frict 1... .... ...... ... .........
7 CB2 093995 Supplementary Protector, Man Reset 1P 15A 250VAC Frict 1... .... ...... ... .........
8 RC2 196814 Receptacle, w/Leads (115V Duplex) 1... .... ...... ... .............................
9 PC12 239623 Circuit Card Assy, E-Stop 1... .... ...... ... ......................................
10 115440 Stand-off, no 6-32 x .687 lg .250 hex al fem 4... ................ ... .......................
11 212764 Plug Assy, Rear 1... ................ ... ...............................................
E−stop Connector Factory Installed Option For Axcess (includes) 1................................. ....
12 PC14 227901 E−Stop Connector 1... .... ..... .... ...........................................
13 228694 Jumper, Connector W/Cover 1... ............... .... ..................................
*Recommended Spare Parts.
OPTIONAL
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
