Miller Axcess E 300 - Page 88

OM-244 814 Page 84
. Hardware is common and
not available unless listed.
248 806-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
11
3

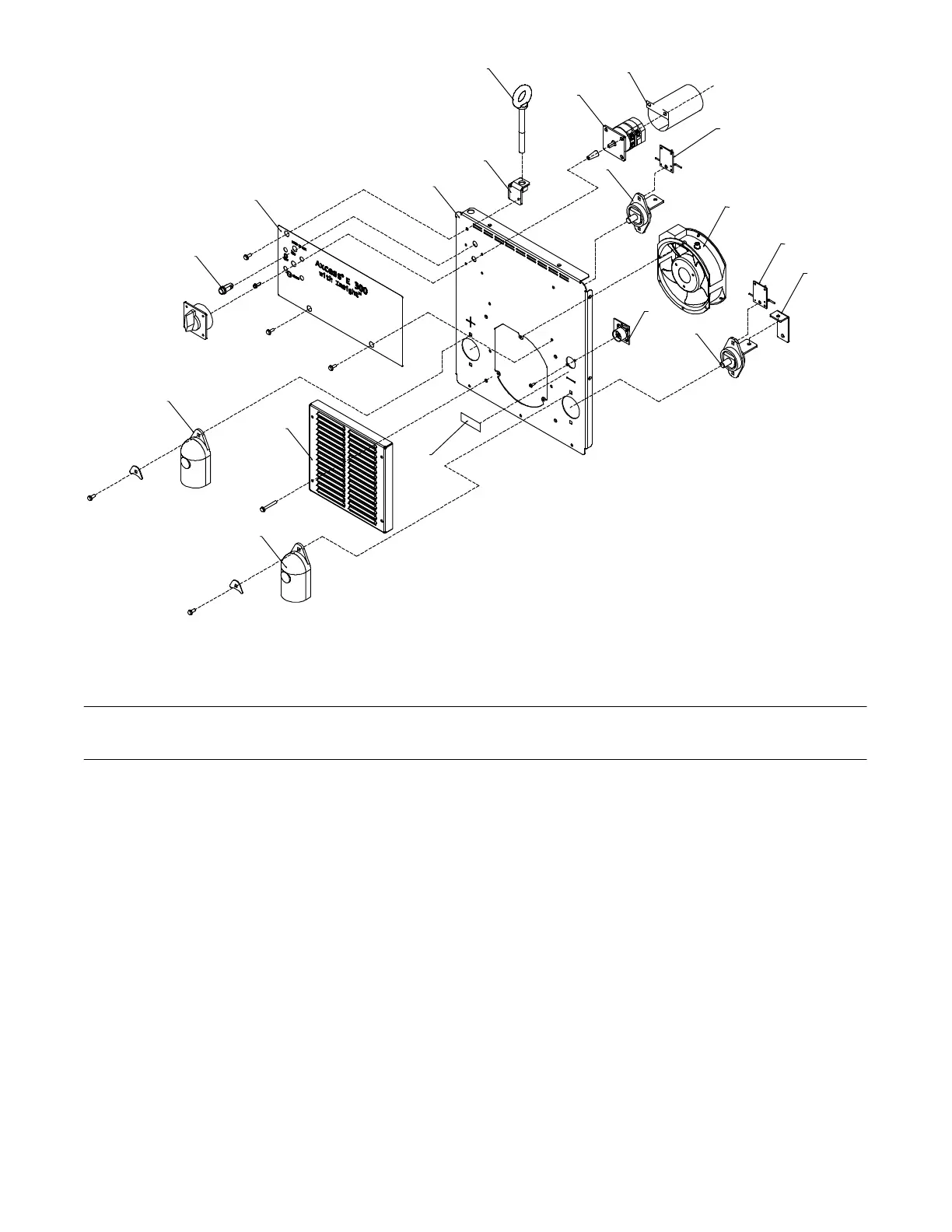

Figure 15-6. Axcess E 300 Front Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 15-6. Axcess E 300 Front Panel Assembly
(Fig 15-1 Item 14)
Quantity
1 S1 207456 Switch, Rotary 2 Posn 1P 40A 600VAC PNLMTG 90Deg 1... ..... ....... ... ...........
2 207895 Insulator,Switch Power 1... ................ ... .........................................
3 PC15,20 244993 Circuit Card Assy, Stud Filter 2... .. .... ... ...................................
4 FM 196313 Fan, Muffin 115V 50/60 Hz 3000 Rpm 6.378 Mtg Holes 1... ..... ....... ... .............
5 207980 Bus Bar, Output 1... ................ ... ...............................................
6 244989 Circuit Card Assy, Vsense Filter 1... ................ ... .................................
7 210866 Terminal, Pwr Output Black 1... ................ ... .....................................
8 248552 Panel, Front 1... ................ ... ..................................................
9 219843 Label, Work Sense 1... ................ ... ............................................
10 207979 Box, Louver 1... ................ ... ..................................................
11 186621 Boot, Generic 2... ................ ... .................................................
12 PL1 163562 Light, ind white lens 1... ..... ...... ... ...........................................
13 248553 Nameplate, Front 1... ................ ... .............................................
14 210865 Terminal, Pwr Output Red 1... ................ ... ......................................
15 210483 Bracket, lift eye 1... ................ ... ...............................................
16 245352 Bolt, eye shld thd stem .500−13 X 1.500 1... ................ ... ..........................
*Recommended Spare Parts.
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
