E450 Parts
OM-244 814 Page 89
. Hardware is common and
not available unless listed.
245 871-C
1
2
3
4
6
12
11
14
7
10
13
18
5
17
15
16
8
9
19

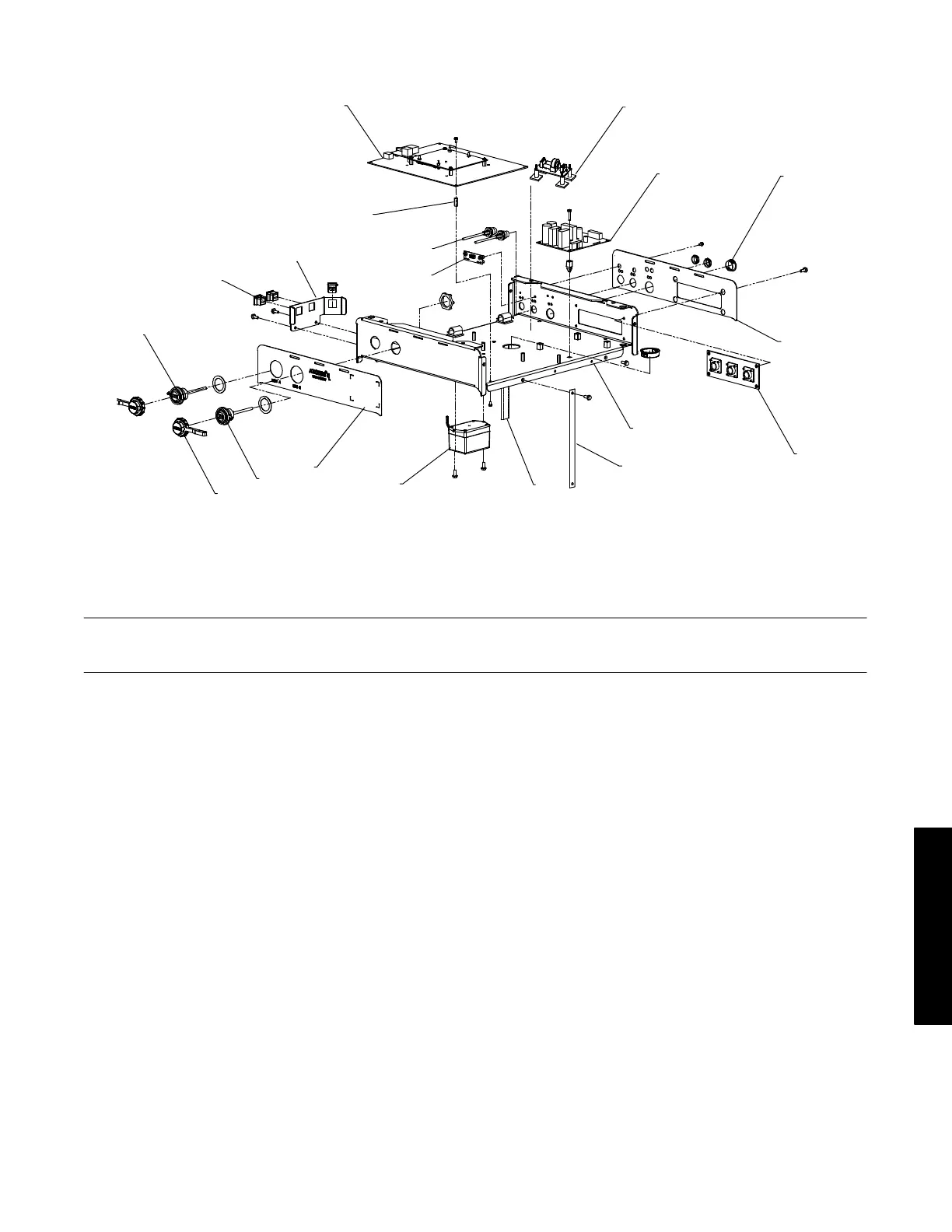

Figure 16-3. E-module w/Ethernet And USB Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 16-3. E-module w/Ethernet And USB Assembly
(Fig 16-1 Item 2)
Quantity
1 244923 Assy, Axcess E Circuit Card Board Stack 1... ................ ... .........................
2 115440 Stand−off, No 6−32 X .687 Lg .250 Hex Al Fem 4... ................ ... ..................
3 244985 Circuit Card Assy, Axcess E MWCI Interface 1... ............... ... ......................
4 000527 Blank, Snap−in Nyl .875 Mtg Hole Black 1... ................ ... .........................
5 242645 Nameplate, Axcess E Top Rear 1... ................ ... .................................
6 242007 Panel, Amp W/Components 1... ............... ... ....................................
7 241996 Chassis, Axcess E 1... ................ ... ............................................
8 246591 Ground Strap 2... ................ ... .................................................
9 228008 Insulator 1... ................ ... .....................................................
10 245350 Assembly, Personality Board 1... ................ ... ....................................
11 240728 Nameplate, Axcess E Top Front 1... ................ ... .................................
12 244236 Cable, USB Type B, Sealed Panel Mount 1... ................ ... .........................
13 244237 Dust Cap 2... ................ ... .....................................................
14 244239 Cable, USB Type A, Sealed Panel Mount 1... ................ ... .........................
15 203423 Bushing,Strain Relief .300/.360 ID X .689 Sq Mtg 3... ................ ... ..................
16 246545 Bracket,Axcess E Strain Relief 1... ................ ... ..................................
17 244980 Circuit Card Assy, Ethernet LED 1... ................ ... .................................
18 244257 Cable Assy, RJ45 Male/M12 Female .4m 2... ................ ... ........................
19 254000 Assy, Filter Board Axcess E 1... ................ ... ....................................
*Recommended Spare Parts.
OPTIONAL
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
