OM-244 814 Page 90
. Hardware is common and
not available unless listed.
245 798-A

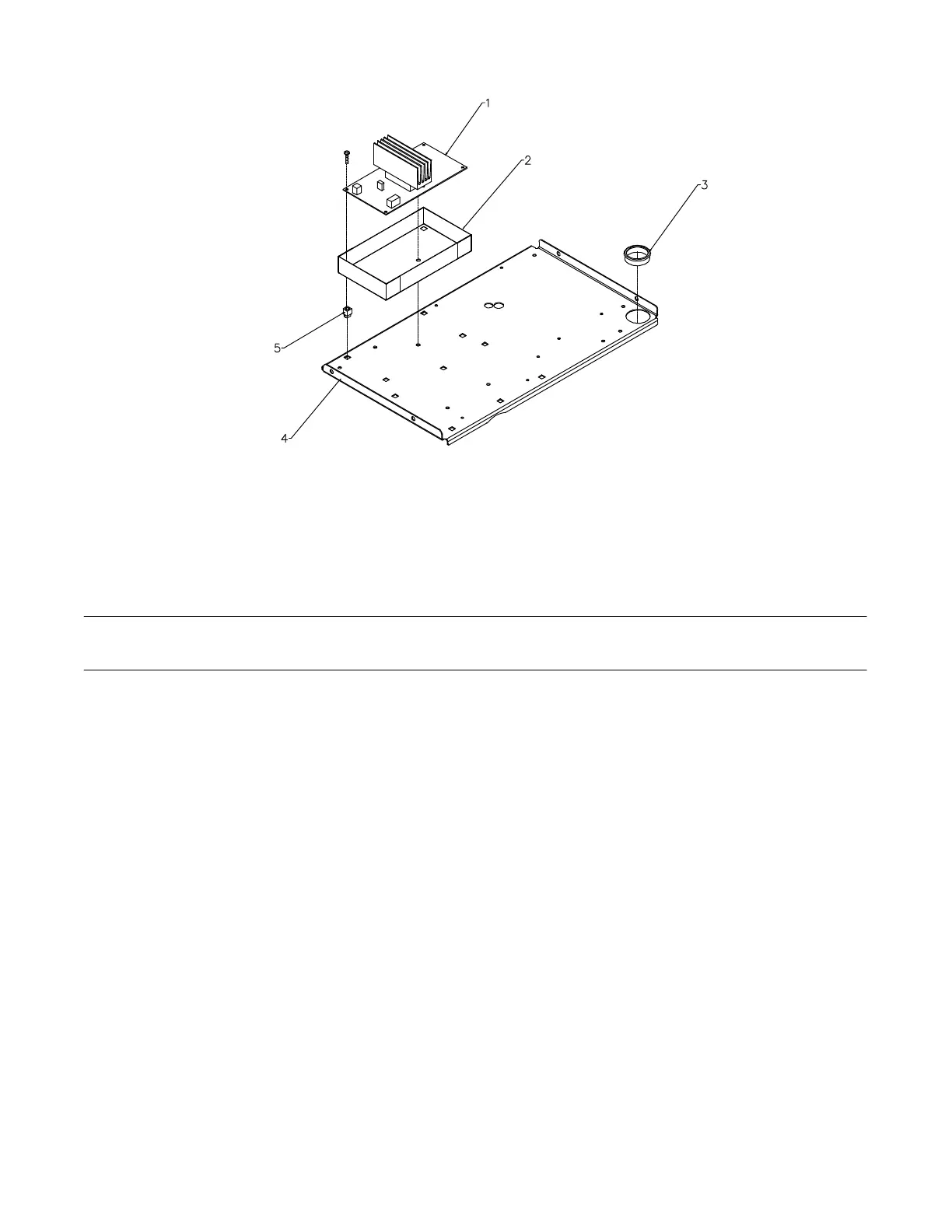

Figure 16-4. Top Tray Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 16-4. Top Tray Assembly (Fig 15-1 Item 4
And Fig 16-1 Item 5)
Quantity
1 PC3 239598 Circuit Card Assy, Aux Power 1... .... ...... ... ...................................
2 223439 Insulator, circuit card (Aux Power) 1... ................ ... ...............................
3 170647 Bushing, Snap−in Nyl 1.312 Id X 1.500 Mtg Hole 1... ................ ... ..................
4 210491 Panel, Mtg Components Top 1... ................ ... ....................................
5 083147 Grommet, SCR No 8/10 Panel Hole .312 Sq .500 High 4... ................ ... .............
*Recommended Spare Parts.
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
