OM-266409 Page 17
5-6.

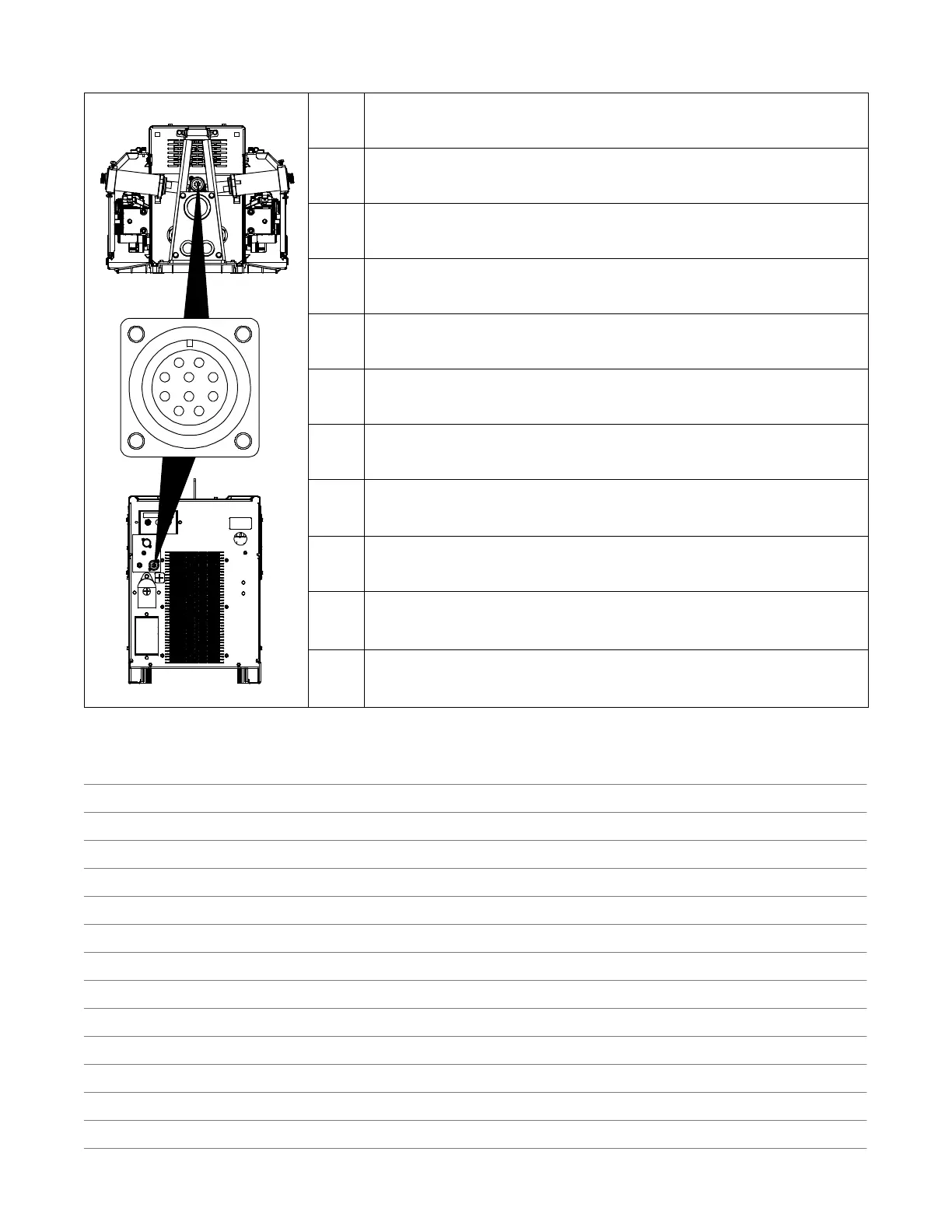

Remote 10 Wire Feeder Control Receptacle RC2 Information
Ref. 259 145-B / Ref. 259 1
19-A
A
B
C
D
E
F
G
H
I
J
Socket
Socket
Information
A
+50 V
olts DC Common
B
+50 V
olts DC Common
C
V
oltage Sense
D
+50 V
olts DC Power
E
+50 V
olts DC Power
F
ENET Rx −
G
ENET Tx −
H
Drain
I
ENET Tx +
J
ENET Rx +
Notes
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1 − Safety Precautions - Read before Using
5
Symbol Usage
5
Arc Welding Hazards
5
Additional Symbols for Installation, Operation, and Maintenance
7
California Proposition 65 Warnings
8
Principal Safety Standards
8
EMF Information
8
Section 2 − Consignes de Sécurité − Lire Avant Utilisation
9
Symboles Utilisés
9
Dangers Relatifs Au Soudage À L'arc
9
Dangers Supplémentaires en Relation Avec L'installation, Le Fonctionnement Et la Maintenance
11
Proposition Californienne 65 Avertissements
12
Principales Normes de Sécurité
12
Informations Relatives Aux CEM
12
Section 3 − Definitions
13
Additional Safety Symbols and Definitions
13
Miscellaneous Symbols and Definitions
15
Section 4 − Specifications
16
Serial Number and Rating Label Location
16
Specifications
16
Environmental Specifications
16
Wire Type, Size, and Wire Feed Speed Table
16
Section 5 − Installation
17
Power Source and Wire Feeder Site Selection
17
Feeder Location
18
Mounting Hole Location
18
Connection Diagram
19
Connecting Weld Output Cable
20
Remote 10 Wire Feeder Control Receptacle RC2 Information
21
Control Cable Connections
22
Wire Feeder Lower Front Panel Connections
22
Shielding Gas Hose Connection
23
Jog/Retract Switch
23
Rotating Drive Assembly
24
Installing Welding Gun
25
Installing Wire Guides and Drive Rolls
26
Installing and Threading Welding Wire
27
Wire Feeder User Interface
28
Description of Front Panel Controls (See Section 5-15)
29
Wire Feeder Lower Panel Controls
30
LCD Home Screen
31
Setup Menu
31
Logs Menu
32
Status Menu
32
Creating, Changing and Saving a Weld Program
33
Trigger Configuration
33
Weld Sequence Configuration
34
Feedback Configuration
35
System Menu
35
Factory Reset
36
USB Functions
36
Section 6 − Maintenance & Troubleshooting
37
Routine Maintenance
37
Error Code Troubleshooting Description and Tables
38
Troubleshooting
42
Section 7 − Electrical Diagram
44
Section 8 − Parts List
46
