OM-266409 Page 21

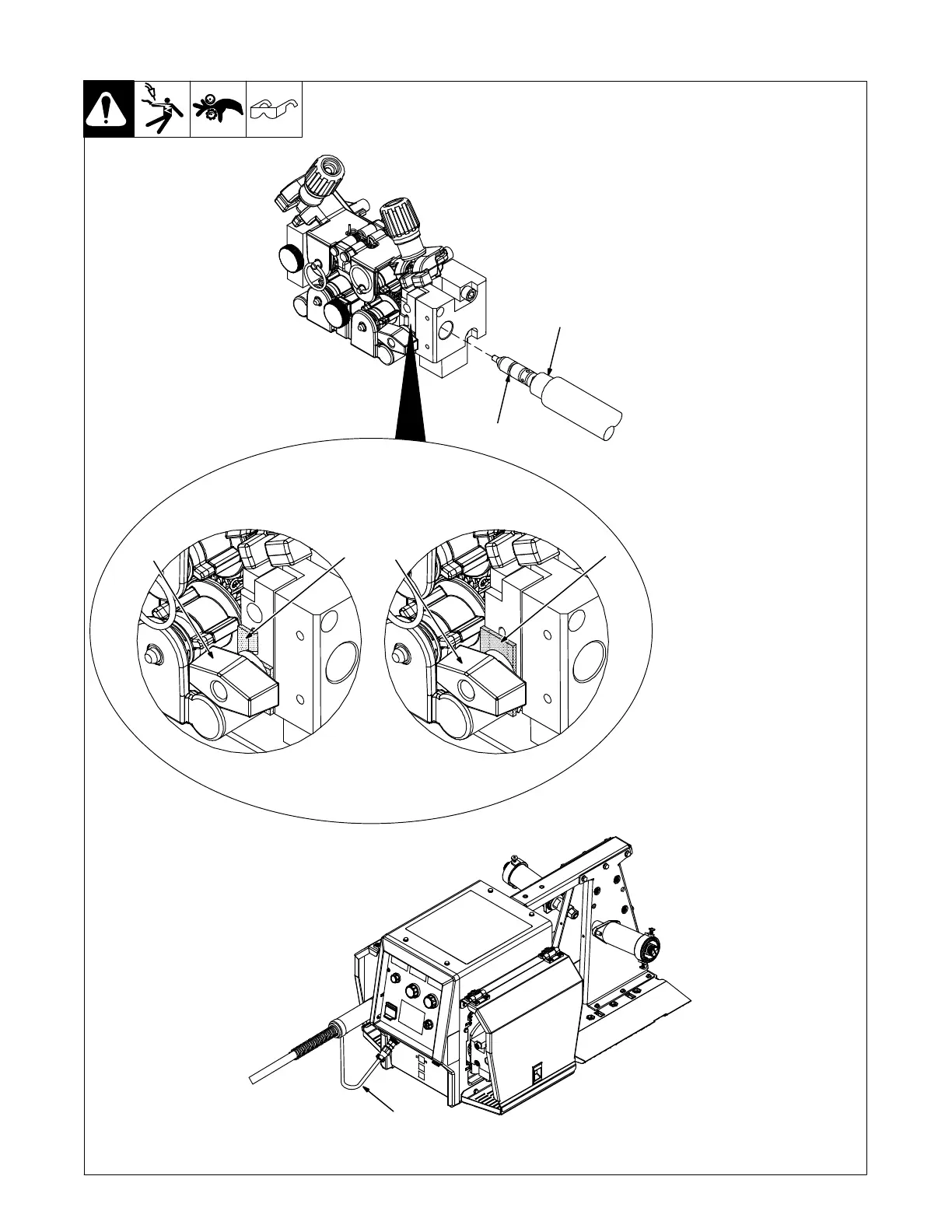

-12. Installing Welding Gun

Ref. 301199−TP5 / ref. 270 026-A / Ref. 260233-B

1 Power Clamp Knob

2 Gun Locking Tab

3 Gun Locking Tab Rotated 180

Degrees

4 Power Pin Groove

5 Gun Connection End

Installing gun with Accu-Mate

connection

Loosen power clamp knob to allow

power pin of gun to clear the gun

locking tab.

Push power pin into power clamp

as far as possible to align the

groove in the power pin of the gun

with the gun locking tab.

Secure gun by tightening power

clamp knob.

Installing gun without Accu-

Mate connection

When using a gun without the

groove in the power pin, loosen

power clamp knob and rotate gun

locking tab 180 degrees. This pre-

vents the locking tab from extend-

ing into the power pin gun connec-

tion.

Push power pin into power clamp

as far as possible.

Secure gun by tightening power

clamp knob.

6 Gun Control Cable

Insert plug into Gun Control

receptacle, and tighten threaded

collar.

Installing gun with

Accu-Mate connection

Installing gun without

Accu-Mate connection
