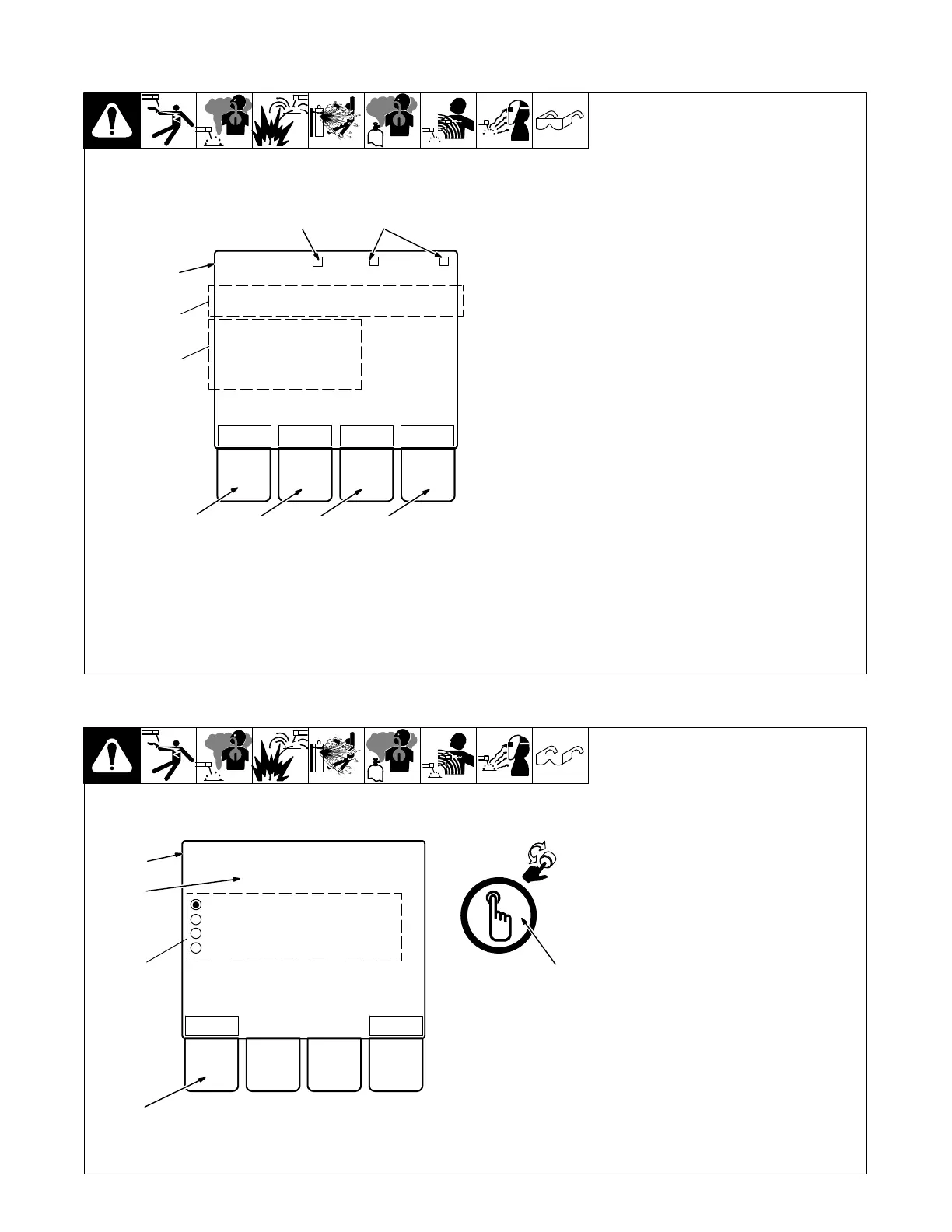

5-18. LCD Home Screen
Ref 266 061-A
1 Directory Indicator
Displays the directory path of curren
t
screen.
2 Program Number
Displays the current weld program numbe
r
and which side of feeder is active.
3 Program Information
Displays the process type, wire diameter
,
wire type and alloy, and gas mixture as
-
signed to the current weld program.
4 Setup Soft Key
Press Setup soft key to enter the Setup
menu screen. Setup Menu screen allows
weld programs to be created or changed
.
For more information see Section 5-19.
5 Logs Soft Key
Press Logs soft key to enter Logs menu
screen. For more information
see Section 5-20.
6 Status Soft Key
Press Status soft key to enter the Status
menu screen. For more information see
Section 5-21.
7 System Soft Key
Press System Soft Key to enter System
menu screen. System menu allows access
to System Reset, USB, and board software
revision functions. For more information
see Section 5-26.
8 Network Connection Indicator
Displays the type of network connection
being used.
9 Internet
Displayed when Insight Core is enabled.
Logs StatusSetup System
Home
<L Program # 1 R>
Accupulse
.035 Steel E70
Ar 90 CO2 10
1
2
3
4
5 6 7
WiFi Ethernet
8
9
Internet
5-19. Setup Menu
1 Directory Indicator
Displays the current directory path.
2 Menu Name
Displays the current menu name.
3 Scroll Knob and Select/Save Button
Rotate knob to change active option. Active op-
tion will have black circle next to it while inactive
options will be white. Press the knob to select the
active option.
4 Options
Load New Process− Add or make changes to a
weld program. See Section 5-22.
Trigger Configuration- Select and edit dual
schedule, trigger dual schedule, 4T, and trigger
hold features. See Section 5-23.
Weld Sequence Configuration- Change differen
t
aspects of the weld sequence such as preflow,
start amperage, crater, and post flow.
See Section 5-24.
Feedback Configuration- Set voltage feedback
method to stud sense or sense lead. See Section
5-25.
5 Home Soft Key
Press Home soft key to return to Home menu
screen.
Ref 266 061-A
Home
Home > Setup
Setup Menu
Load New Process
1
2
5
4
3
Trigger Configuration
Weld Sequence Configuration
Feedback Configuration
Back
