OM-266409 Page 16
! Turn off power before connecting to
weld output tabs or receptacles.
! Failure to properly connect weld
cables may cause excessive heat
and start a fire, or damage your
machine.
Ensure all connections are tight.

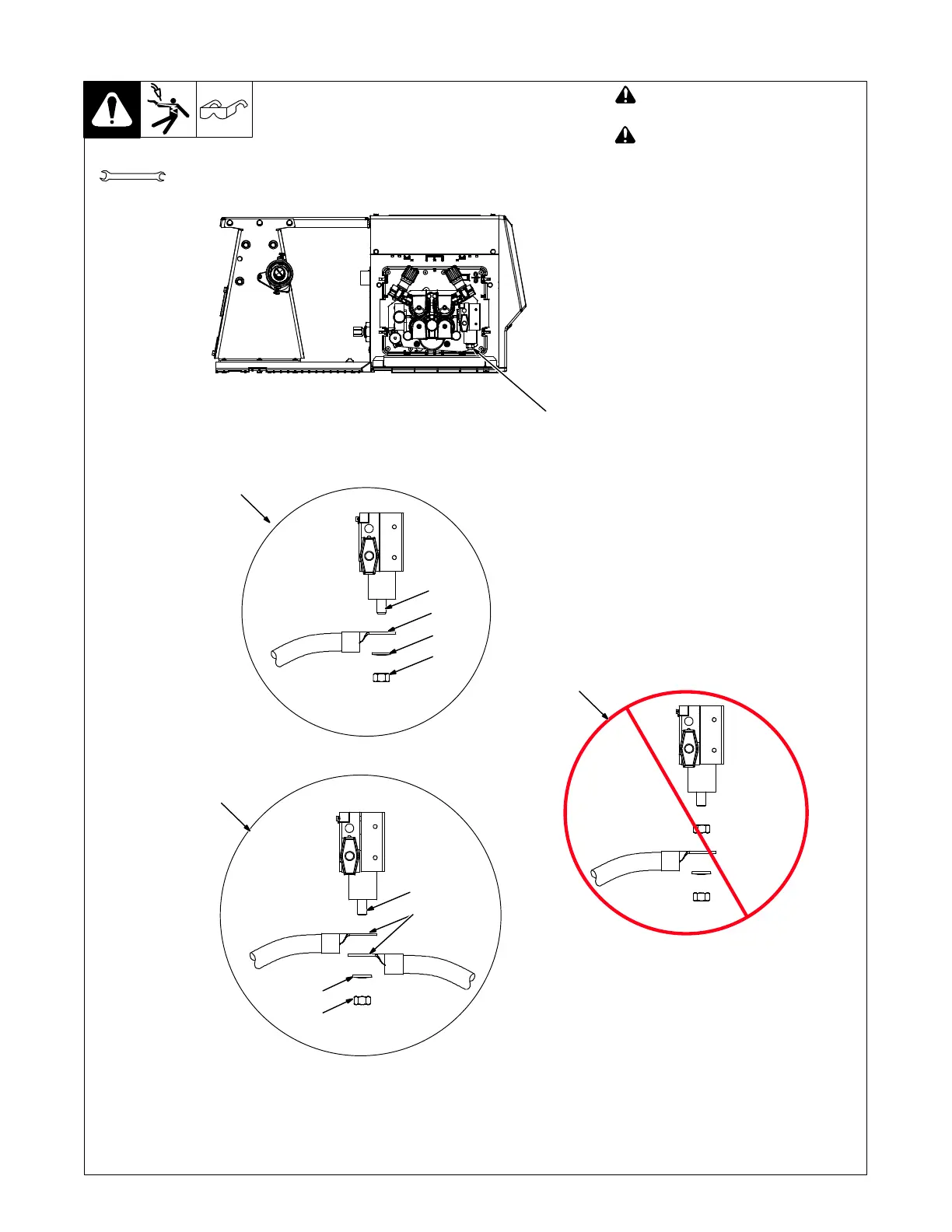

Tab Connection
. Do not place anything between weld
cable terminal and output tab. Make
sure that the surfaces of the weld cable
terminal and output tab are clean.
1 Positive Connection Terminal
2 Correct Weld Cable Connection For
Single Cable
3 Correct Weld Cable Connection For
2/0 And Larger Double Cables
4 Incorrect Weld Cable Connection
5 Weld Output Terminal Bolt
6 Weld Cable Terminal
7 Supplied Washer
8 Supplied Nut
Remove supplied nut and bolt from weld
output terminal. Insert bolt through hole in
weld cable terminal and hole in weld output
terminal. Screw nut onto bolt until weld cable
terminal is tight against output terminal.
Torque to 27−33 ft lb (36.6−45 N·m)
Tools Needed:
3/4 in. (19 mm)
Wire Feeder Side View
with Door Open
1
2/0 and larger double cables
2
4
5
6
7
8
Ref. 259 144-A / Ref. 259 120-B
5-5. Connecting Weld Output Cable
3
5
6
7
8
To Next Page
