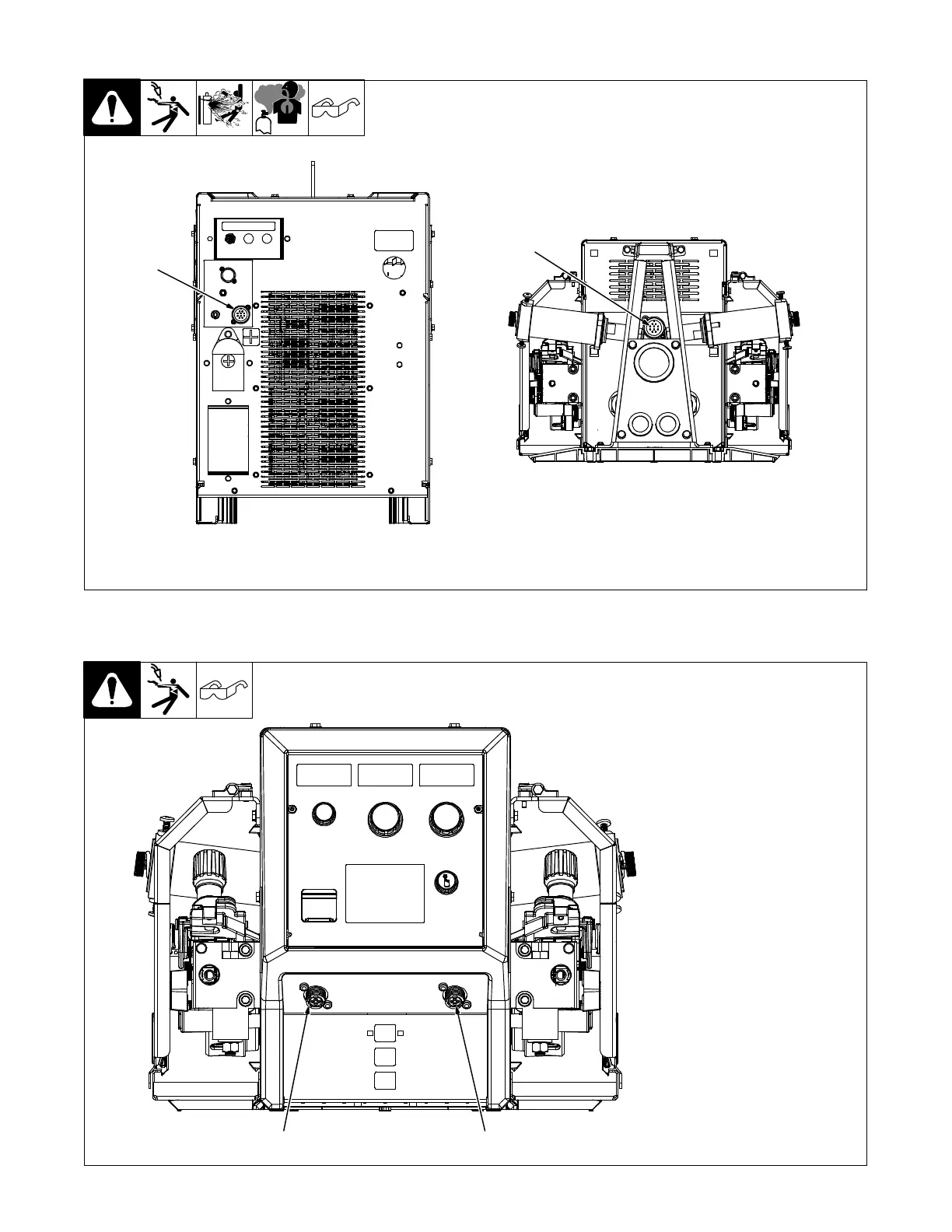

5-7. Control Cable Connections
Ref. 259 119-A / Ref. 259 145-B
1 10-Socket Control Receptacle RC2
Connect control cable to receptacle on
rear of welding power source and wire
feeder.
Welding Power Source
Rear View
Wire Feeder
Rear View
1
1
5-8. Wire Feeder Lower Front Panel Connections
1 Left−hand 4-Socket Gun
Trigger Receptacle
2 Right-hand 4-Socket Gun
Trigger Receptacle
Connect gun trigger plug to
appropriate receptacle on feeder.
Ref. 259 145-B
1 2
