USE AND MAINTENANCE MANUAL
11
3.3. DESCRIPTION OF SAFETY DEVICES
3.3.1. FIXED GUARDS
They are fixed with screws and can be removed only using the appropriate tools, which must only be used for
maintenance operations; when maintenance is finished the guards must be correctly repositioned.
3.3.2. MOVABLE GUARDS
They are connected to safety micro-switches or photocells meant for cutting in automatically whenever the covers
are opened. The machine can start production again when the movable guards are closed.

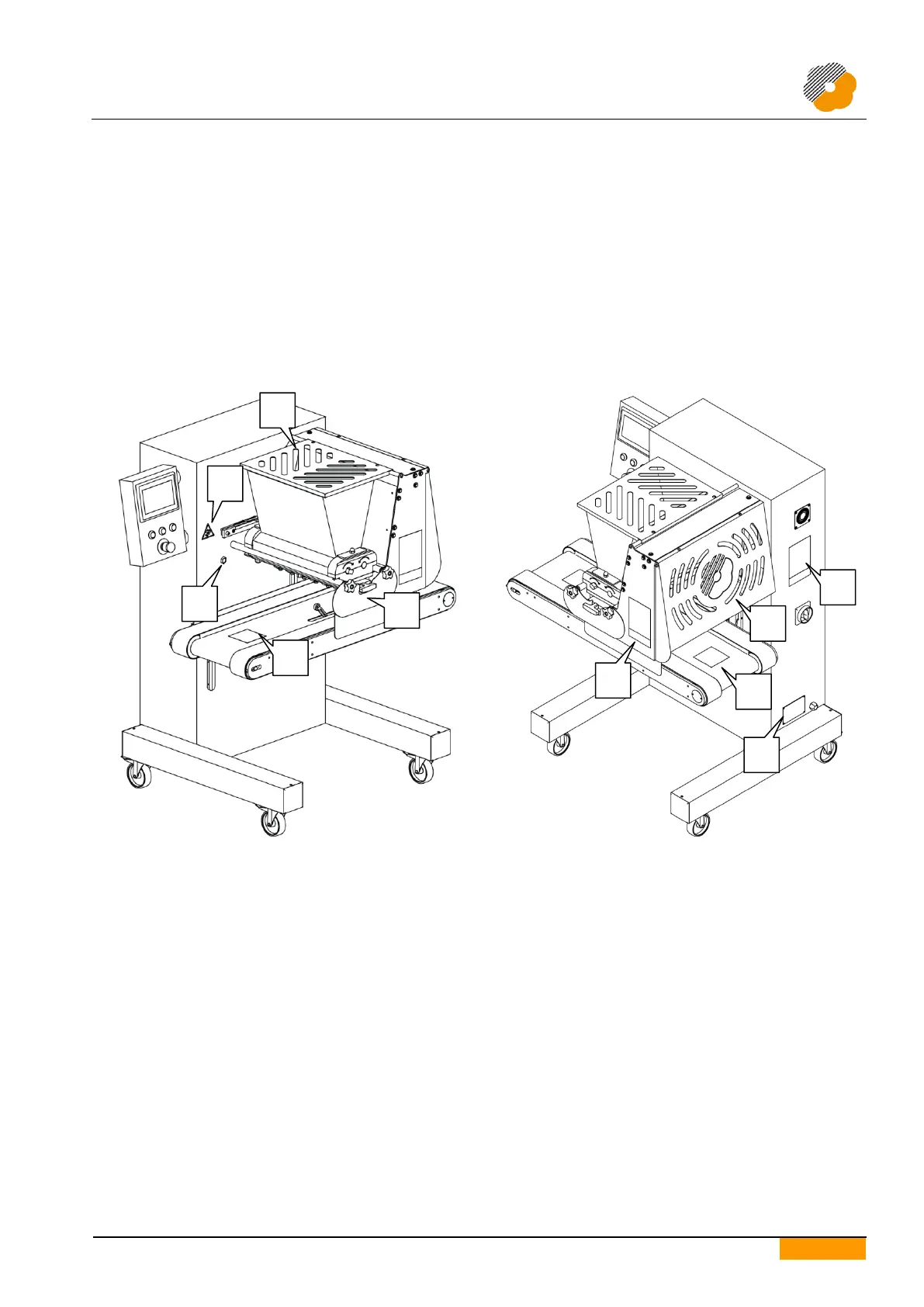

3.4. PLACEMENT OF SECURITY DEVICES AND SIGNALS
3.4.1. SUPREMA / SUPREMA PLUS
1. Hopper movable guard
2. Wire-cut device movable guard
3. Front guard
4. Photocell
5. Main pictogram
6. Pictogram “Hand crush hazard”
7. Information plate
1
4
7
3
2
6
6
5
5
6
