MIMAC SUPREMA PLUS - 7. Setup and Diagnosis (Continued); Machine Parameters (Continued); Diagnostics Screen Overview

USE AND MAINTENANCE MANUAL
49
Parameter
Description
User password
It allows to modify the user password
Wire-cut die offset
Distance (in height) between the wire-cut mould and the machine zero
Wire-cut waiting time
Time elapsed between wire cutting system starting and the belt conveyor forward
command

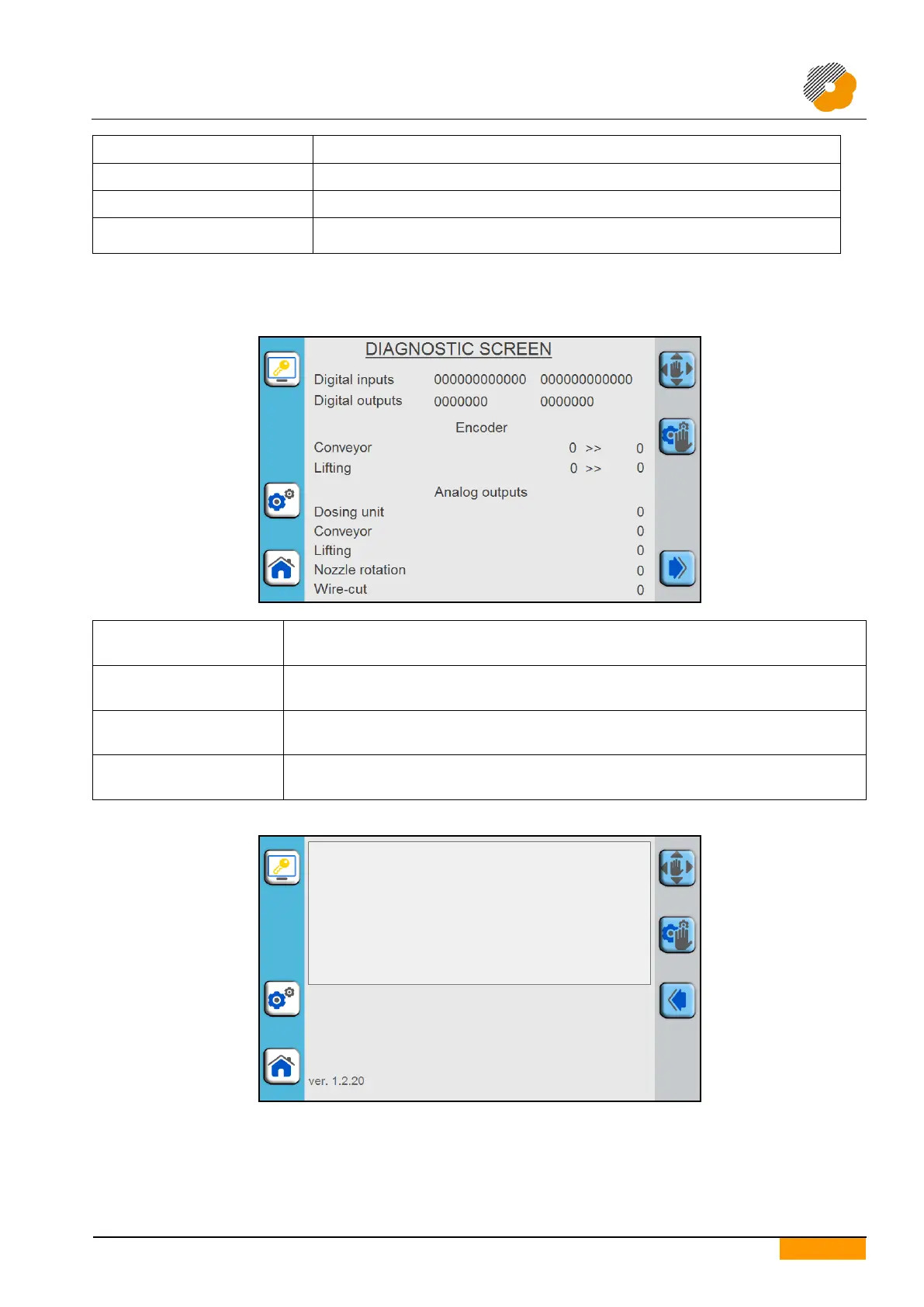

7.2. DIAGNOSTICS SCREEN
The machine state can be monitored from this screen.
Digital inputs
Indicates the state of the signal of each PLC digital input.
Refer to the Digital input table
Digital outputs
Indicates the state of the signal of each PLC digital output.
Refer to the Digital outputs table
Encoder
The Encoder section gives the current and also the destination quotas of the devices
with a controlled position (e.g. conveyor)
Analog outputs
The Analog output section gives the current voltages set for each analog output that
controls the speed of the relative listed device.
EVENT MESSAGE AND
ALARM LOGS
