MIMAC SUPREMA PLUS - 8. Cleaning Procedures (Continued); Roller Type Dosing Unit Cleaning; Pump Type Dosing Unit Cleaning

56
www.mimac.com

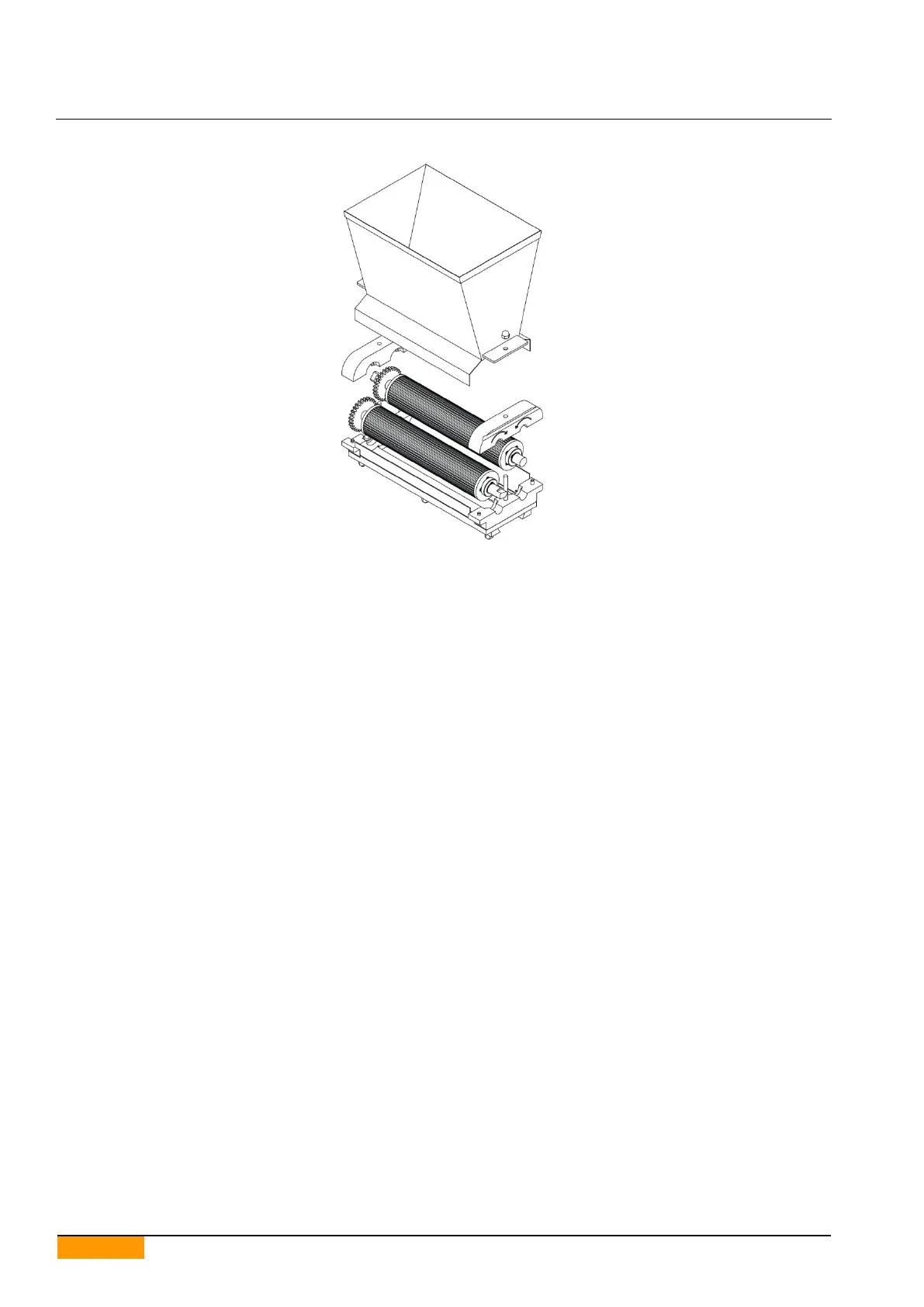

8.4. ROLLER TYPE DOSING UNIT DISASSEMBLING AND CLEANING
1. Remove the front guard after removing the blocking nuts.
2. Lift the hopper guard.
3. Slightly withdraw the dosing unit.
4. Lift and remove the hopper after unscrewing the locking nuts.
5. Remove the upper part of each head support.
6. Delicately remove both rollers.
7. Remove the head from the machine.
8. Carefully wash all components using hot water.
9. Before reassembling the dosing unit, dry all parts and wait for them to cool down.
