6.. Make sure the wire is in contact with
the plastic mould.

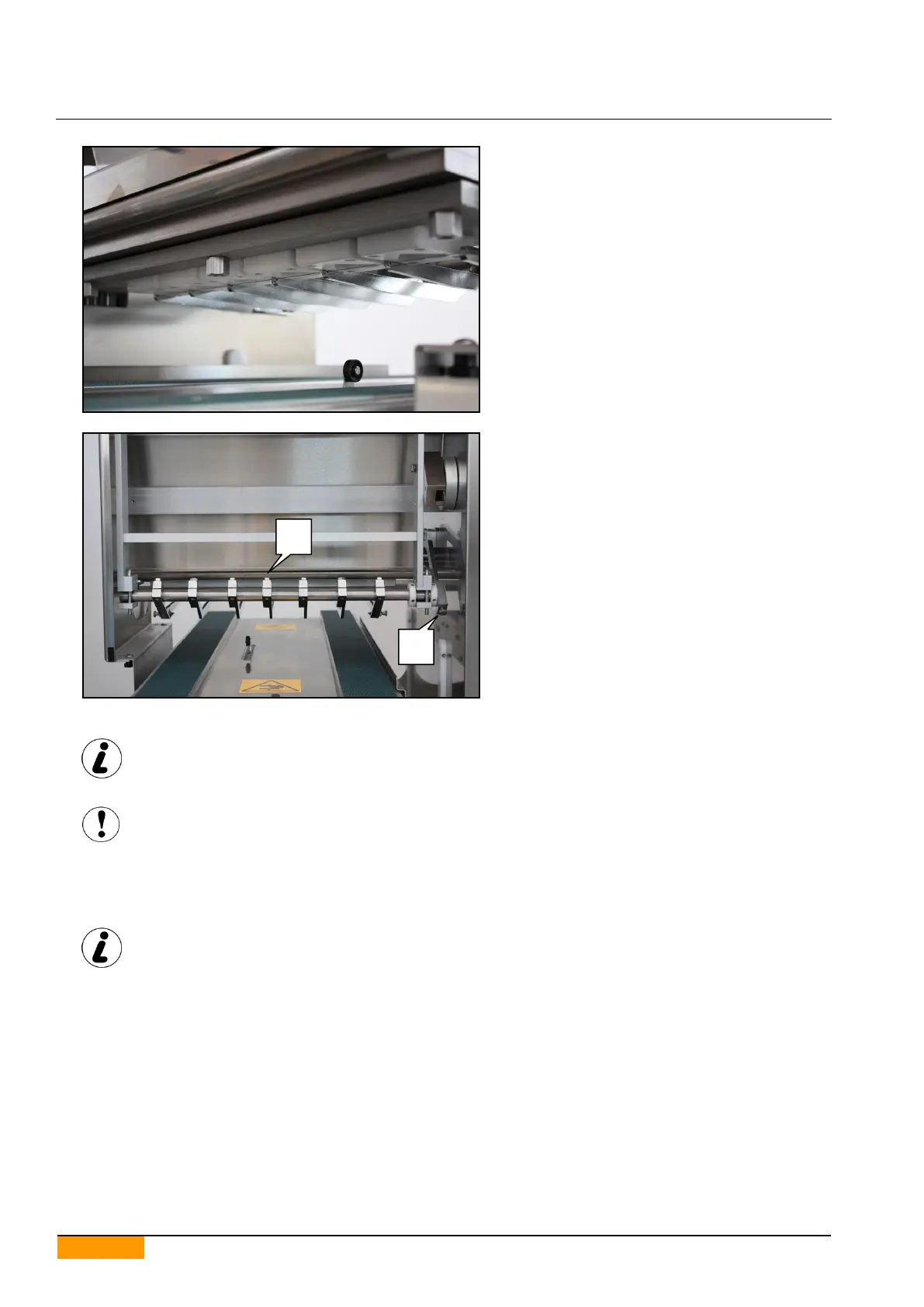

6.. To adjust the vertical position of all the
arms contemporaneously, loosen the
guide arm lock screw (part 1), adjust
and tighten the screw again.
To adjust the vertical position of the individual
arms, loosen the relative rear lock screw
(part.2), adjust and then tighten the screw
again.
While adjusting the frame, make sure that the guiding pin remains in contact with the metal
plate of the guiding shoe.
Remove the wire-cut frame from the machine when it is not required for production.
5.4.5. INSERTING/REPLACING THE STEEL WIRE
Maximum care must be taken when carrying out this operation to prevent moving the arm
position unexpectedly.
1. Lift the rear mobile guard.
2. Pull the frame check pins up.
3. Remove the frame from its seat.
4. Delicately remove the worn/broken wire, making sure to have removed all of it, even from around the
tightening screws.
