USE AND MAINTENANCE MANUAL

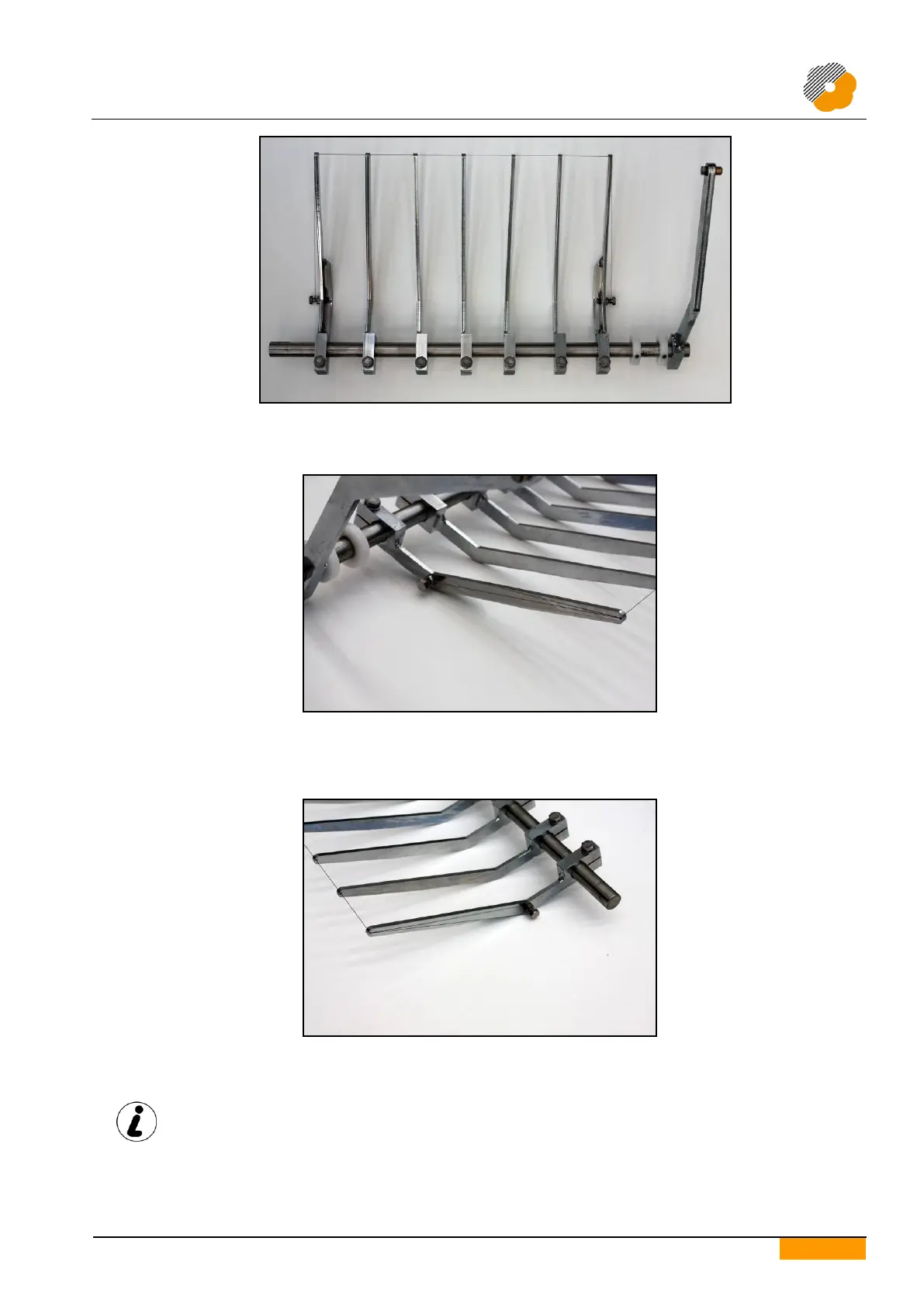

5. Insert the replacement wire, passing it through the holes of the arms, being very careful not to bend it
excessively.
6. Fix the first end of the steel wire, inserting it into the adjustment screw hole and wind it around the screw a few
times in order to guarantee a perfect hold.
7. Cut the wire to size and repeat the fixing operation at the other end of the frame.
8. Use the second screw to tighten the steel wire suitably, and tighten the nut to lock it.
9. Reposition the frame on the machine.
The wire-cut frame is carefully adjusted and tested during the inspection phase, which is
carried out before shipping.
