5.4.4. INSERTING AND ADJUSTING THE WIRE CUTTING SYSTEM
The motorized wire cutting system can be moved after having carefully assembled the relative die onto the roller
type dosing group and the relative wire-cut frame.
When preparing for wire cutting, carefully and accurately position the frame arms against the die. Also make sure
that the steel wire is tightened and fitted correctly. If the wire does not cut the dough that exits from the moulds
simultaneously and with the same tightness, the product will not fall onto the trays in aligned rows. Make sure that
the steel wire is placed and tensioned correctly.

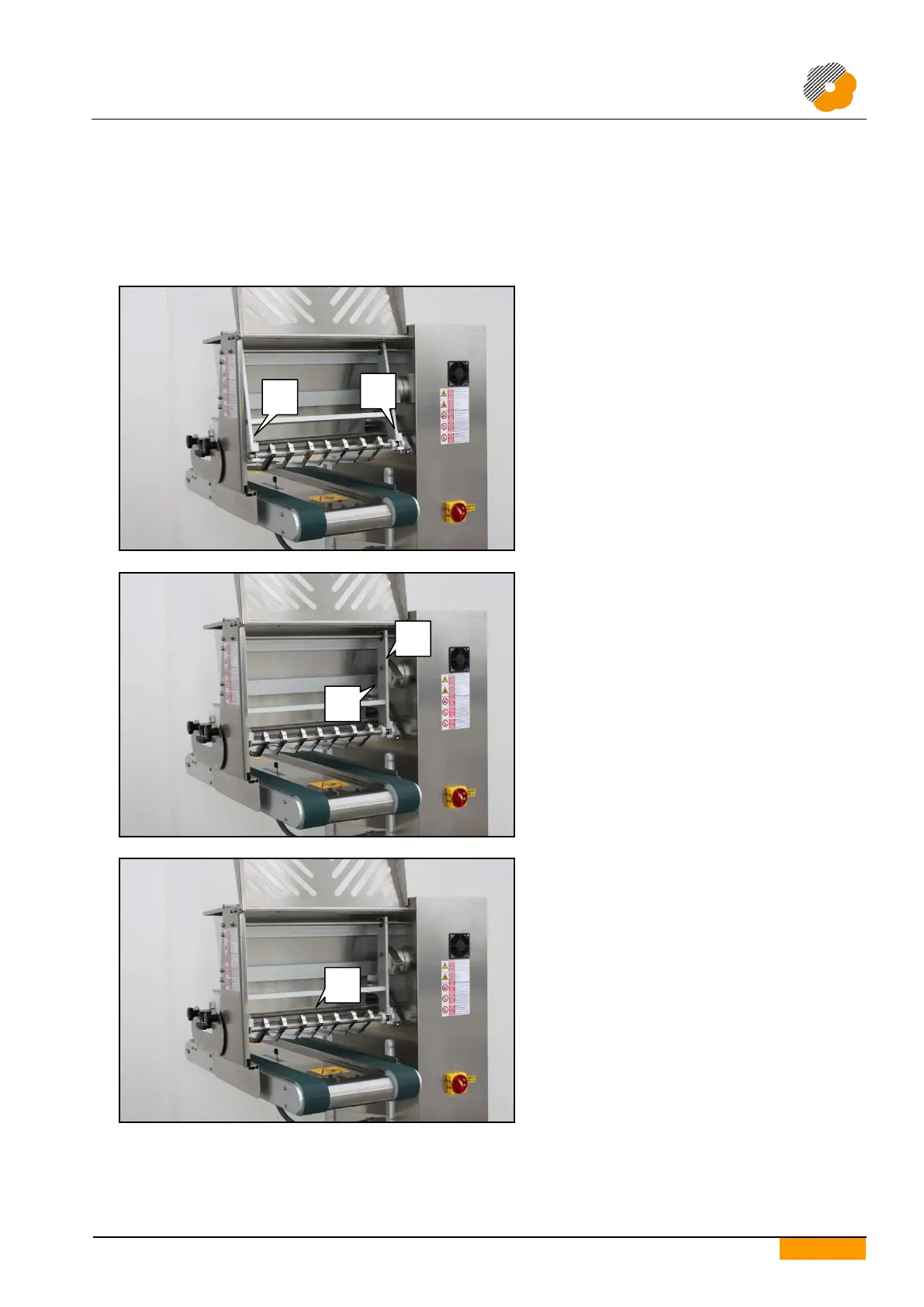

1. Pull the check pins up (parts 1 and 2), insert
the tray into its seats and release the check
pins.
2. Fully unscrew screw No. 2 and loosen screw
No. 1.
Make sure the arms are aligned with the die,
carefully pushing the frame forward and
backward manually.
To adjust the transversal position of each arm,
loosen the relative rear lock screw (part 1),
then adjust and tighten the screw again.
