Color Inkjet Printer
JV33-130/160
3-44
3-7.
Overhaul of Other Parts
The JV33-130/160 d
rive system part
s are as follows.
Part
Reference page
3-7-1. Cutter Unit Assembly
p.
3
-
45
3-7-2. Linear scale
p.
3
-
48
3-7-3. Adjustment of the station height
p.
3
-
50

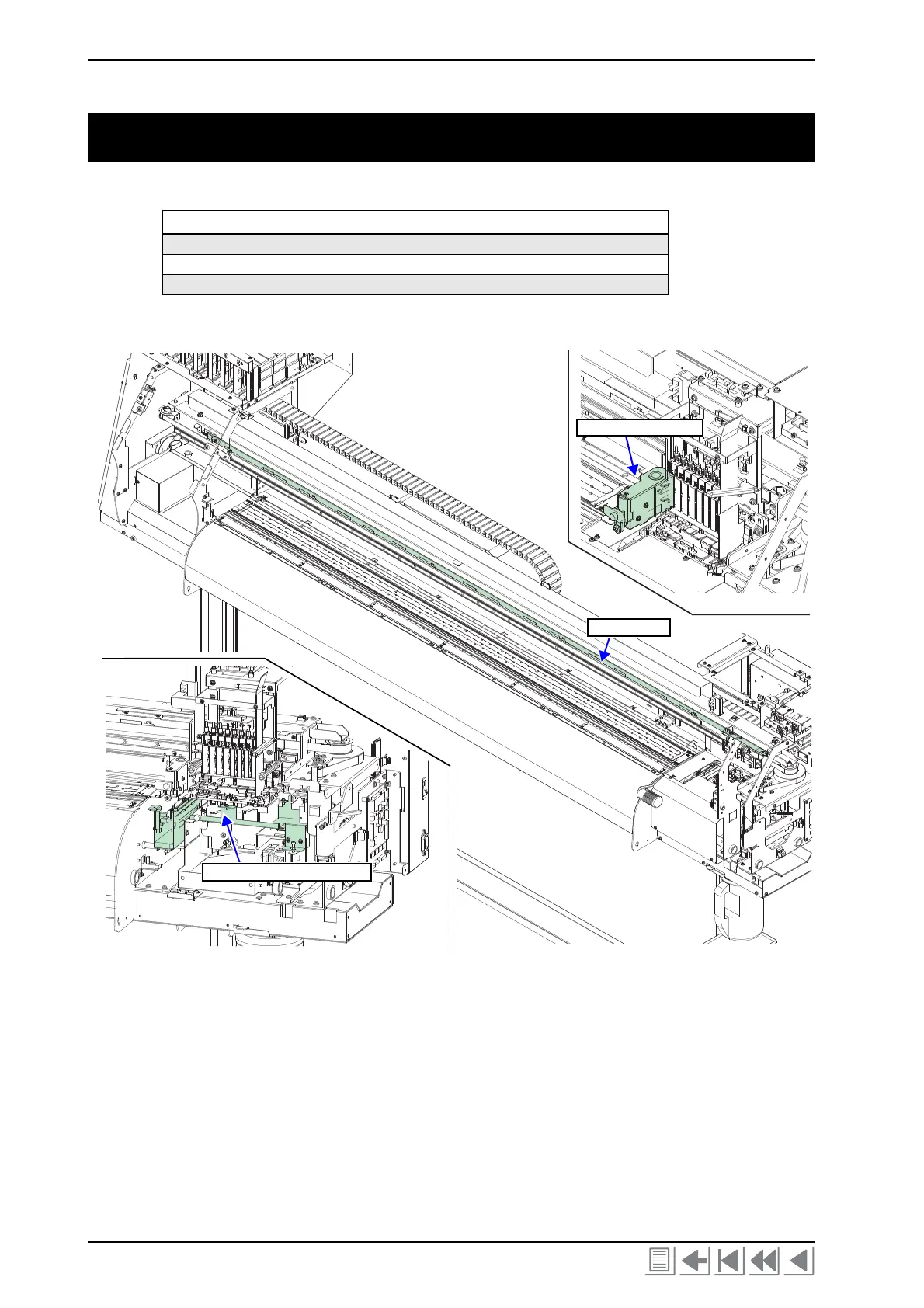

~ Head Assembly ~
Cutter Unit Assembly
Linear scal
e
Adjustment of the station
height
113
115
Table of Contents
Table of Contents
5
Maintenance Manual
1
Caution Label
4
Precautions in Maintenance
8
Notes on Repair
8
Preliminary Checks
9
Tools Required for Maintenance Work
10
Tools to be Used at Disassembly and Reassembly
10
Adjustment Tools
10
Specifications of the Main Unit
11
Chapter 2 Operation Principle and Functions
13
Contents
14
Operation Principle
14
Sequence at Power-On
14
Origin Point Detection
14
Machine Configuration
15
Media Detection
15
Set up
15
Sequence of Maintenance Function
16
Fill up Ink
17
Ink Supply Control
19
Ink System
19
Cartridge Control
24
Functions
32
ADJUST Function
32
Default Set
34
Exchange Parts
38
TEST Function
39
Check Pattern
40
Motor Test
41
Sensor Test
45
Paper Sensor
46
Lcd Test
46
Skew Check
48
Linear Encoder
49
Ink Cartridge
49
Special Key Function
50
PARAMETER Function
51
Operation Flow
52
Outline
52
Setup
53
Maintenance
55
Machine Set
58
Common Setup
59
Information
60
Adjust
61
Test
64
Parameter
68
Chapter 3 Overhaul / Adjustment
71
Outline
72
Tools and Jigs
73
Printer Front Panel
74
Overhaul of Covers
75
Overhaul of Ink-Related Parts
76
Head Unit
77
Filling Ink
79
Pump Motor
82
Capping Assembly
83
Major Parts for Washing Cartridge Assembly
85
Overhaul of Pcbs
88
Main PCB
89
Station PCB
95
Overhaul of Sensors
96
Overhaul of Driving Parts
97
X-Axis Motor
98
Y-Axis Motor
101
Y-Axis Drive Pulley
105
Y Drive Belt
109
Wiper Unit
112
Overhaul of Other Parts
114
Cutter Unit Assembly
115
Linear Scale
118
Adjustment of the Station Height
120
Chapter 4 Troubleshooting
123
Outline
124
Rough Identification of the Source of the Trouble
124
Checking Procedure
124
Troubles for Which Error Messages Are Displayed
126
Troubles for Which Error Messages Are Displayed
127
Error Messages and Corrective Measures
127
Warning Messages and Corrective Measures
132
Detailed Methods of Coping with the Malfunctions
135
Electrical Troubleshooting
135
Chapter 5 Explanation of Electrical Parts
137
Outline
138
Power Supply
138
Main PCB
138
Pram Pcb
138
Station PCB
138
X-Axis Motor Relay PCB
138
Operation Explanation
139
Power Supply
140
Circuit Board Specifications
142
Pram Pcb
143
X-Axis Motor Relay PCB
144
Ink Slider PCB
145
Keyboard PCB
145
Encoder PCB
145
Take-Up PCB
145
Head Memory PCB
146
Led Pcb
146
Electronic Block Diagram
147
Connection Diagram Outside Main Unit
149
