Mindray DC-40 User Manual

13-24 Probes and Biopsy

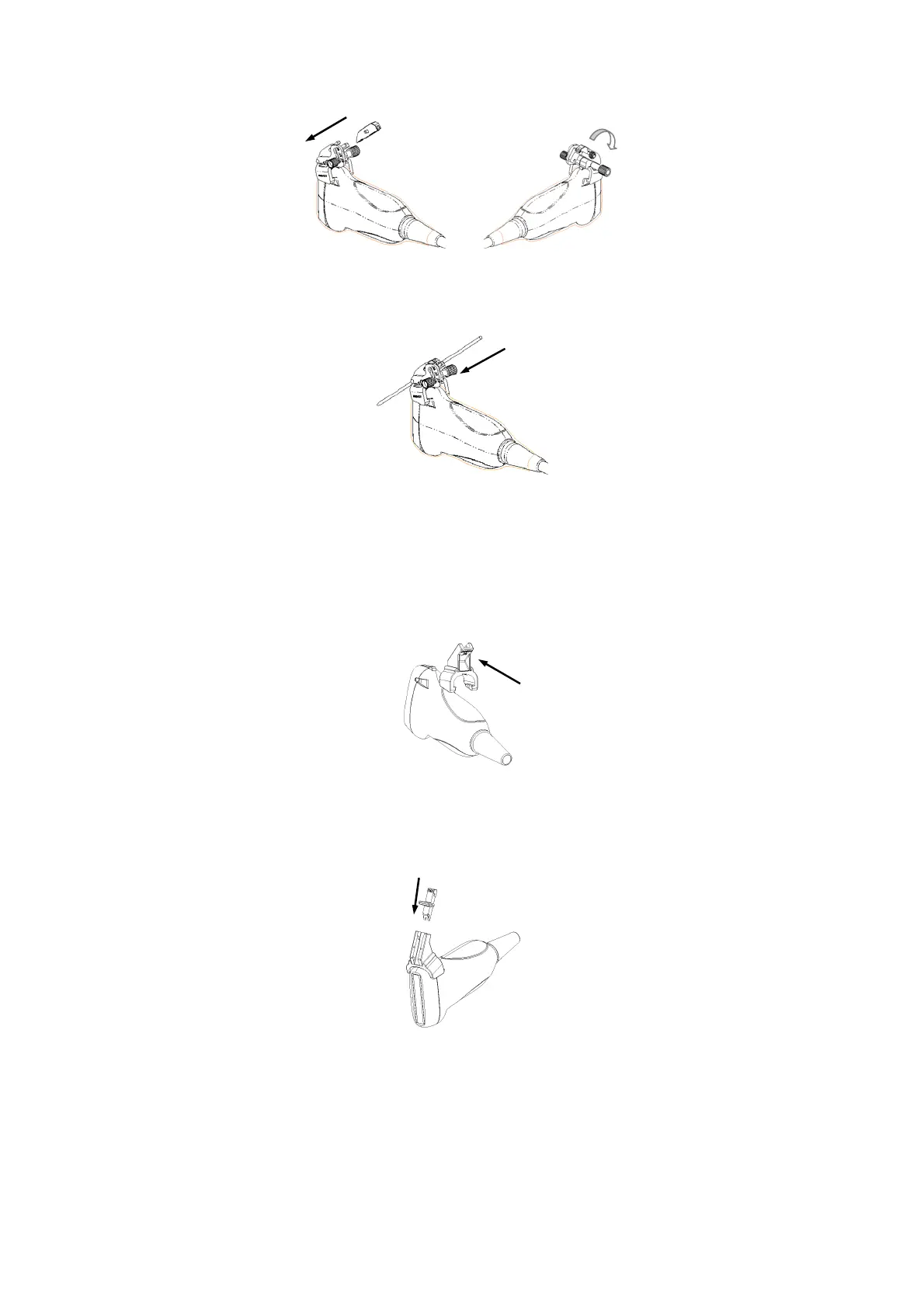

(5) Screw the nut of the block to secure the block.
(6) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.
Plastic needle-guided bracket:
(1) Put on the sterile probe sheath.
(2) Hold the probe by one hand, select the proper needle-guided bracket, and hold it
with the other hand. Align the narrow end tab of the needle-guided bracket with
the groove of the probe, then push the needle-guided bracket forward, making
the tabs and the grooves of the needle-guided bracket to match with the grooves
and tabs of the probe.
(3) Check manually to confirm that the needle-guided bracket is securely installed
on the probe.
(4) Select a proper guiding block and push it into the groove above the angle block,
and clamp it tightly.
(5) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
