System Preparation 3-11
 Function setting
The function of the footswitch can be set, for details, please refer to “12.1.6 Key
Configuration”.
3.6.3 Graph /Text printer
3.6.3.1 Connecting a Local Printer

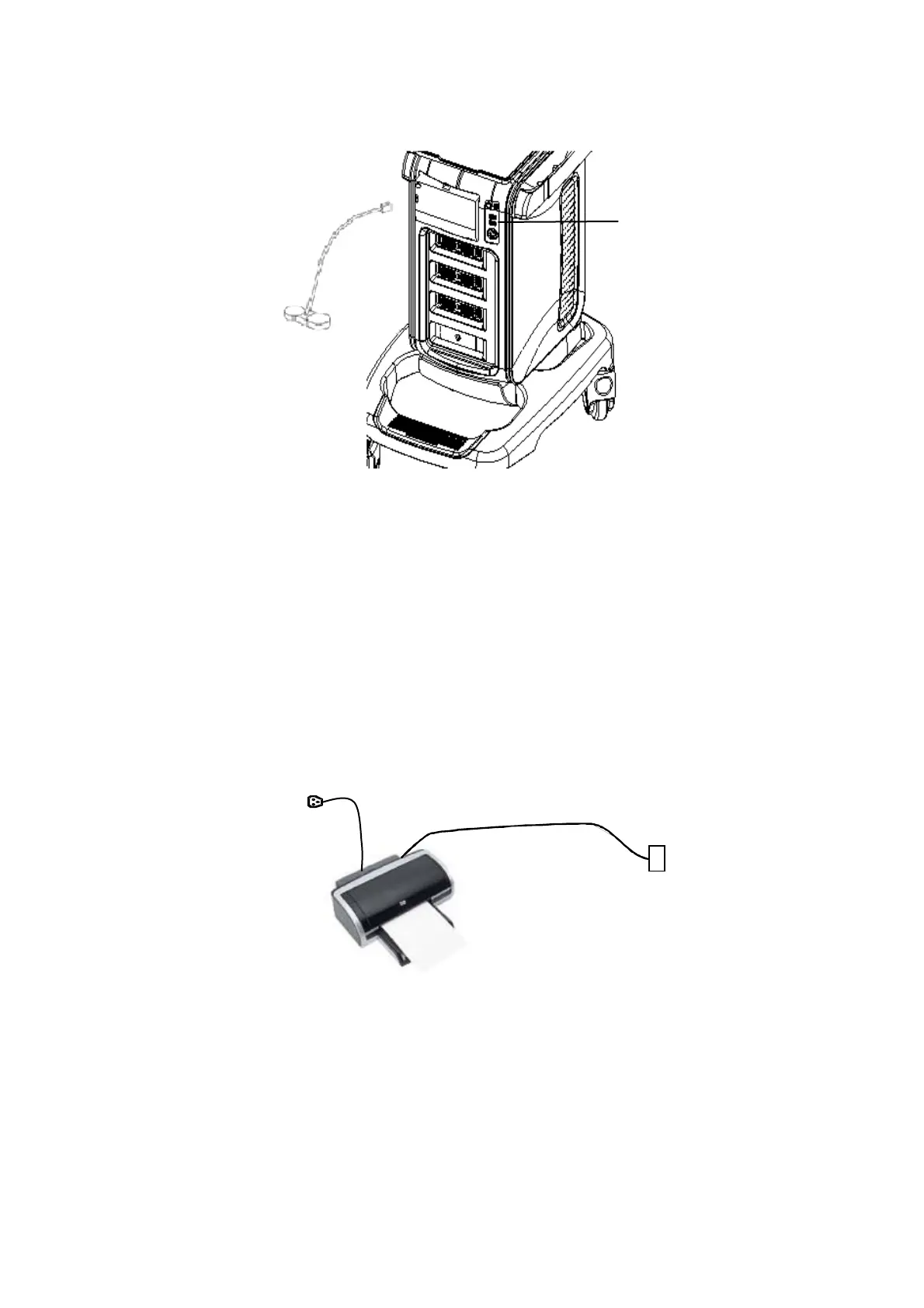

As shown in the figure below, a graph / text printer has a power cord and data cable. The
power cord shall be directly connected to a wall receptacle as required.
1. Connect the data cable with the USB port on the ultrasound system.
2. Plug the other end power plug into an appropriate outlet.
3. Power on the system and the printer.
4. Check the printer status:
z Enter [Setup]Æ[Print Preset]Æ“Printer Driver” page, printers that are installed
automatically will be displayed in the list with the “Status” of “Ready”.
Data cord
USB port
Power cord
USB port

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
