Mindray DC-40 User Manual

2-12 System Overview
No. Name Function
<1> Pencil probe port Pencil probe port (reserved).
<2>
Mic In port
Use for connecting microphone to record vocal
comments (reserved)
<3> Two USB ports Used for connecting USB devices.
<4> ECG lead signal input
port/external ECG signal input
port
Connects to ECG leads, to directly obtain patient
electrocardiosignal/used for connecting the signal
output port of ECG monitor.

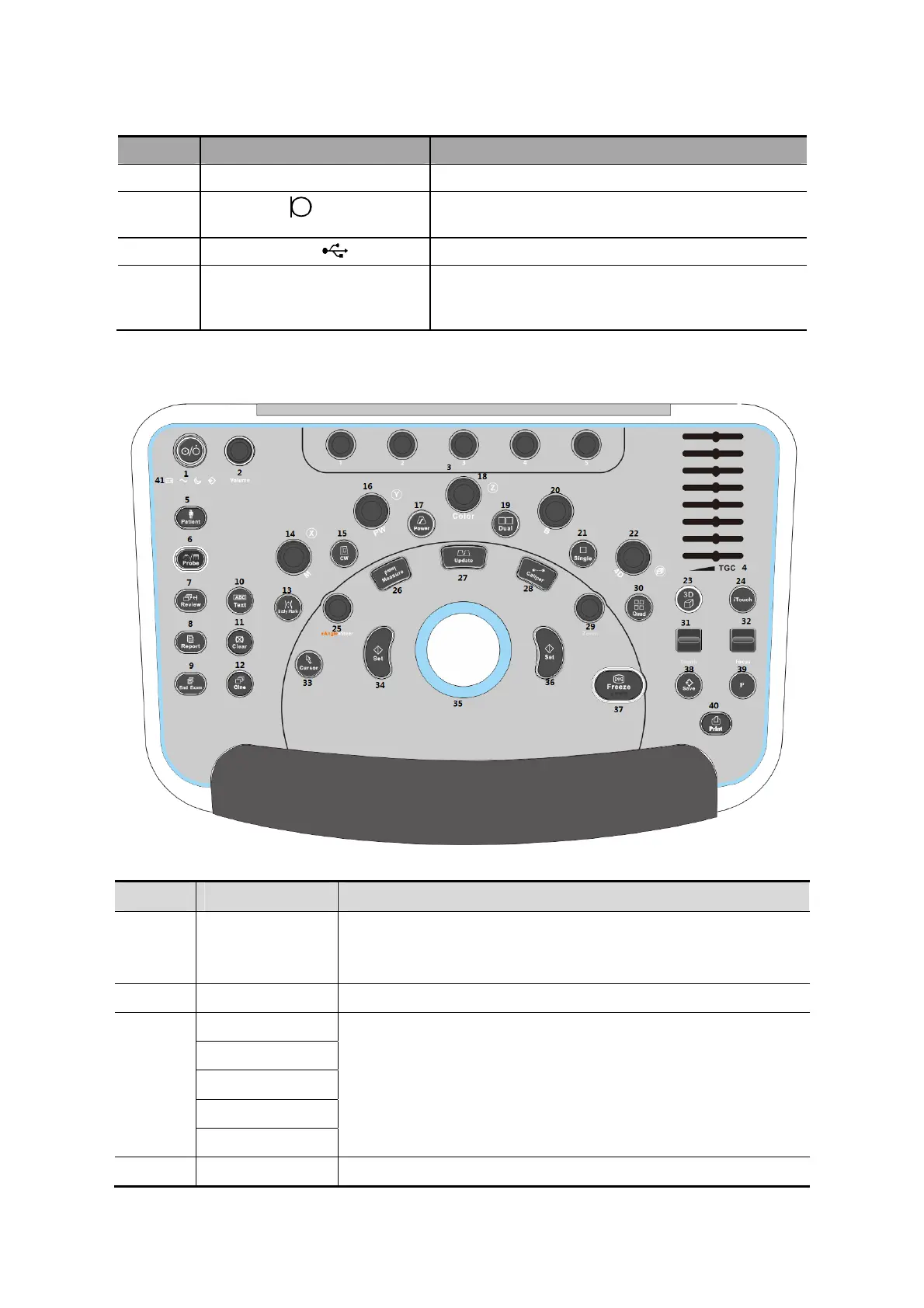

2.10 Control Panel
No. English Name Description
1.
/
Power button
Press the button to turn on the system, the system enters the
work status and the indicator becomes green.
2.
Volume Adjust the volume.
3.
/
Adjust the corresponding functions on the touch screen.
/
/
/
/
4.
TGC Slide to adjust the depth gain.

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
