Mindray DC-40 User Manual

E-4 Ultrasound Gel Warmer

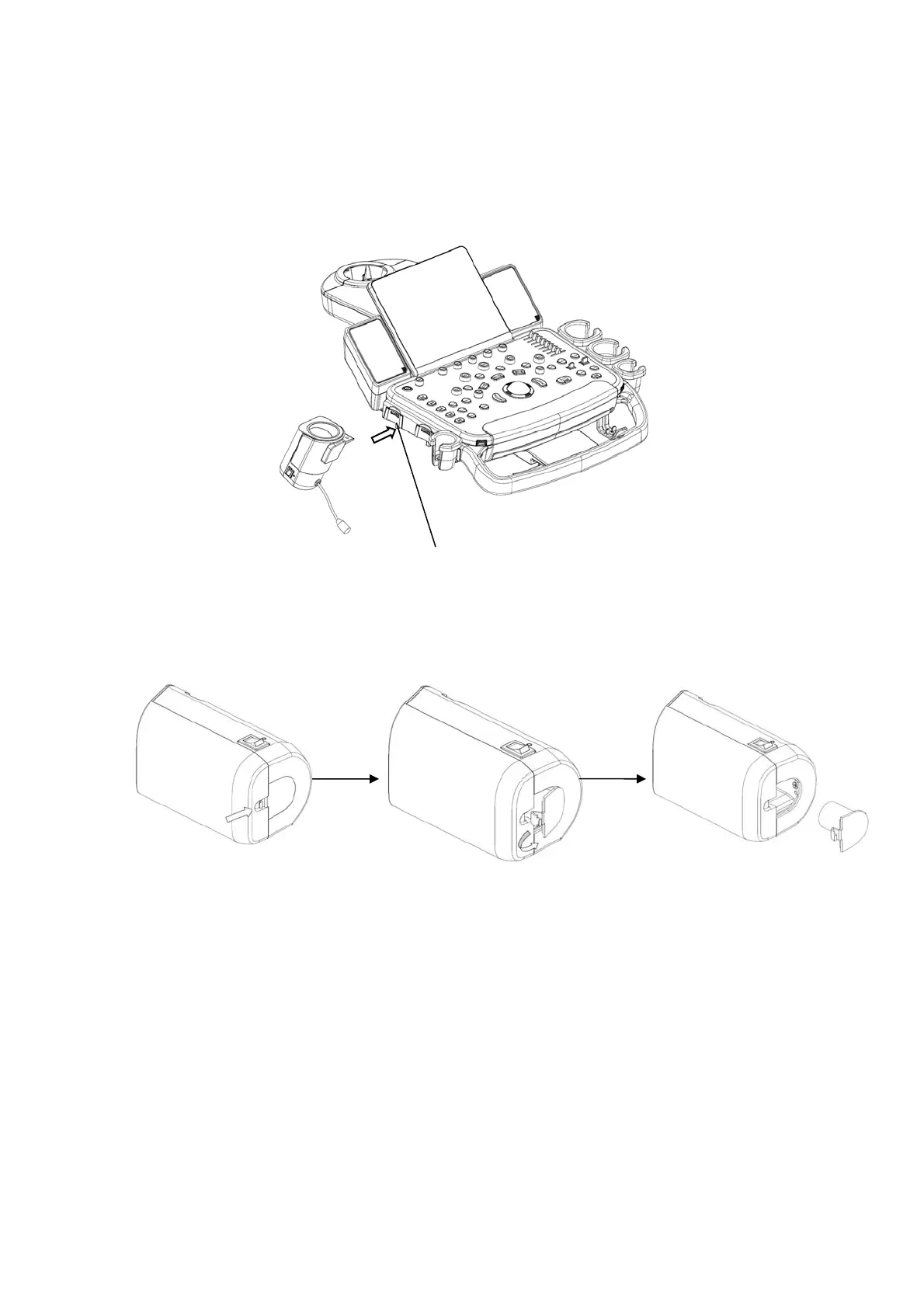

E.6 Remove the Warmer
1. Pull out the power cable from the control panel jack.
2. As shown in the above figure, press the clip in the direction of the arrow to remove the
warmer.
E.7 Cleaning
1. Press the clasp on the bottom cover to release the cover.
2. Remove and clean the cover.
Clip

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
