9-26 Structure and Assembly/Disassembly
Operate the following procedures to remove the control panel assembly.

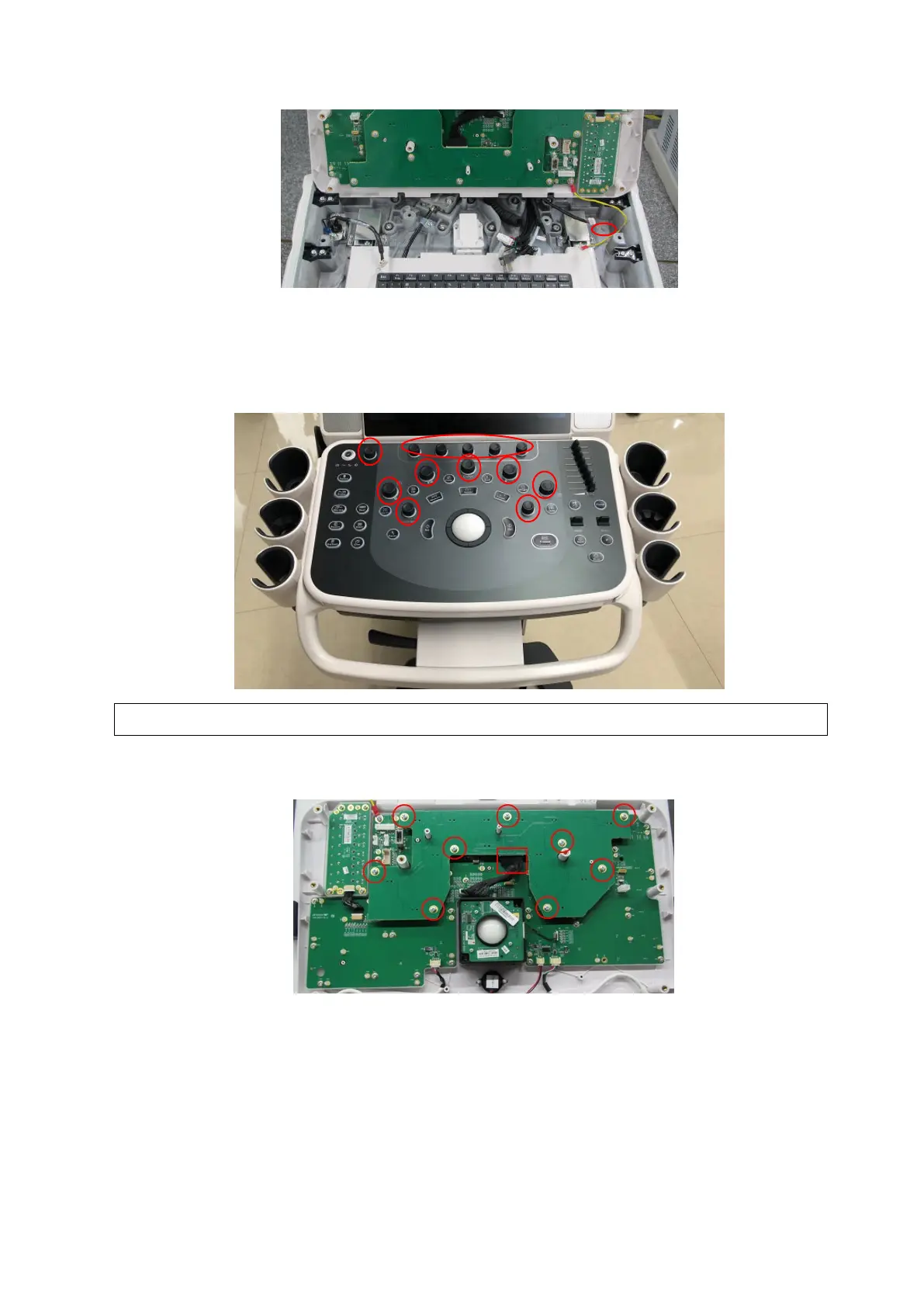

9.3.15.1 Encoder Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove six big encoder caps and seven small encoder caps.
2. Unscrew nine PT4 X 10 tapping screws from the encoder board. Disconnect the plug
connecting the encoder to the keyboard to remove the encoder assembly.
9.3.15.2 Trackball
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
Unscrew two M3 X 8 SEMS screws fixing the trackball. Disconnect the plug connecting the trackball
and the keyboard to remove the trackball assembly.
NOTE:
To avoid incorrect installation, please take notice of the size of caps.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
