Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-27
9.3.15.3 TCG Board
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove

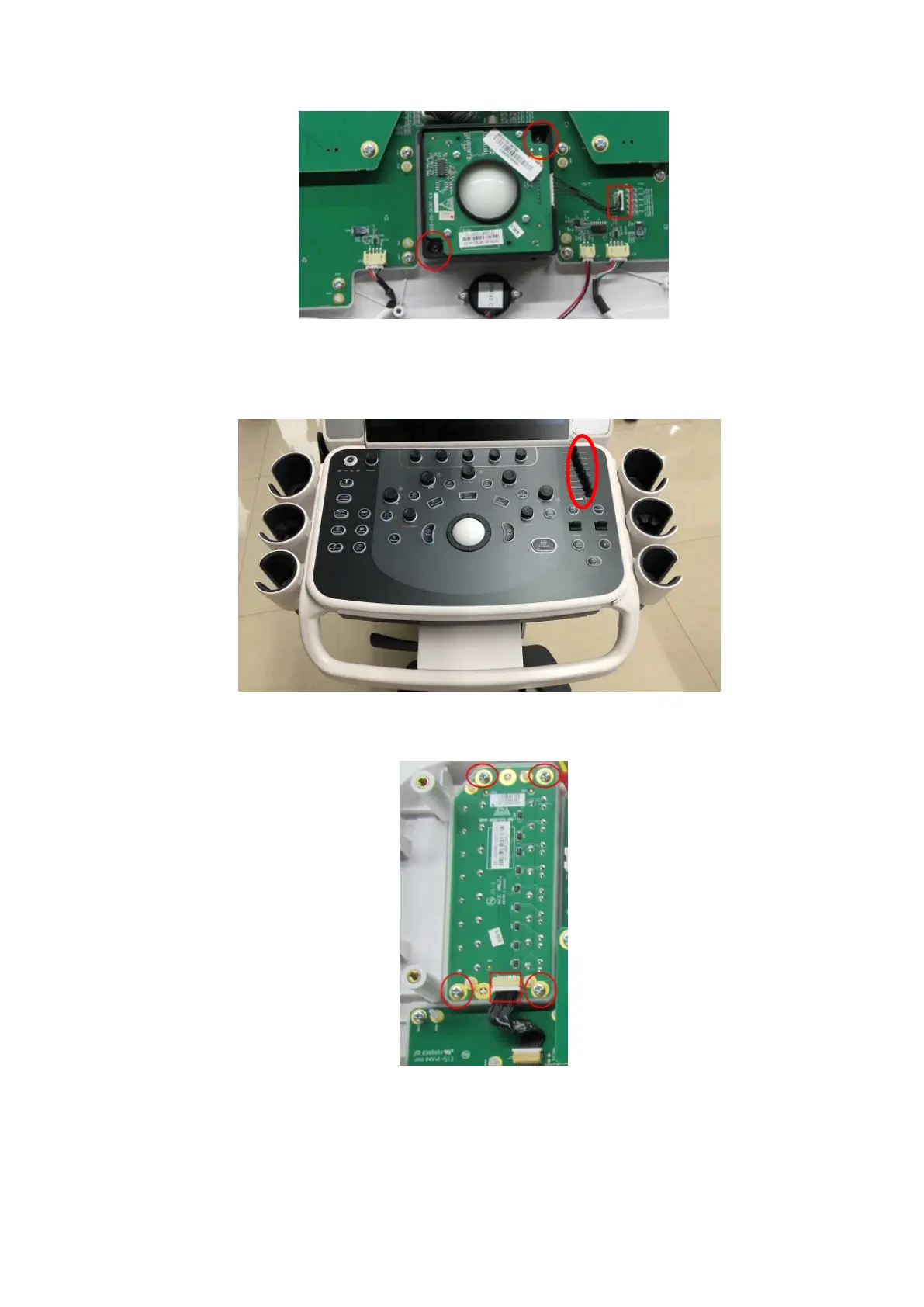

1. Remove eight caps of TCG sliders.
2. Unscrew four PT3 X 10 tapping screws fixing TCG board. Disconnect the plug connecting TCG
board to keyboard to remove TCG board and the silicon.
9.3.15.4 Buzzer
The disassembly tool: cross-headed screwdriver (M2).
