Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-39

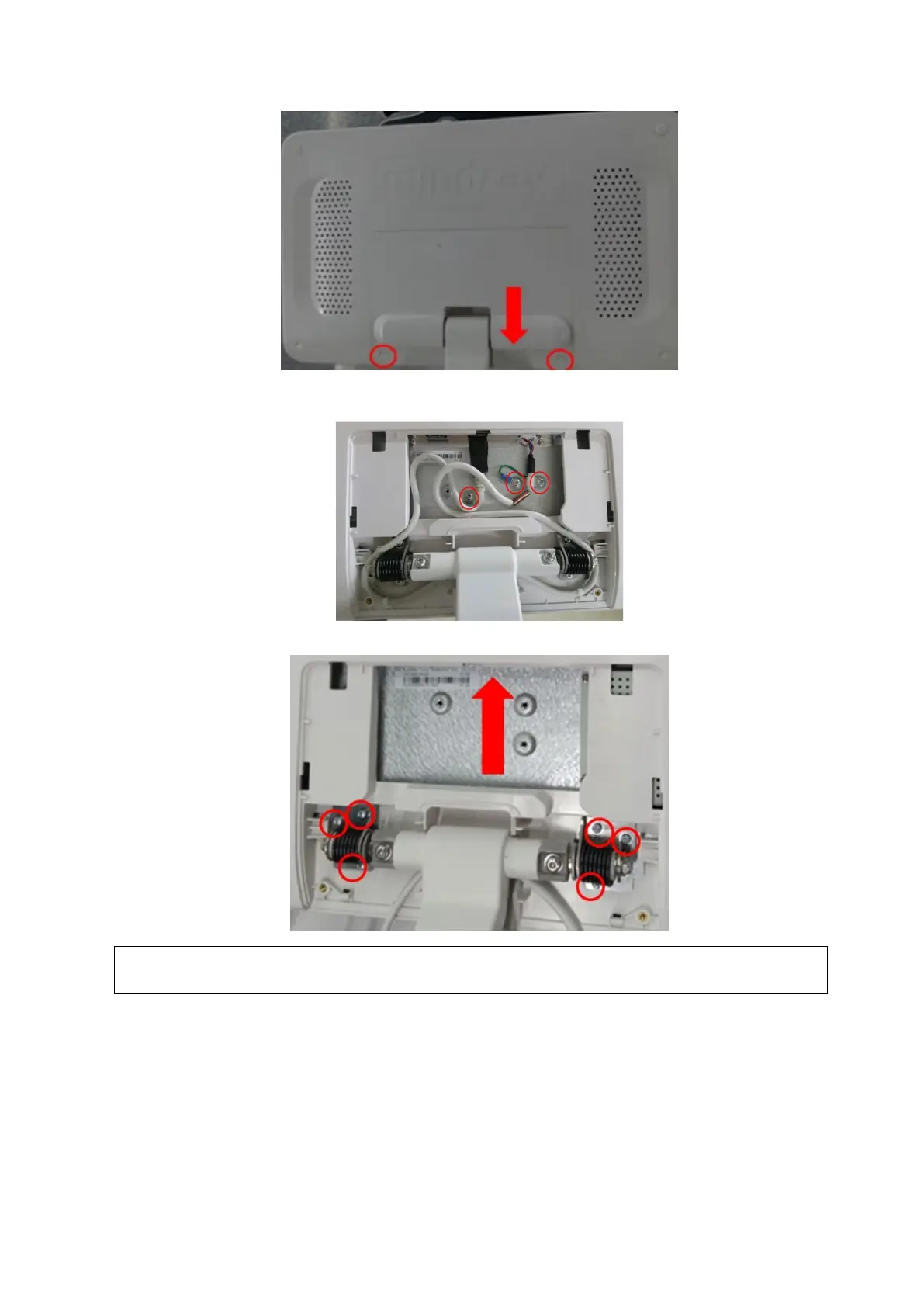

2. Unscrew three M4 X 12 screws. Remove the power supply cable of the display and unplug the
signal cable.
3. Unscrew six M4X12 screws, and remove the display assembly upwards.
4. Unscrew two M4 X 12 screws, remove the cable fix board.
Note:
The metal part is inserted in the hole of the plastic part. The damage of the display’s
rear cover may occur if removed by force.
