Mindray DC-70 Exp User Manual

9-40 Structure and Assembly/Disassembly

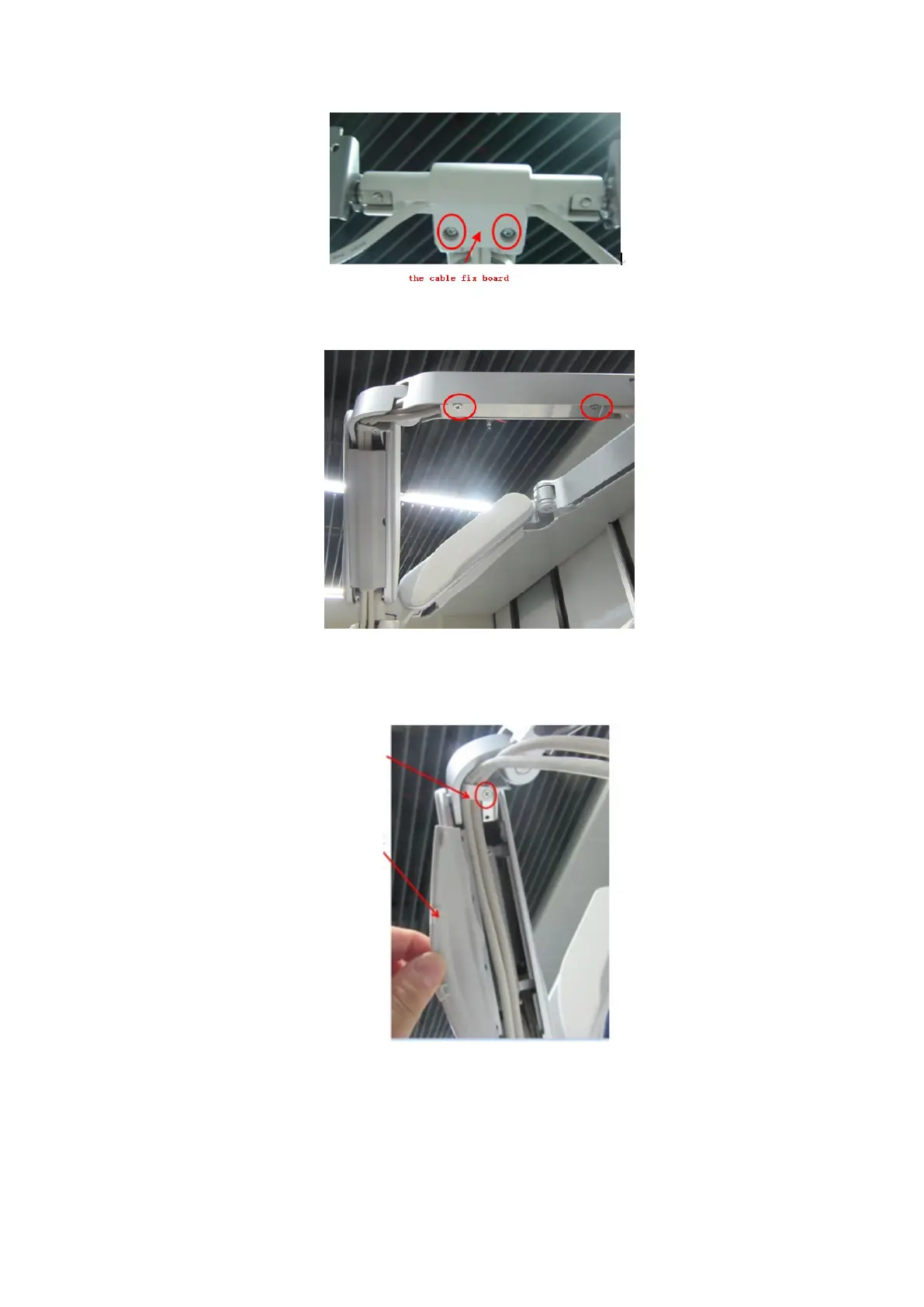

5. Remove two M3 X8 semicircle-shaped cover, remove the cover.
6. Unscrew the M3X8 countersunk screw to remove the pressing line plate, and uncover the
decorative cover as shown in the following figure to take out the signal and power cables of the
display from the supporting arm.
7. Use a flat-headed screwdriver to remove the clasp of the cable protection cover of the display
supporting arm in the direction as shown in the left figure, and remove the display supporting
arm in the direction as shown in the right figure.
Pressing line plate
Decorative cover

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
