Mindray DC-70 Exp User Manual

Optional Installation/Assembly 10-5
10.2.1 ECG Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).

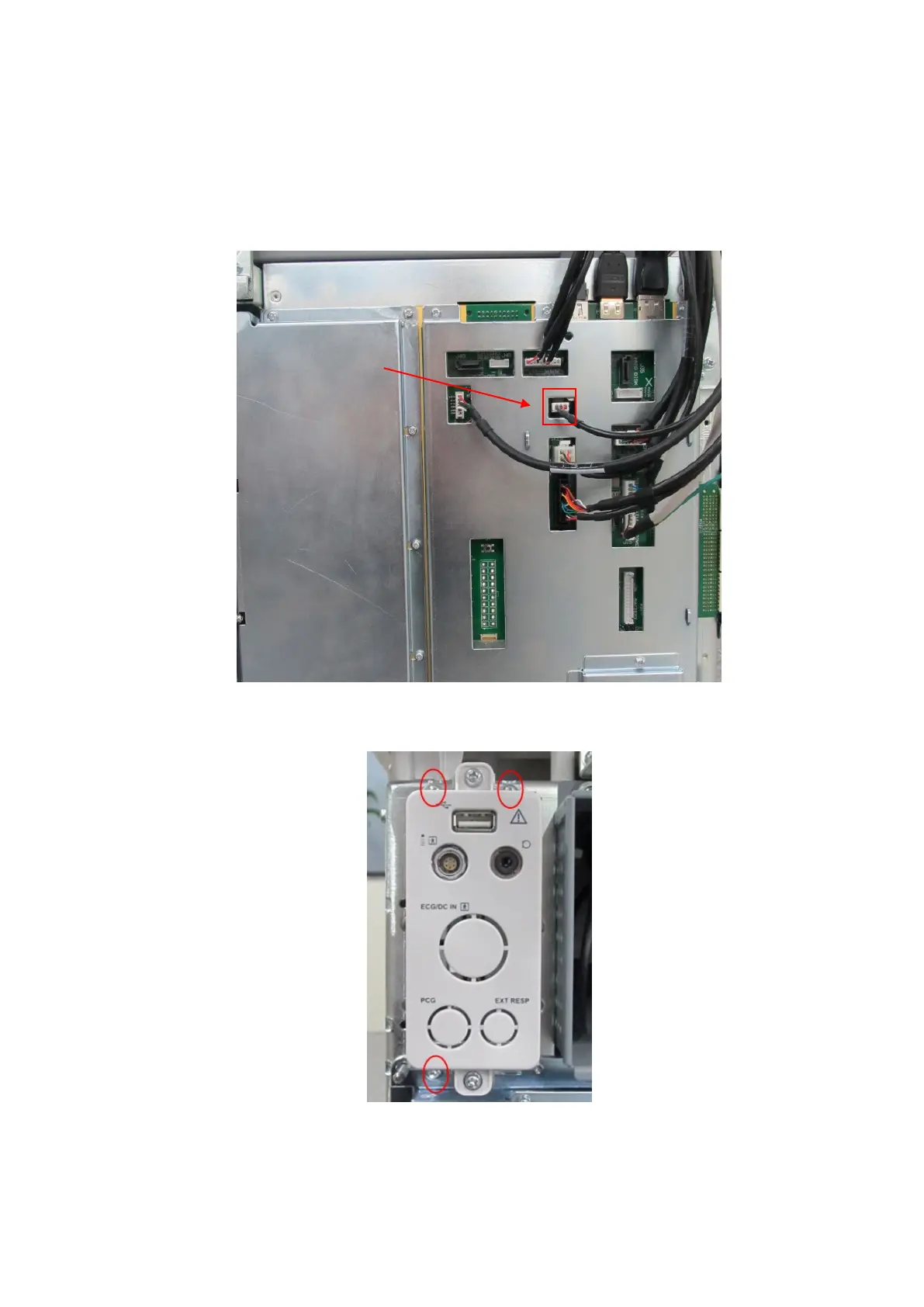

1. Remove the left/right side panels and the front cover (refer to chapter 9.3.2).
2. Unplug MIC cables of front output panel, and release the clasp.
3. Unscrew three M4 X 8 screws fixing the assembly of front output panel, and pull the assembly
of front output panel out.
4. Fix three M4 X 8 screws on ECG assembly and assemble ECG.
MIC

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
