Mindray DC-70 Exp User Manual

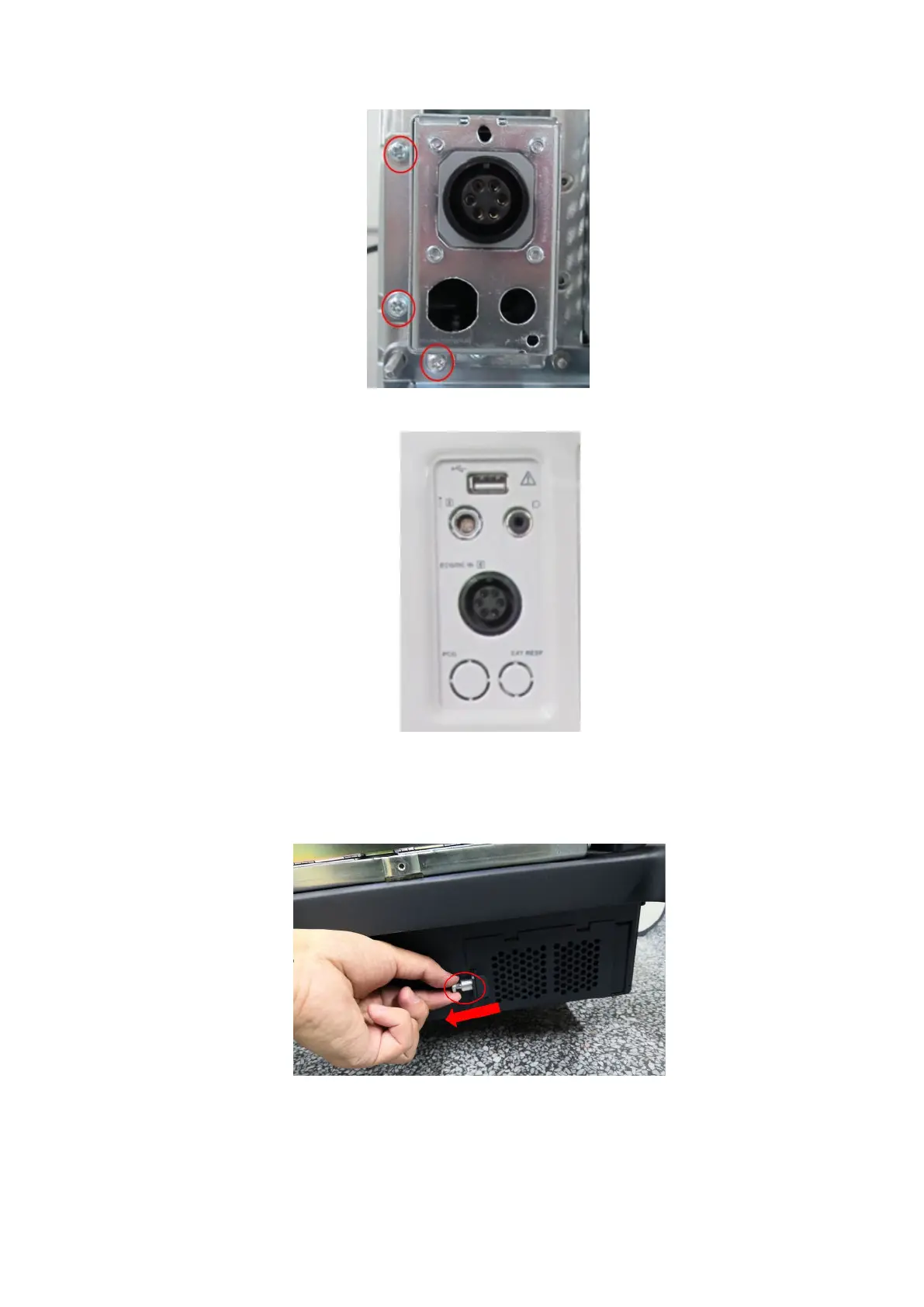

10-6 Optional Installation/Assembly
5. Install the output board, left/right side panels and front cover in reverse order.
10.2.2 Battery Assembly
1. Pull out the spring plunger in the direction of the arrow, and open the electronic assembly door
on the base.
2. Mount the battery on the electronic assembly.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
