Procedures

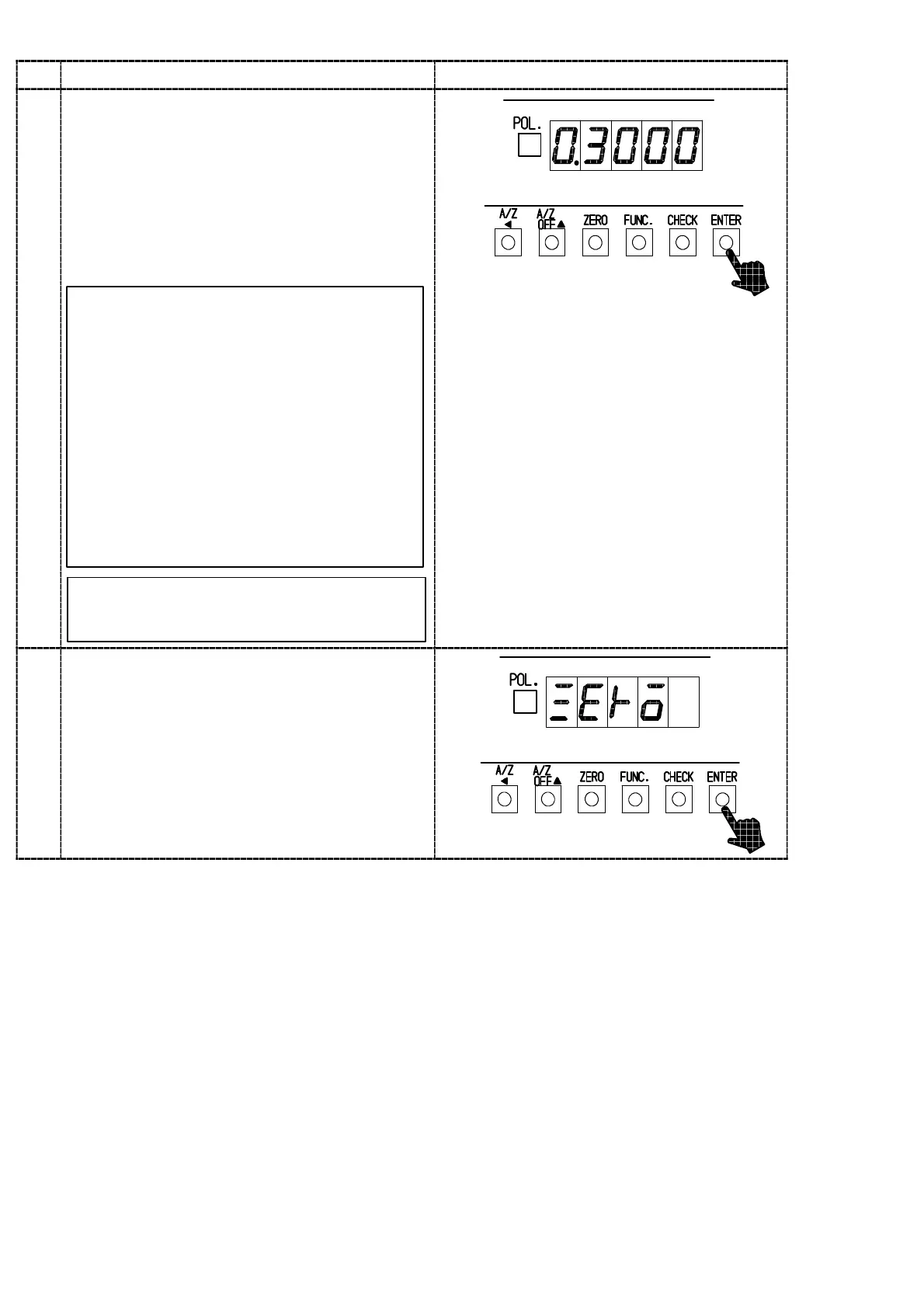

Press the “ENTER” key”.
The load display will show “0.3000”, and the
digit of 10
0
will flash on and off.
In case that calibration has completed already,
the registered output value of load cell at that
time will be displayed.
Set the output value for load cell corresponding
to the maximum display value that has set in
step 5 with “A/Z A”, “A/Z OFF Y” and
“CHECK” keys.
7
Though the number of digits has not
prepared in the “Inspection data” for load
cell so many as shown in the right figure,
extra digits are necessary for the
compensation with the standard point at
internal of the instrument.
In case of actual setting, insert “0”, into the
extra digits.
As for the value for extra digit, when tare
compensation and fine adjustment on load
are applied, it will be rewritten as a
compensated value automatically.
Setting range for the output of load cell is
from 0.200 0 mV/V to 3.100 0 mV/V.
“A/Z A ” key ：Set value carry key
“A/Z OFF Y” key ：Set value Increment key
“CHECK” key ：Set value Initialization key
By pressing the key continuously,
increment can be provided continuously.
8
Press the “ENTER” key.
The load display will show “ZERO”.
Here, set the instrument with initial load
application.
