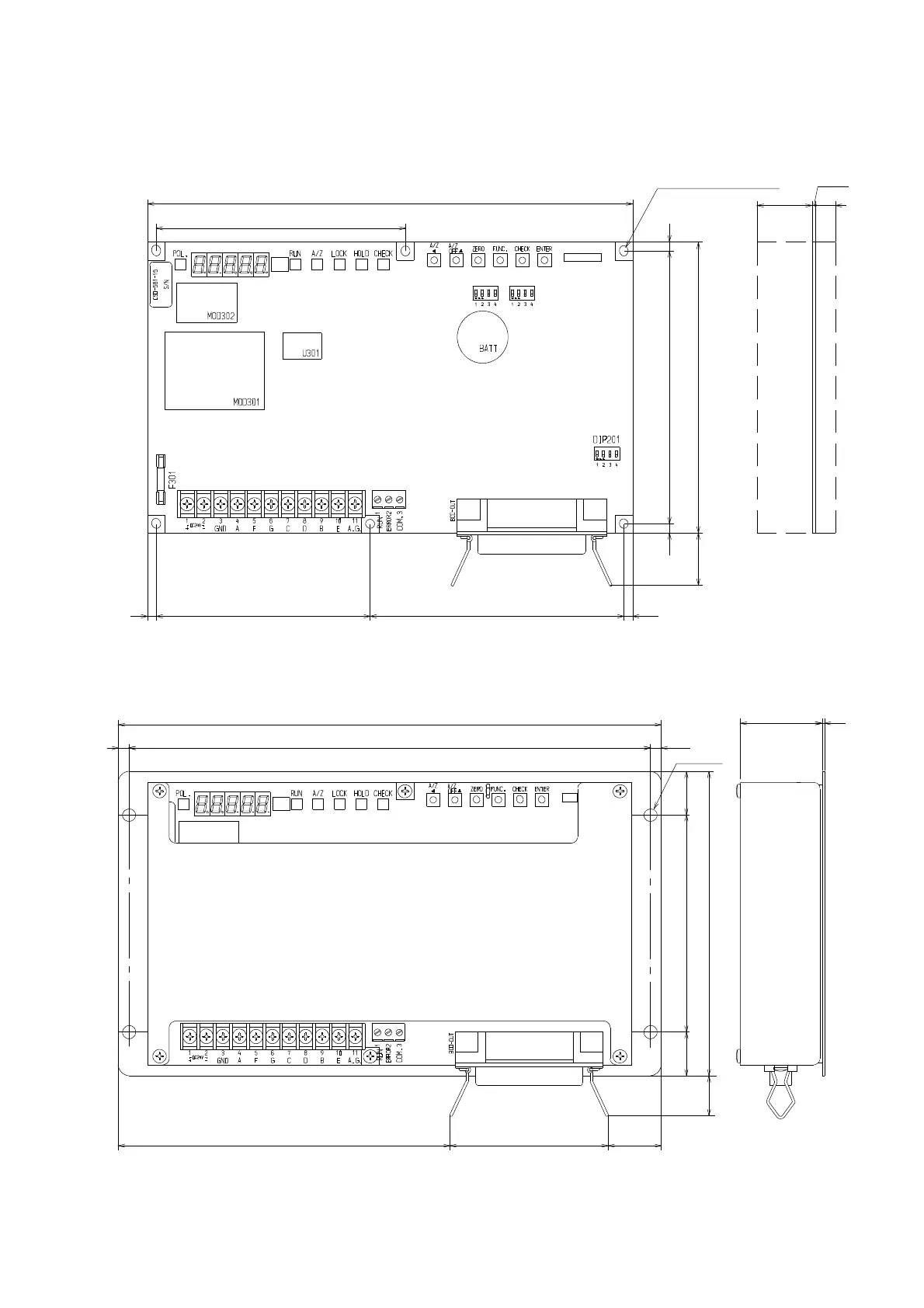

Each dimensions of the instrument and required dimensions for the environmental
spaces are as follows:
Dimensions for installation
220
113
4
97
115
122 130
4
6−φ4 land □6
9
1.6
25
(25)
4
4
Required space for application
Required space for application
Unit：mm
Dimensions when the optional metal cover(CSD581−P80) is installed.
250
240
5
(5)
4−φ6
(152.5)
(73)
(24.5)
(19)
140
100
20(20)
1
(37.6)
Unit：mm
CN202
DIP202
DIP203
