Procedures
・Check the input signal for external control

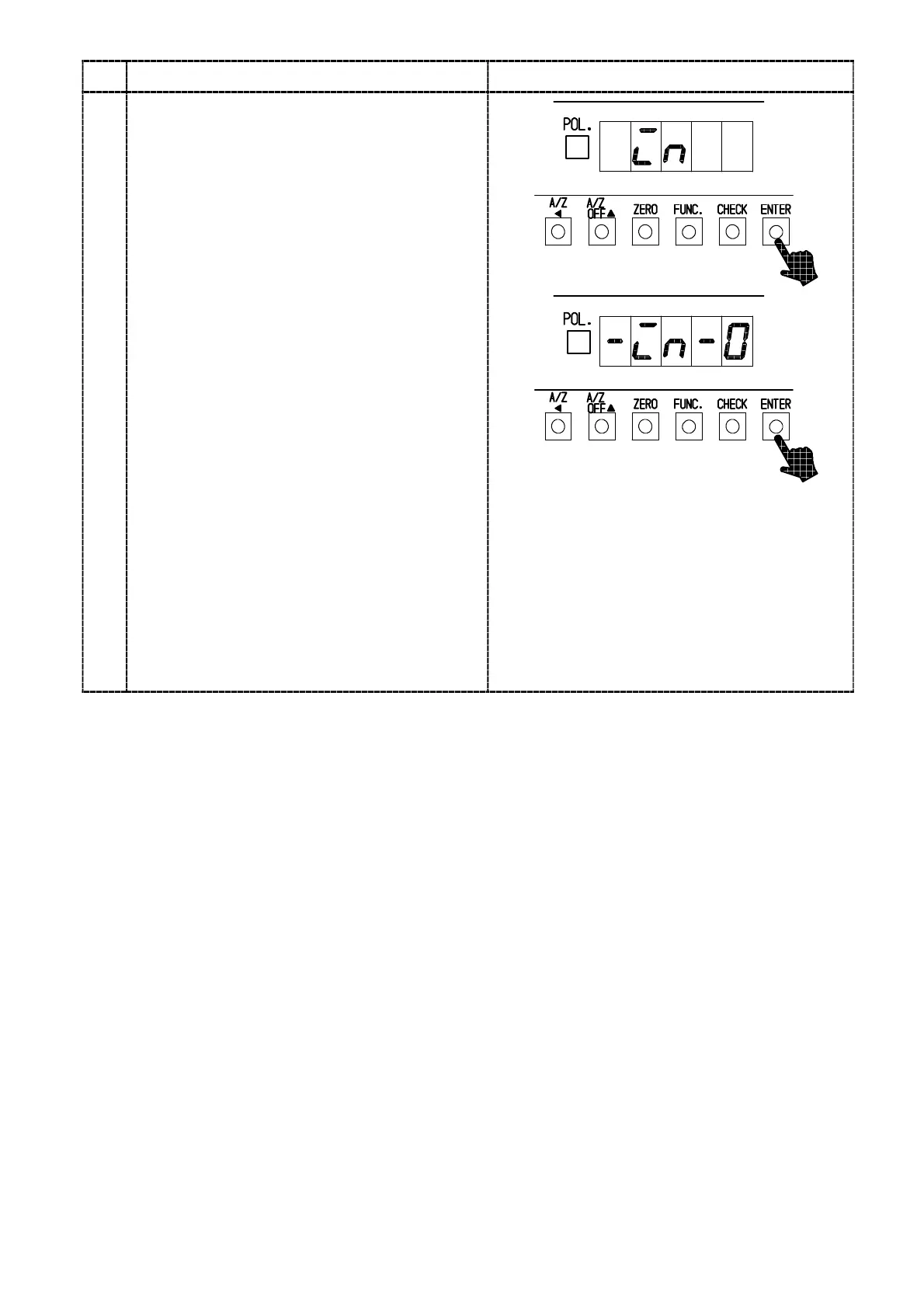

Press the “ENTER” key.
The load display will show “IN”.
By pressing the “ENTER” key again, the load
display will change “−IN−0”.
At this time, ON/OFF condition for external
control input signal can be monitored on LED
for status display, and on load display section.
5
RUN display ：ZERO input
A/Z display ：A/Z input
CHECK display ：A/Z OFF input
HOLD display ：HOLD input
LOCK display ：LOCK input
Load display 10
0
digit：SEL.1 input SEL.2 input
Load display 10
0
digit is “0”
：Open both SEL.1 and SEL.2.
Load display 10
0
digit is 1.：Short only SEL.1
Load display 10
0
digit is 2.：Short only SEL.2
Load display 10
0
digit is 3.
：Short both SEL.1 and SEL.2.
