Procedures

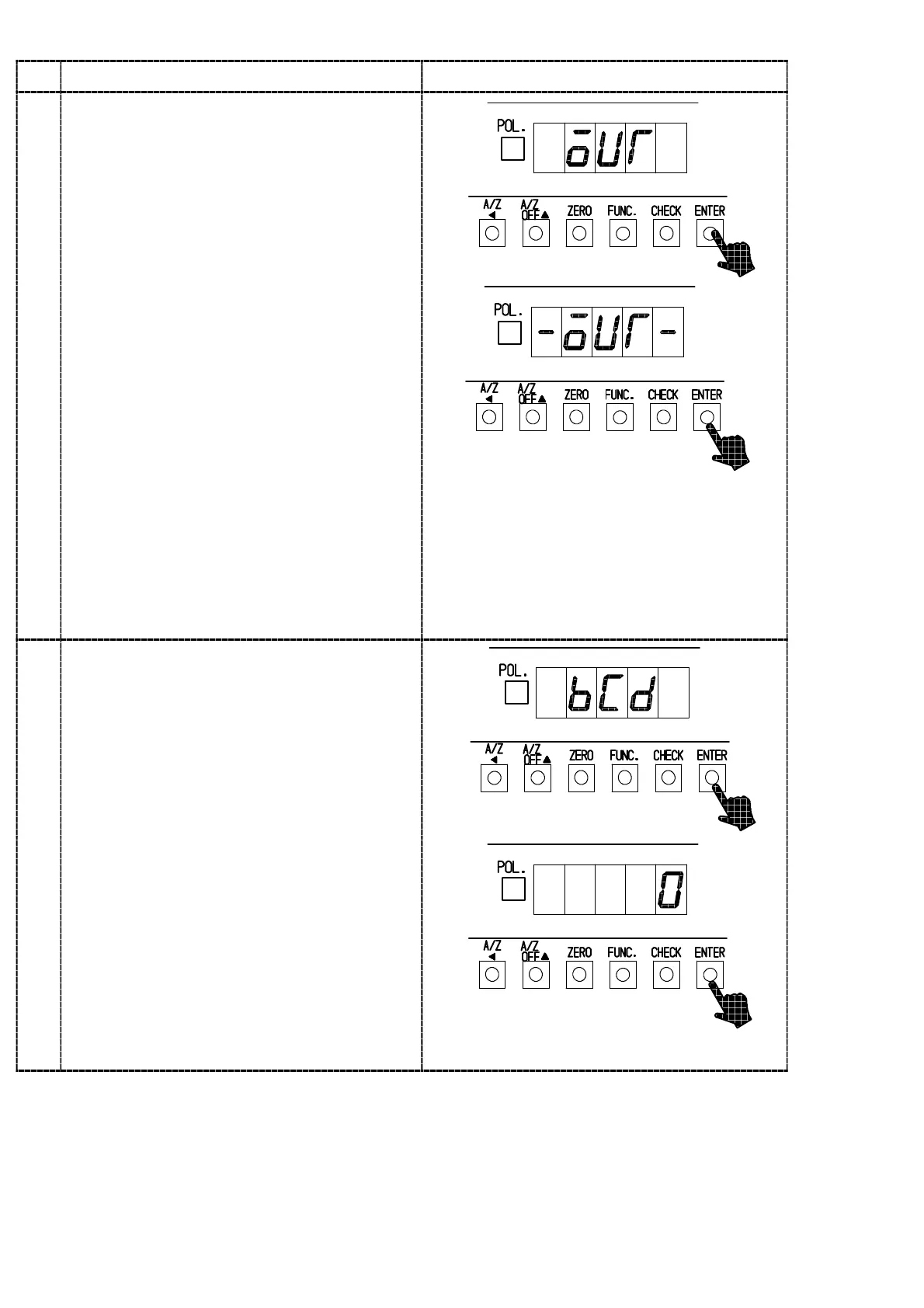

・Check on the output signal of open collector
Press the “ ENTER ” key.
The load display will show “OUT”.
Pressing the “ENTER” key again, indication
on the load display will change to “−OUT−”.
At this time, each open collector output will
vary by the right key operation and LED of
status display will light up as well.
6
“All are OFF.”
↓↑
“RUN”
↓↑
“ERROR”
↓↑
“All are ON”
“A/Z A” key：↓ “A/Z OFF Y” key：↑
“A/Z A” key ：Each contact output will be
ON continuously from the
left from above to below.
“A/Z OFF Y” key ：Output of each transistor
will be ON from the left
from below to above.
RUN display ：RUN output
A/Z display ：ERROR output
・Check on BCD output
Press the “ENTER” key.
“BCD” will show on the load display.
By pressing the “ENTER” key again, the
indication on load display will change to “0”,
and the digit of 10
0
will light on and off.
This time, when display value changes with the
right keys, BCD output will vary accordingly.
While the digit of 10
4
lights on and off, and
after the “A/Z A” keys is pressed once, then
“
”
7
,
“POL.” LED will repeat “Lighting on and off”
and “POL.” output for BCD output can be
confirmed.
“A/Z A ” key ：Set value carry key
“A/Z OFF Y” key ：Set value increment key
