6.0 Indication & Controls
This chapter describes the LED indicators and controls of the FX-400.
6.1 Indication and Controls
FX-400 Display Panel is equipped with the following
• 12 Control buttons with associated LEDs
• 16 button Numeric Keypad with Cursor buttons

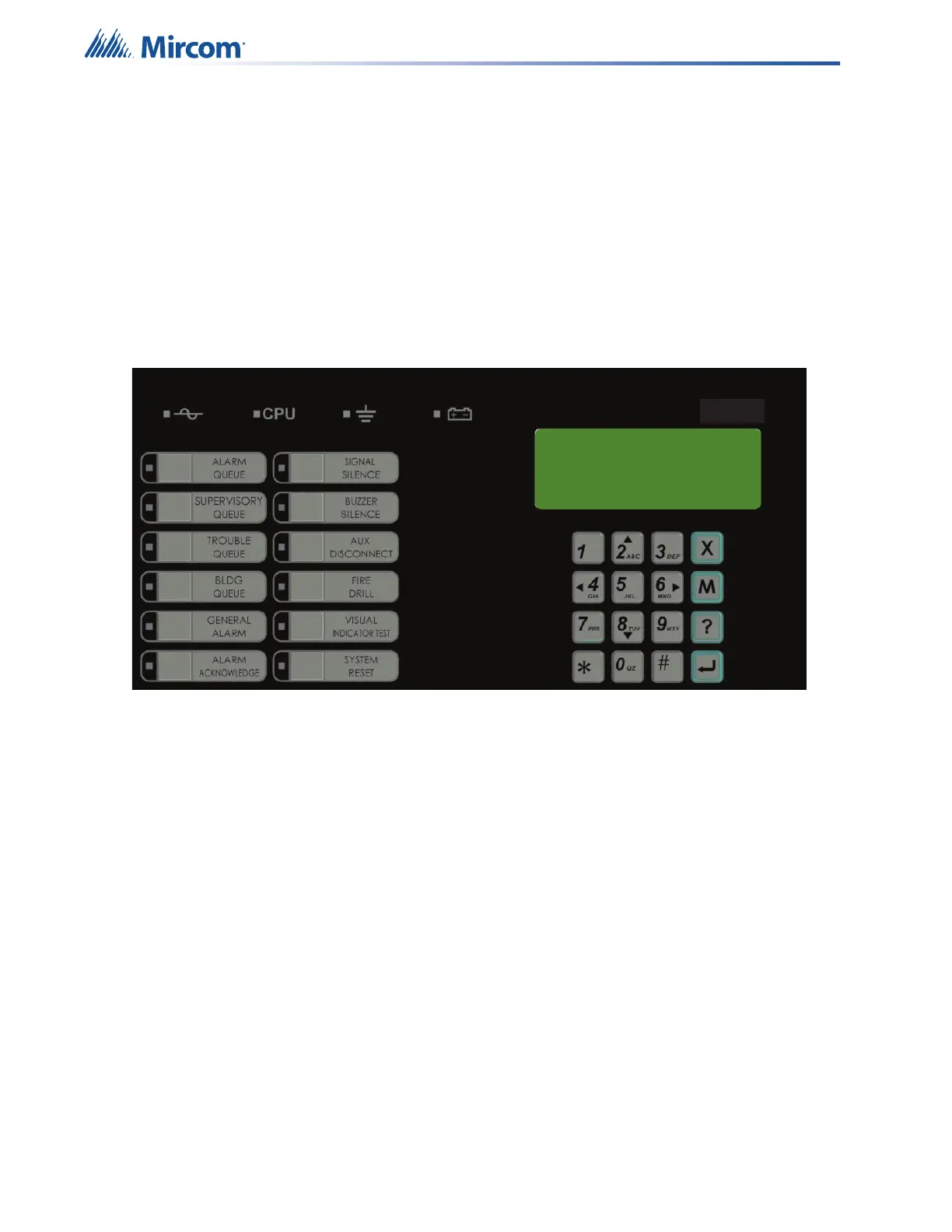

Figure 10 below shows the LED indicators and control buttons on the FX-400 front display.
Figure 10 LED Indicators and Control Buttons
6.2 LCD Display
The display is a four line, 20 character back-lit alphanumeric LCD. It displays information
regarding the panel, its circuits, and devices. An on-screen cursor is controlled by the cursor
buttons for menu selection and control. Report information provided by the LCD display
includes:
• Alarm Log
• Event Log
• Current Levels
• Device Information
• Verification and Maintenance Reports
Use the cursor buttons on the Numeric Keypad for menu selection and control. For more
information see 6.2.1 Numeric Keypad and Cursor Buttons section below.
