59
7.4.1

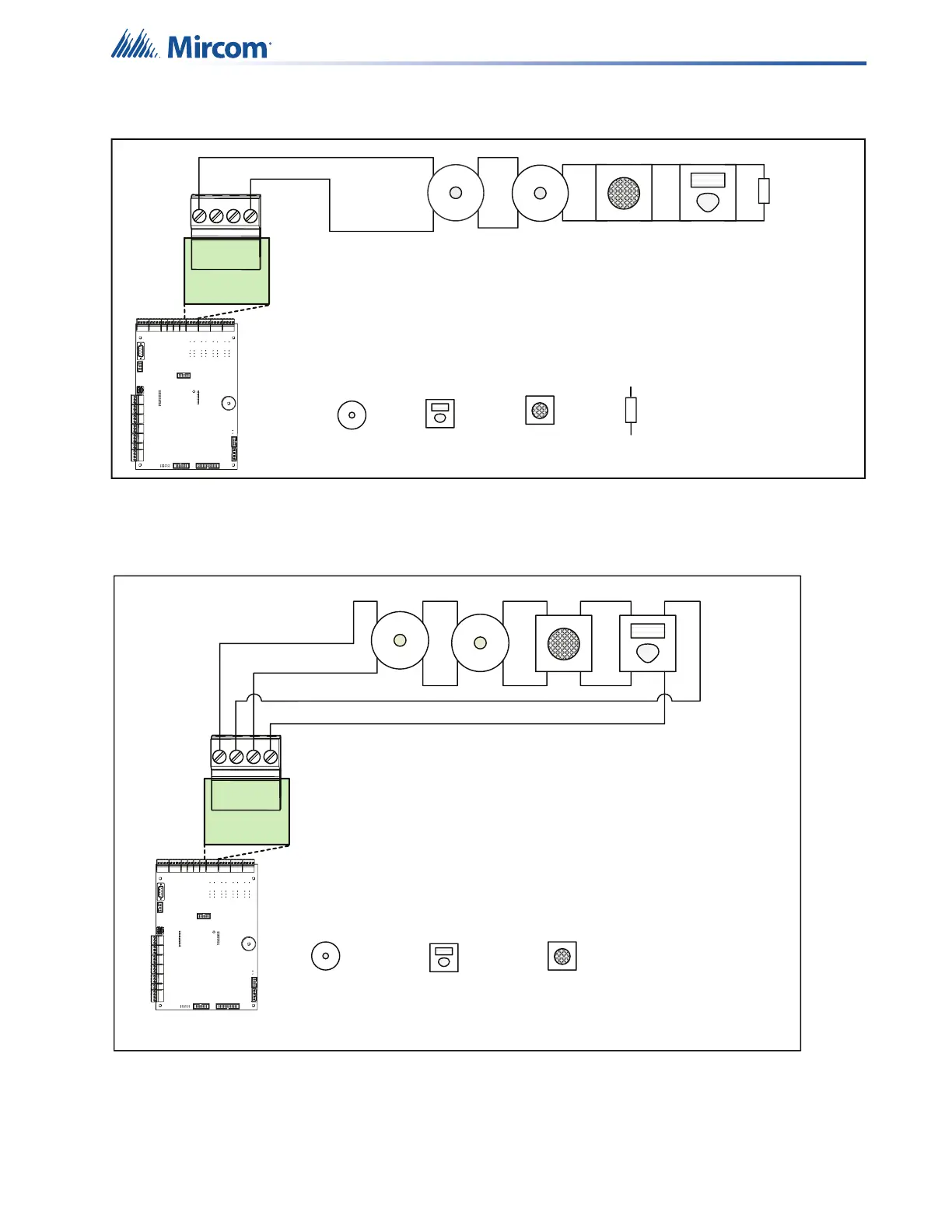

NAC Circuit – Class B Wiring
Figure 16
NAC Circuit – Class B Wiring
7.4.2
NAC Circuit – Class
A W
iring
Figure 17
NAC Circuit – Class
A W
iring
CLASS B
WIRING
NAC
CIRCUIT - 1
BELL
STROBE
EOL-392
HORN
NAC1
++
-
-
NAC CIRCUITS #2, #3
AND #4
ARE NOT SHOWN.
WIRE AS
SHOWN ABOVE.
BELL
STROBE
HORN
CLASS A
WIRING
NAC
CIRCUIT 1
NAC1
++
-
-
NAC CIRCUITS #2, #3
AND #4 ARE NOT
SHOWN.
WIRE AS
SHOWN ABOVE.
58
60
Table of Contents
Default Chapter
3
Table of Contents
3
1 FCC Notice
7
Notice for All FX-400 Series Built-In Udacts Sold in the U.S.A
7
2 Introduction
9
The FX-400 Addressable Fire Alarm Control Panel
9
General Notes
10
3 FX-400 Overview
11
FX-400 Fire Alarm Control Panel
11
Figure 1 Model FX-400 Single Loop (SLC) Fire Alarm Control Panel
11
FX-400 System Components
12
Table 1 FX-400 FACP System Components
12
Table 2 MGC MIX-4000 Series Compatible Addressable Devices
15
4 Installation
16
Mechanical Installation
16
Figure 2 FX-400 Mechanical Installation Instructions and Dimensions
16
Installation Tips
17
Connections and Jumpers
18
Figure 3 Port and Jumper Locations on Main Board
18
Table 3 Main Board Connectors and Jumpers
19
Table 4 Core Board Jumpers
19
Installing Adder Modules
20
Figure 4 Jumper on Back of Display
20
Figure 5 Main Board with All Modules Installed
21
Figure 6 Installing the PR-300 Polarity Reversal and City Tie Module
22
Table 5 PR-300 Polarity Reversal and City Tie Module Connectors and Jumpers
22
5 Operation
23
Addressable/Analog Devices
23
Table 6 Settings Permitted in UL864
23
Figure 7 MGC-3000 Configurator Date and Time Settings
24
Configurable Input Types
25
Table 7 Configurable Input Types
25
Output Types
29
Table 8 Configurable Output Types
29
NAC Circuit Operation
30
Single Stage Operation
31
Evacuation Codes
31
Positive Alarm Sequence
32
Remote Annunciator Operation
33
Figure 8 Enabling the Positive Alarm Sequence
33
Table 9 Annunciator Address DIP Switch Settings
34
Dialer Operation
35
Using the Operation Menu from the Control Panel
35
Figure 9 Operation Menu
36
Table 10 List Bypass Special Characters
44
6 Indication & Controls
48
Indication and Controls
48
LCD Display
48
Figure 10 LED Indicators and Control Buttons
48
Figure 11 Numeric Keypad
49
Common LED Indicators and Control Buttons
50
Table 11 LED Indicators and Control Buttons
50
7 Wiring
54
Wiring Tables
54
Table 12 MGC Devices Addressable Loop Wiring Table
54
Table 13 NAC and Auxiliary Power Circuits Wiring Table
54
Table 14 Conventional Zone Module Input Circuit Wiring Table
55
Wire Routing
56
Figure 12 Wire Routing
56
Addressable Loop Wiring
57
Figure 13 Addressable Loop Wiring - Class B
57
Figure 14 Addressable Loop Wiring - Class a
57
NAC Circuit Wiring
58
Figure 15 Addressable Loop Wiring - Class X
58
Figure 16 NAC Circuit - Class B Wiring
59
Figure 17 NAC Circuit - Class a Wiring
59
Figure 18 RTI-1 Common Remote Trouble Indicator Wiring
60
Module and Devices Wiring
61
Figure 19 Wiring the Dialer
61
Figure 20 Connecting an FX-400 FACP to a 3G4010CF Interface Device Outside Canada
62
Figure 21 Connecting an FX-400 FACP to a SLE-LTEV or SLE-LTEA Interface Device Outside Canada
63
Figure 22 Wiring the PR-300 Polarity Reversal and City Tie Module
64
Power Supply Wiring
65
Table 15 Power Supply Electrical Ratings
65
Figure 23 Main Power Supply Wiring and Connections
66
Figure 24 Supervision of Auxiliary Supplies
67
System Checkout
68
Troubleshooting
68
8 Appendix A - Compatible Receivers
69
Table 16 Compatible DACR Receivers
69
9 Appendix B - Manual Panel Configuration
70
10 Appendix C - Reporting
75
Ademco Contact-ID FX-400 Series Event Codes
75
Table 17 Contact-ID Event Codes
75
Security Industries Association SIA Format Protocol FX-400 Series Event Codes
76
Table 18 SIA-DCS Event Codes
76
11 Appendix D - Specifications
77
FX-400 Fire Alarm Control Panel
77
Table 19 FX-400 Fire Alarm Control Panel Specifications
77
FX-400 System Modules and Annunciator Specifications
78
Table 20 FX-400 System Modules and Annunciator Specifications
78
12 Appendix E - Battery Calculations
79
Table 21 Recommended Batteries
80
13 Warranty and Warning Information
81
