SLC Integration - QX-mini and FleX-Net™ - Two Stage
4.2 Wiring
For SLC integration: Connect wire from preferred loop of FleX-Net™ to SLC terminal on QX-
mini Master.
Note: If system is comprised of a QX-mini Master and booster panels, only
the QX-mini Master must be wired with FACP.
4.2.1 SLC-Class A

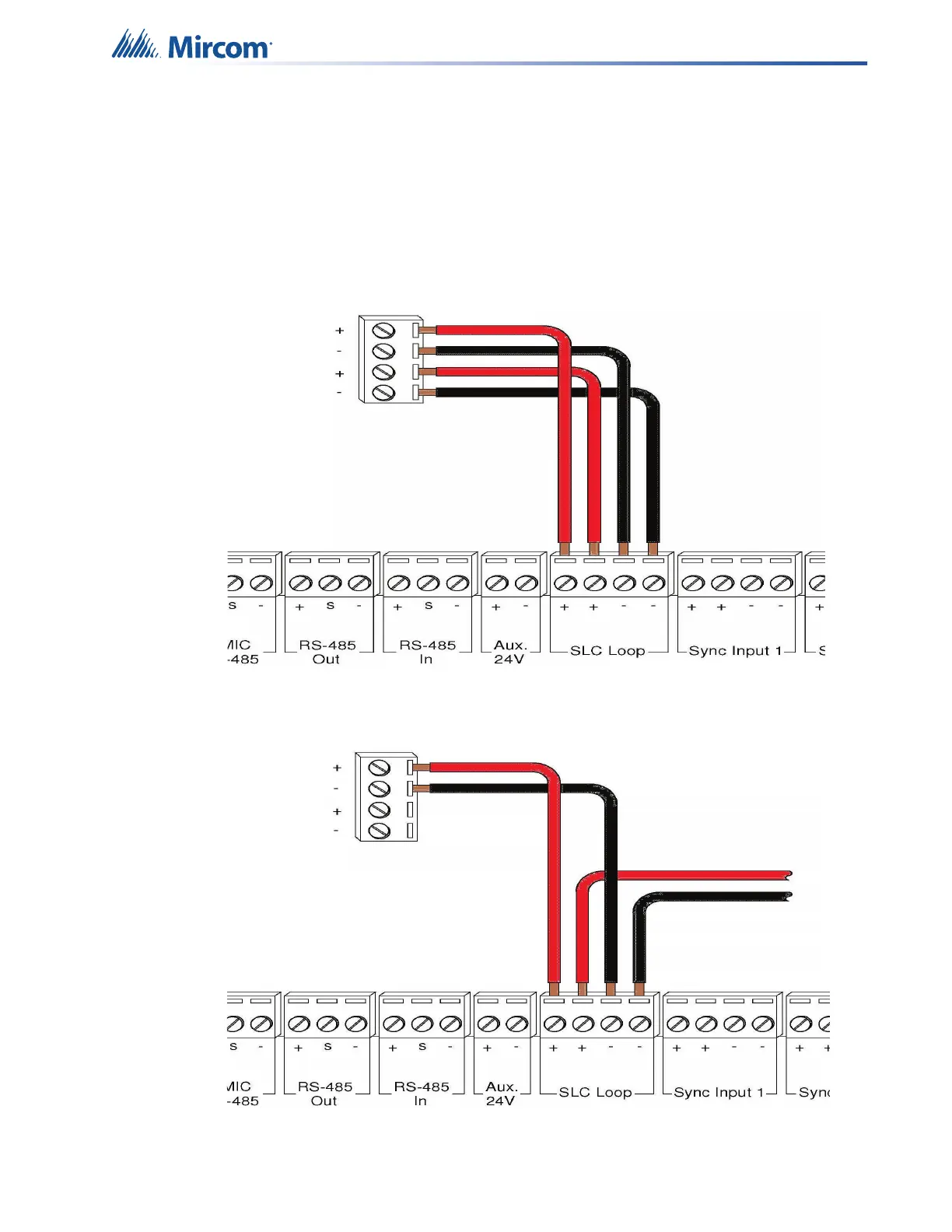

Figure 28 Class A wiring to connect FACP with QX-mini Master via SLC link
4.2.2 SLC-Class B
Figure 29 Class B wiring to connect FACP with QX-mini Master via SLC link
Note: If QX-mini system is required to follow sync from FACP, refer to below
