SLC Integration - QX-mini and FleX-Net™ - Two Stage
4.3 Configuration Steps
4.3.1 FleX-Net™ Configuration
1. Open FleX-Net™ configurator.
2. Create a new job or open an existing job.
3. Click on the loop that has been wired to SLC terminal on QX-mini Master.
4. Configure the loop as shown in the window below. See section 4.4 on page 26 for
details.
Note: These devices are integrated in QX-mini as “virtual devices” and do
not need to be physically installed on the loop. The number of “virtual
SLC devices” depends on your configuration – you can use as many
as your job requires.

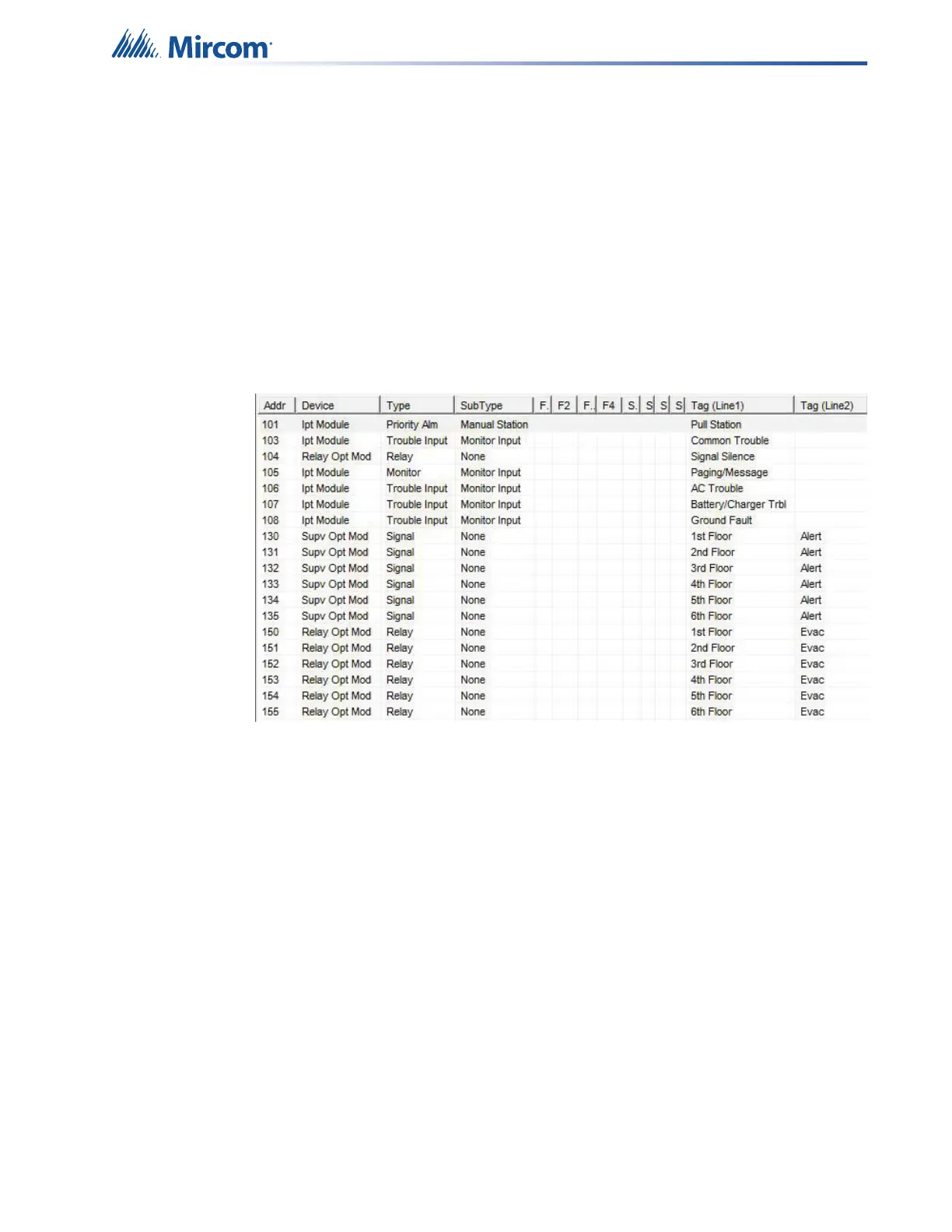

Figure 32 Configure supervised output module for alert stage and relay output
module for evac stage.
5. Ensure all the addresses are correct and job is validated. Connect to the FleX-Net™
panel and send the job.
To Next Page
