Relay Input - QX-mini and FX-3500
61
9.2 Wiring
For relay input integration: Connect the wire from a normally open relay contact to “relay 1” or
“relay 2” terminal on the QX-mini Master.
Note: If system is comprised of a QX-mini Master and booster panels, only
the QX-mini Master must be wired. Relay inputs on booster panels are
not configurable.

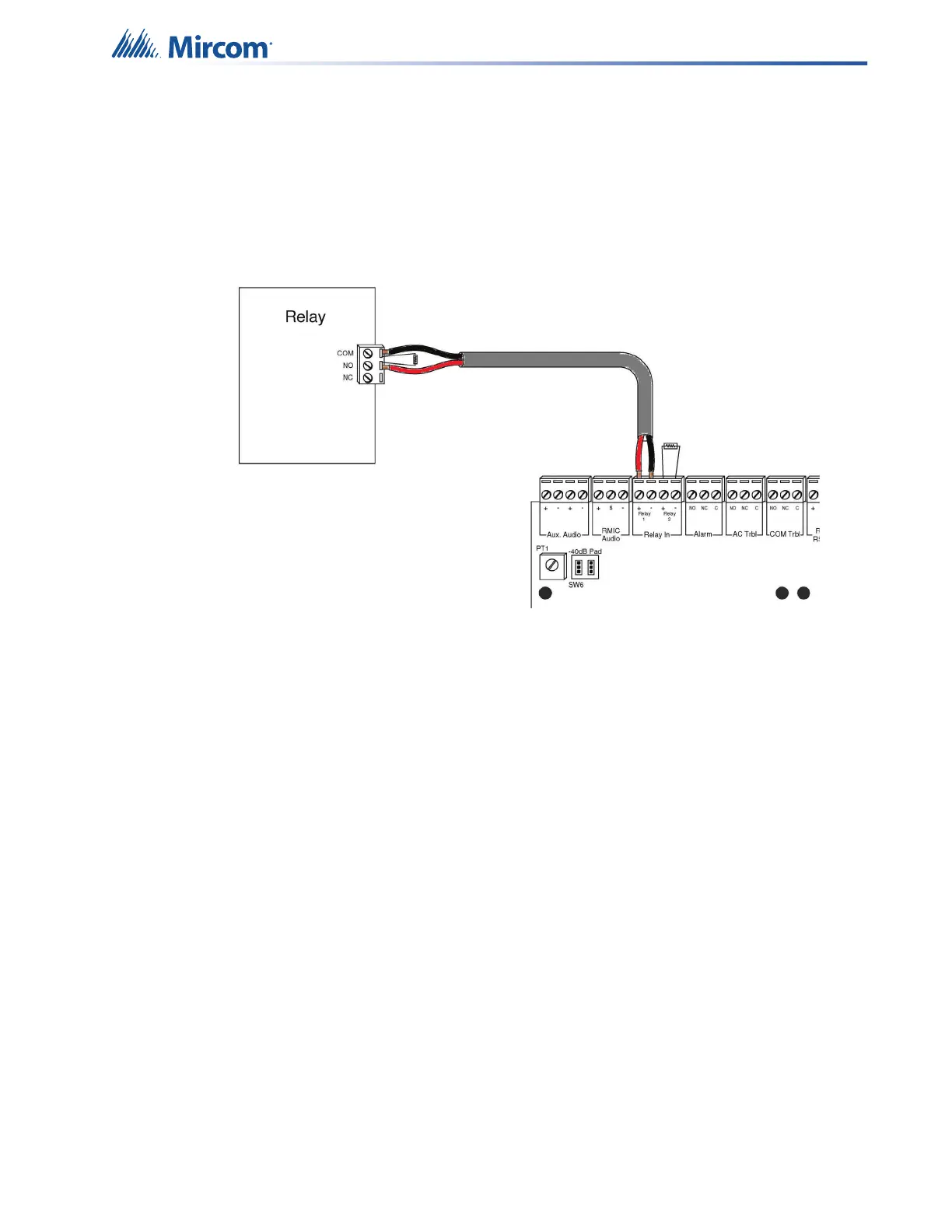

Figure 88 Relay wiring
