8.0 SLC Integration - QX-mini and
FX-3500 - Single Stage
8.1 Introduction
The QX-mini is designed to interface with Mircom FACPs over an SLC link where it is seen as
a number of “virtual devices.” This single link allows for zone-by-zone automatic control as well
as specific trouble reporting back to the FACP.

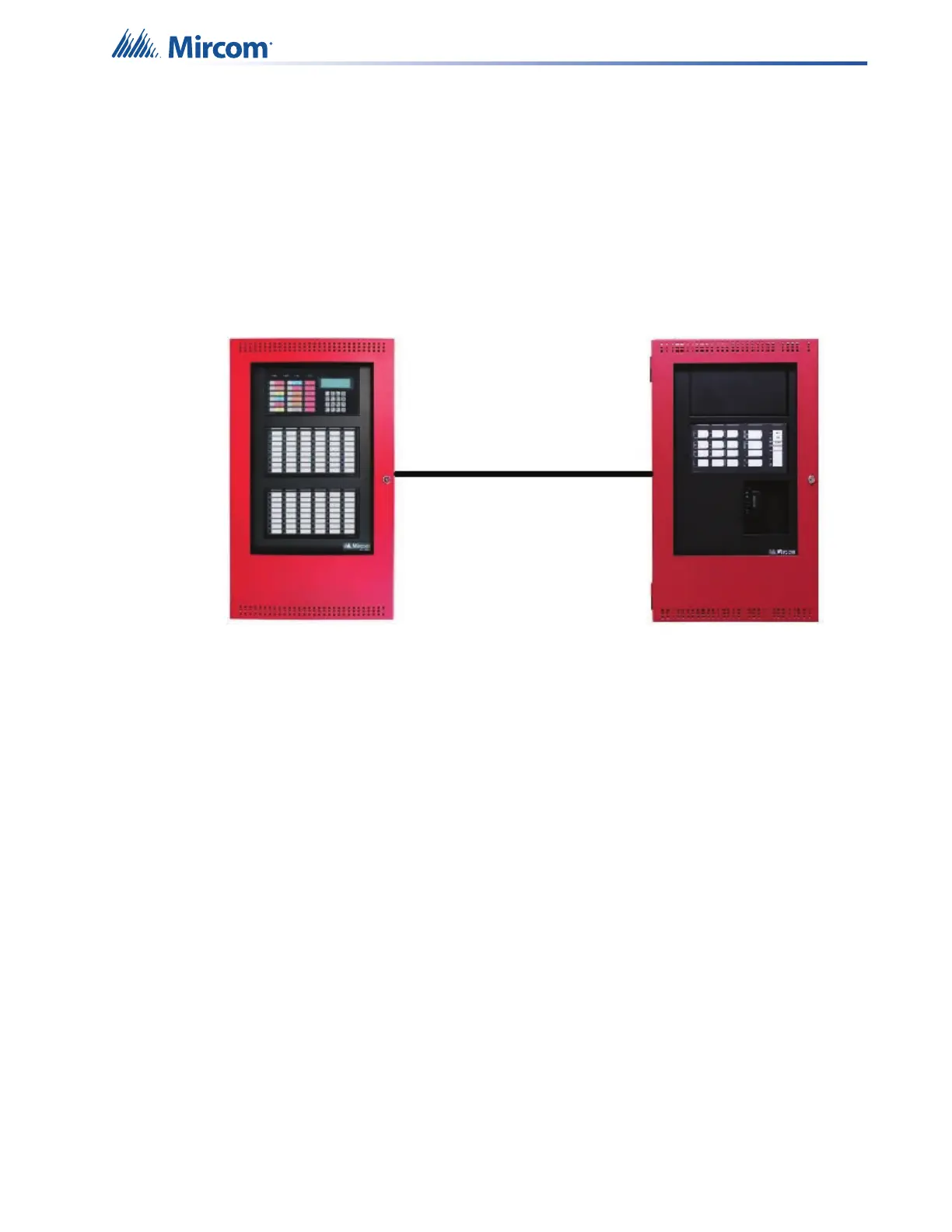

Figure 77 QX-mini and FX-3500
